SINOTRUK 6x4 Mist Dust Sprayer Water Bowser , Truck Mounted Sprayer EURO 2

Name: SINOTRUK 6x4 Mist Dust Sprayer Water Bowser Truck Mounted Sprayer EURO 2
Brand: SINOTRUK
Price: 209 USD

SINOTRUK 6x4 Mist Dust Sprayer Water Bowser , Truck Mounted Sprayer EURO 2 Manufactures

Brand Name : SINOTRUK

Place of Origin : Hubei, China

Price : CN¥209,437.23/sets >=1 sets

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Core Components : Engine, Bearing, Gearbox, Gear, Pump

Drive Wheel : 6x4

Fuel : Diesel

Transmission Type : Manual

Sprinkling Area (m) : > 16 m

Emission Standard : Euro 3

Engine Capacity : 6 - 8L

Dimensions (L x W x H) (mm) : 10987*2496*3115

Gross Vehicle Weight : 25000

Warranty : 1 Year

Weight (KG) : 13420 kg

color : optional

Tank material : Q235 Carbon Steel

Emission standard : Euro2

Tire : 12.00R20

Tank capacity : 20 cbm

Horse power : 300 HP

Transmission : 10-speed

Chassis Optional : SINOTRUK

Battery : 12V 8AH-12AH

Nozzle : 4 Centrifugal Nozzles

Applicable Industries : Manufacturing Plant, Farms, Construction works

Showroom Location : None

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Condition : New

Contact Now

SINOTRUK 6x4 LHD RHD Dust Suppression 40 meters water bowser truck mounted sprayer

Product Description

Dimension(L×W ×H)(unloaded)(mm)		10987×2496×3115
Wheel base (mm)		4600+1400
Max speed(km/h)(km/h)		90
Curb weight(kg)		13420
Loading Weight(kg)		17310
Engine (Steyr technology, made in China	Model	WP10.300E22,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling
	Fuel type	Diesel
	Power, max(kw/rpm)	220/2200 (300hp)
	Emission	EURO 2
Fuel tanker capacity (L)		400
Transmission	Model	HW19710,10 forward&2 reverse10
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
Steering system	Model	Bosch
Front axle	VGD95,drum
Rear axle	ST16
Tyre	12.00R20
Electrical system	Battery	2X12V/165Ah
	Alternator	28V-1500kw
	Starter	7.5Kw/24V
Cab	HOWO76 Standard cab, all-steel forward control
Equipment	Water pump, front and rear sprayer, back operation platform with water gun

Sprayer Type	QF 100 type
Process	High temperature spraying

Generator	150KW
Blower power	45kW (aluminum alloy double fan blade)
Diameter of wind cylinder	1000m
Liquid pump type	12T stainless steel multistage centrifugal pump
Pump motor power	11kW
Spray flow rate	100-200L/min
Working pressure	1.0-3.0MPa
Number of nozzles	Spray ring 80-100pcs
Nozzle material	Stainless steel
Range (static wind state)	Horizontal 100m
Fog spectrum range	50-15
Elevation and pitch angle	10~50 Double hydraulic (remote control)
Rotation angle	360° round-trip adjustable (remote control)
Control mode	8-button remote control
Power supply	AC/380/three-phase four-wire
With programming	PLC software
Filtering device	200 mesh filter

SINOTRUK 6x4 Mist Dust Sprayer Water Bowser , Truck Mounted Sprayer EURO 2

Packaging & Shipping

SINOTRUK 6x4 Mist Dust Sprayer Water Bowser , Truck Mounted Sprayer EURO 2

Canton Fair

SINOTRUK 6x4 Mist Dust Sprayer Water Bowser , Truck Mounted Sprayer EURO 2

HUBEI RUNLI SPECIAL AUTOMOBILE CO.,LTD was founded in 1997, covers an area of 1400 square meter, which is the first domestic private enterprises entering the special automobile industry. The company has focused on all kinds of special automobile R & D, manufacturing, sales and service, two special automobile production lines of the company has the most advanced tank trucks and multi-function rescue fire trucks.
The company is special automobile production base of Dongfeng, Jiefang, Foton, Sino truck, Shanxi Auto etc, and is the strategic partners with the Sinopec and PetroChina.

If you have any questions or need much more information, pls do not hesitate to contact with me.

More specs , photos, price, delivery time and other need,

please contact with Kilen.

Hotline: 0086 155 8688 7678

QQ number: 676459215

Welcome to visit our company! Suizhou city, Hubei Province.

Product Tags:

SINOTRUK 6x4 Truck Mounted Sprayer

EURO 2 Mist Dust Sprayer Truck

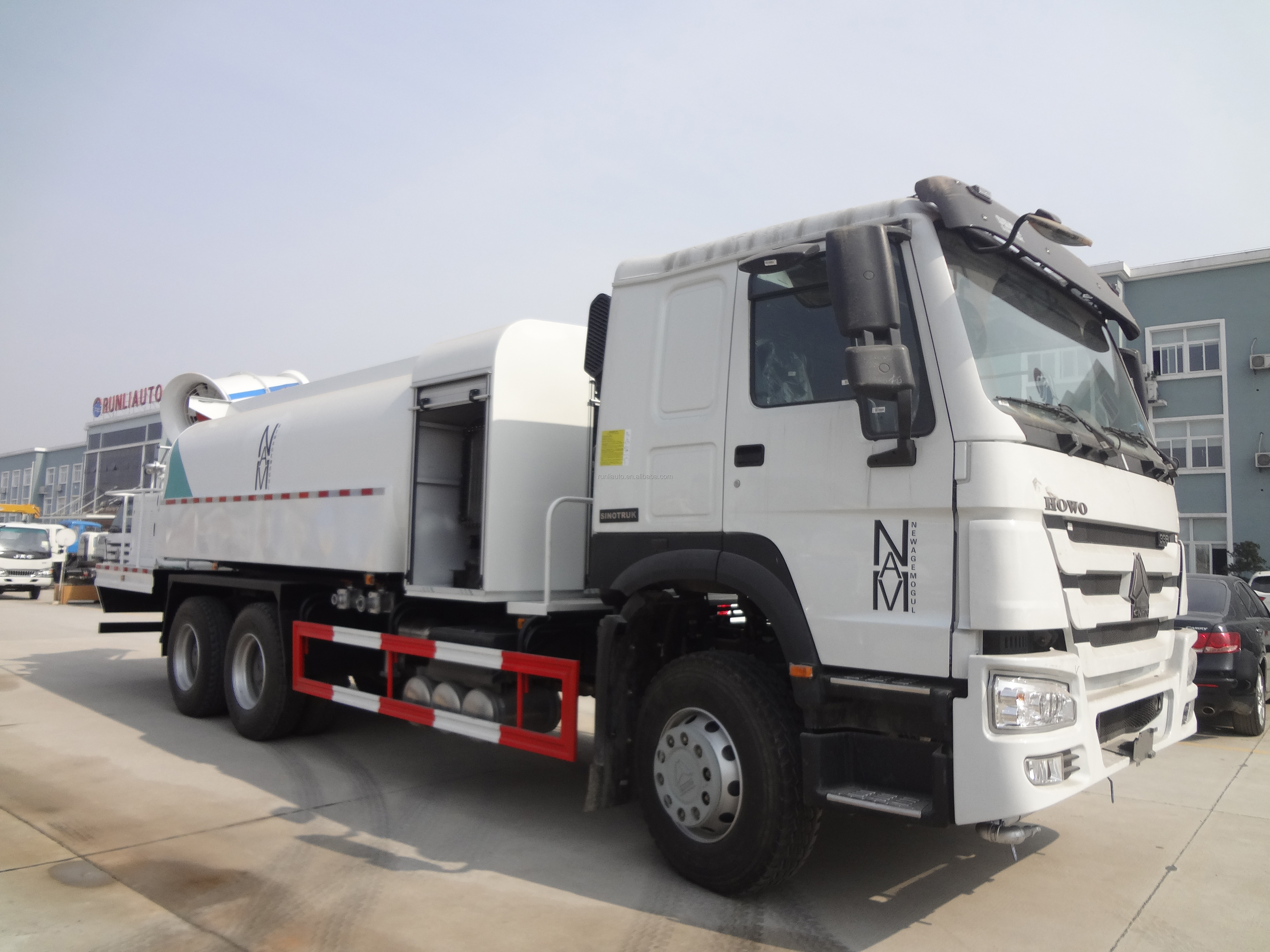

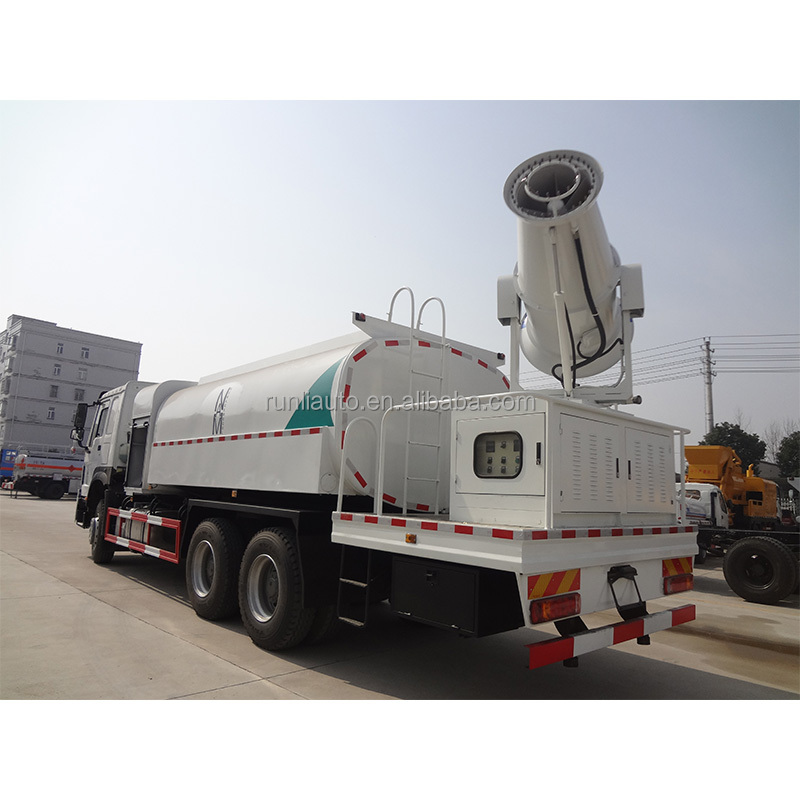

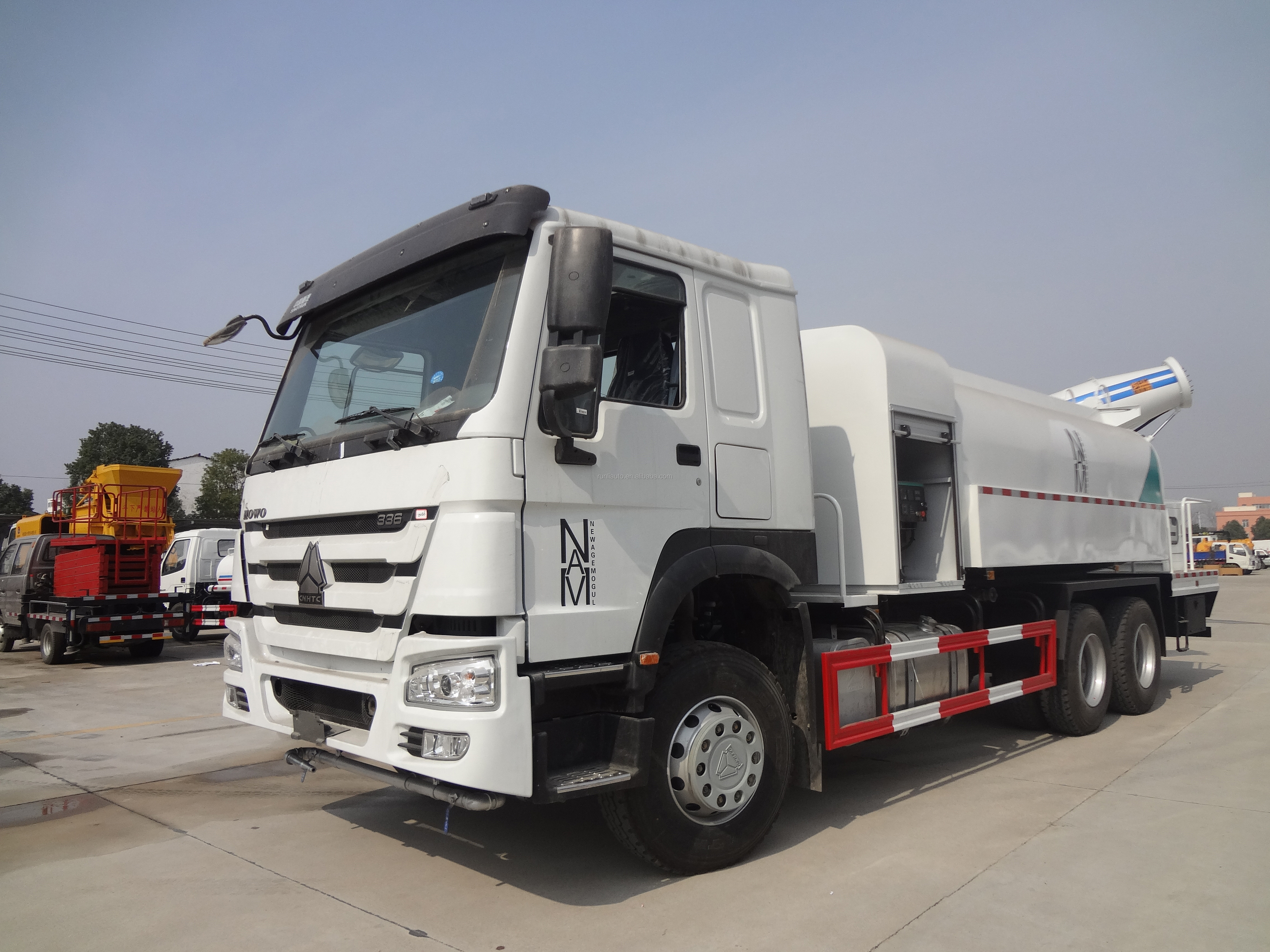

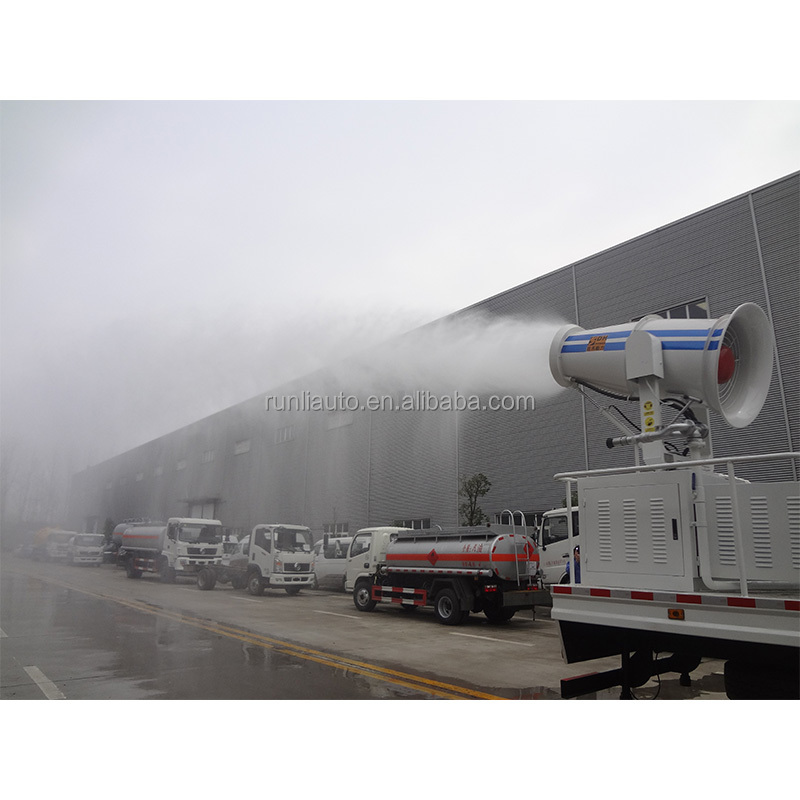

SINOTRUK 6x4 Mist Dust Sprayer Water Bowser , Truck Mounted Sprayer EURO 2 Images
