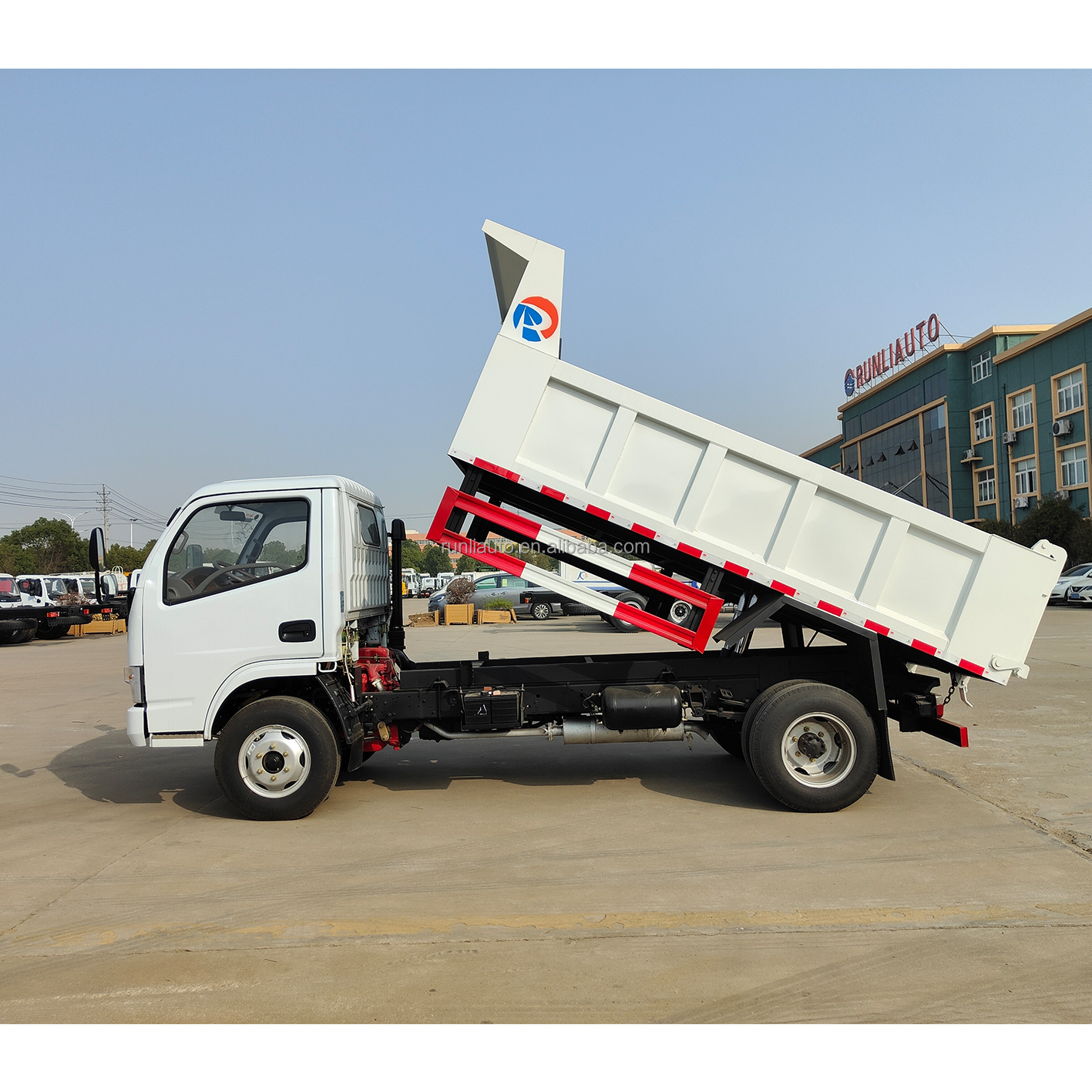

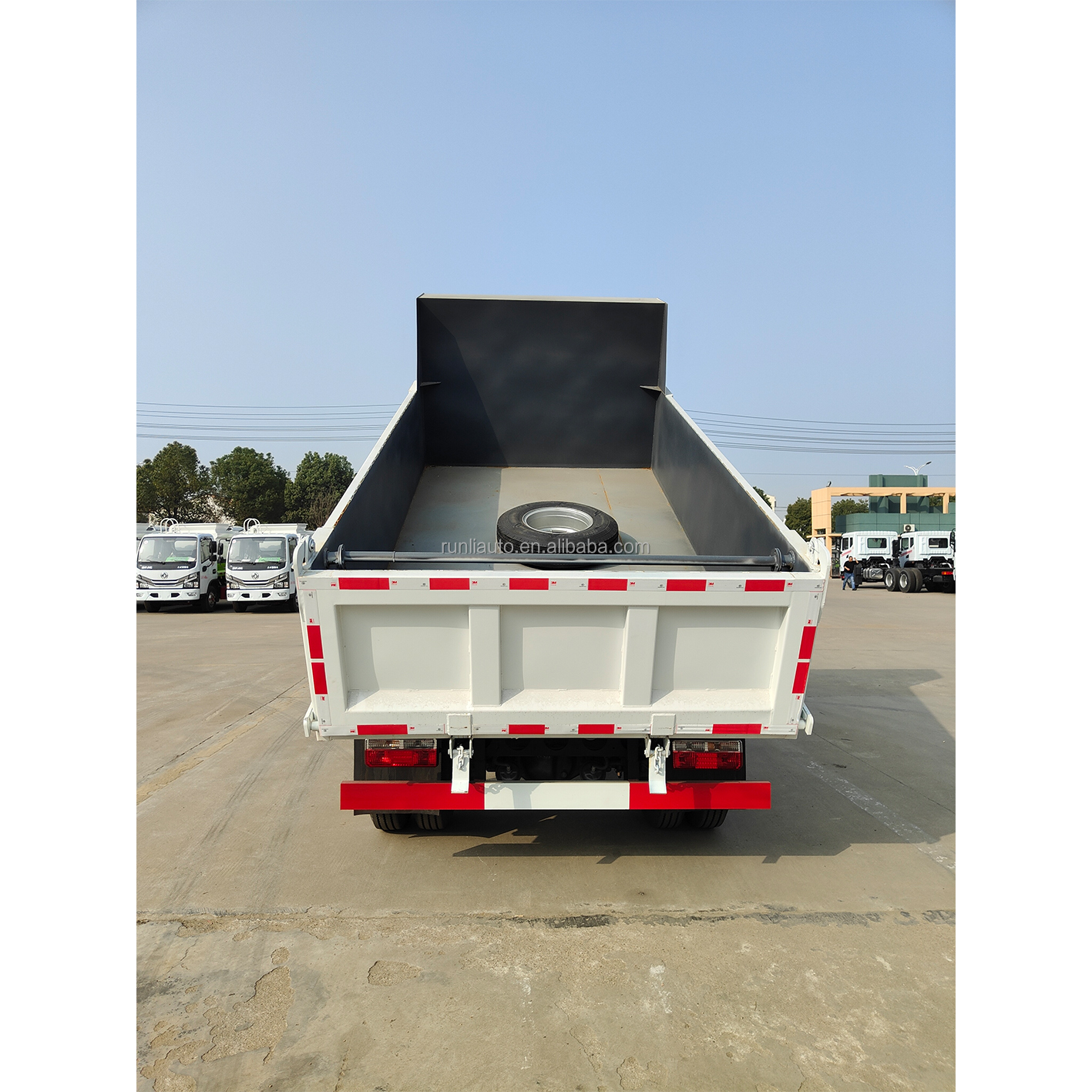

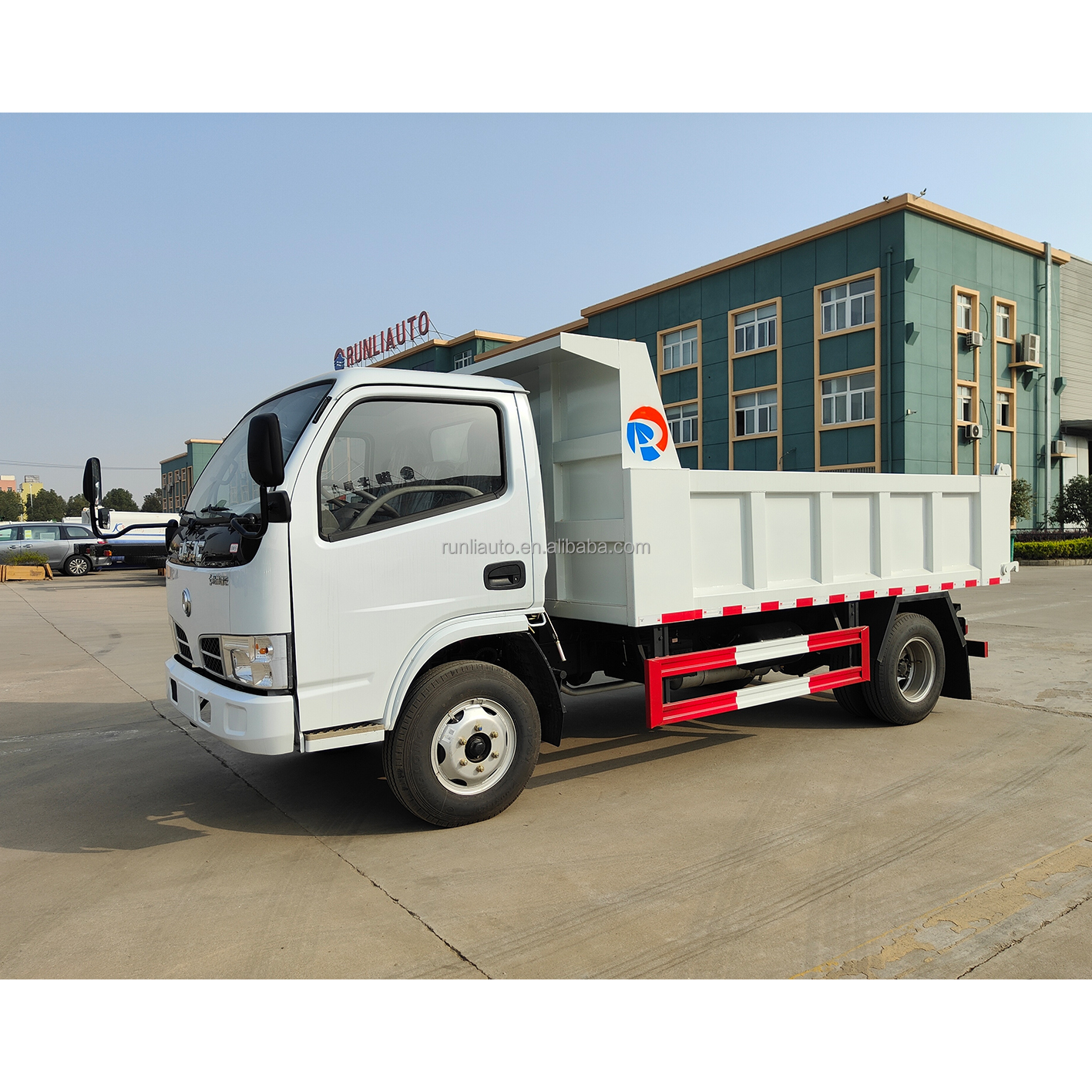

Mini 4x2 Light Duty Dump Truck Small 5 Ton Tipper Dumper Truck Euro 3 Emission

Brand Name : SCS

Place of Origin : Hubei, China

Packaging Details : Standard export package

Supply Ability : 500 Unit/Units per Month

Price : CN¥64,353.23-79,537.70/units

Condition : New

Steering : Left

Horsepower : 120

Emission Standard : Euro 3

Segement : Light truck

Market Segement : Urban construction muck transportation

Fuel Type : Diesel

Engine Capacity : 4 - 6L

Cylinders : 4

Gear Box Brand : WLY

Transmission Type : Manual

Forward Shift Number : 5

Maximum Torque(Nm) : ≤500Nm

Dimensions (L x W x H) (mm) : 6980*2170*2350

Cargo Tank Dimension : 3550x2050x700

Cargo Tank length : ≤4.2m

Gross Vehicle Weight : 9390

Capacity (Load) : 1 - 10t

Drive Wheel : 4X2

Passengers : 3

Rear Camera : None

ABS(Antilock Braking System) : None

ESC(Electronic Stability Control System) : None

Touch Screen : None

Window : Manual

Air Conditioner : Manual

After-sales Service Provided : Video technical support, Online support, Free spare parts

color : optional

Loading capacity : 3-5t

WHEEL base (mm) : 3300mm

Engine power : 70KW

Origin : China Mailand

Tire : 7.00R16

Cabin : One Raw

Chassis brand : Optoinal

Horse power : 95hp

Port : Shanghai/Wuhan/Tianjin/Guangzhou

Contact Now

Mini 4x2 light duty dumper trucks China small 5 ton dump trucks for sale

Product Description

At present Our Truck with Euro 2 and Euro 3 Emission Standard

Drive model:4*2,6*4,8*4;

Main technical parameter

Truck origin

Hubei Runli special automobile Co.,Ltd.

Truck name

 mini dumper

Product No.

SCS1090T9ADJ3AC

Max. Total mass(kg)

9400

Dumper body thickness

Side 3mm

Bottom 4mm

Rated Loading mass(kg)

5405

External dimensions (L×W×H)(mm)

6695 x 2180 x2350

Kerb mass(kg)

3800

Cargo dimensions

4000 x 2000 x 600

(L×W×H)(mm)

Cab seats

3+3

Number of tires

6+1 spare tire

Approach/departure angle

20/11

F/R overhang

1180/1865

Number of axles

2

Wheelbase(mm)

3800

Axle loading(kg)

2907/6493

Max speed(km/h)

85

chassis technical parameter

brand

Dongfeng

Tire specification 7.5-16 nylon tire

Fuel of type

Diesel

Transmission: 5 speed

Chassis number

EQ1090T9ADJ3AC

Emission standards

Euro 3

Engine model

manufacture

Displacement(ml)

CY4102-E3C

Dongfeng Chaoyang Diesel engine Co., ltd

3865ml/91kw

Mini 4x2 Light Duty Dump Truck Small 5 Ton Tipper Dumper Truck Euro 3 EmissionMini 4x2 Light Duty Dump Truck Small 5 Ton Tipper Dumper Truck Euro 3 EmissionMini 4x2 Light Duty Dump Truck Small 5 Ton Tipper Dumper Truck Euro 3 Emission



Mini 4x2 Light Duty Dump Truck Small 5 Ton Tipper Dumper Truck Euro 3 EmissionMini 4x2 Light Duty Dump Truck Small 5 Ton Tipper Dumper Truck Euro 3 EmissionMini 4x2 Light Duty Dump Truck Small 5 Ton Tipper Dumper Truck Euro 3 EmissionMini 4x2 Light Duty Dump Truck Small 5 Ton Tipper Dumper Truck Euro 3 Emission

Our products scope:

1) Trucks,dump trucks and tipper trucks Heavy duty trucks; side wall trucks; towing trucks; agricultural trucks; cement mixer trucks; bulk cement tank trailers; refrigerator trucks; watering truck; chemical tank trucks; fire truck; garbage truck; wrecker; box truck; oil truck; truck crane; truck mounted aerial work platform and so on.

2) Special-purpose vehicles Trailer; various semi-trailers; flatbed trailers; skeleton trailers; sidewall trailers; semi-container trailers; goose low bed trailers; fuel tank trailers.

Making orders:

If you are establishing business with us in this line, please let us know your specific requirements, meanwhile we produce products according to your descriptions.

We assure your order from you will have our immediate produce and prompt delivery.

We also can supply other brand, Eg: Dongfeng(DFAC),FOTON(FORLAND),FAW,JMC,IVCEO(YUEJIN),ISUZU,NISSAN,SINOTRUCK,SHACMAN,NORTH BENZ..

If you have more requirment ,please kindly let Kilen Chen know
