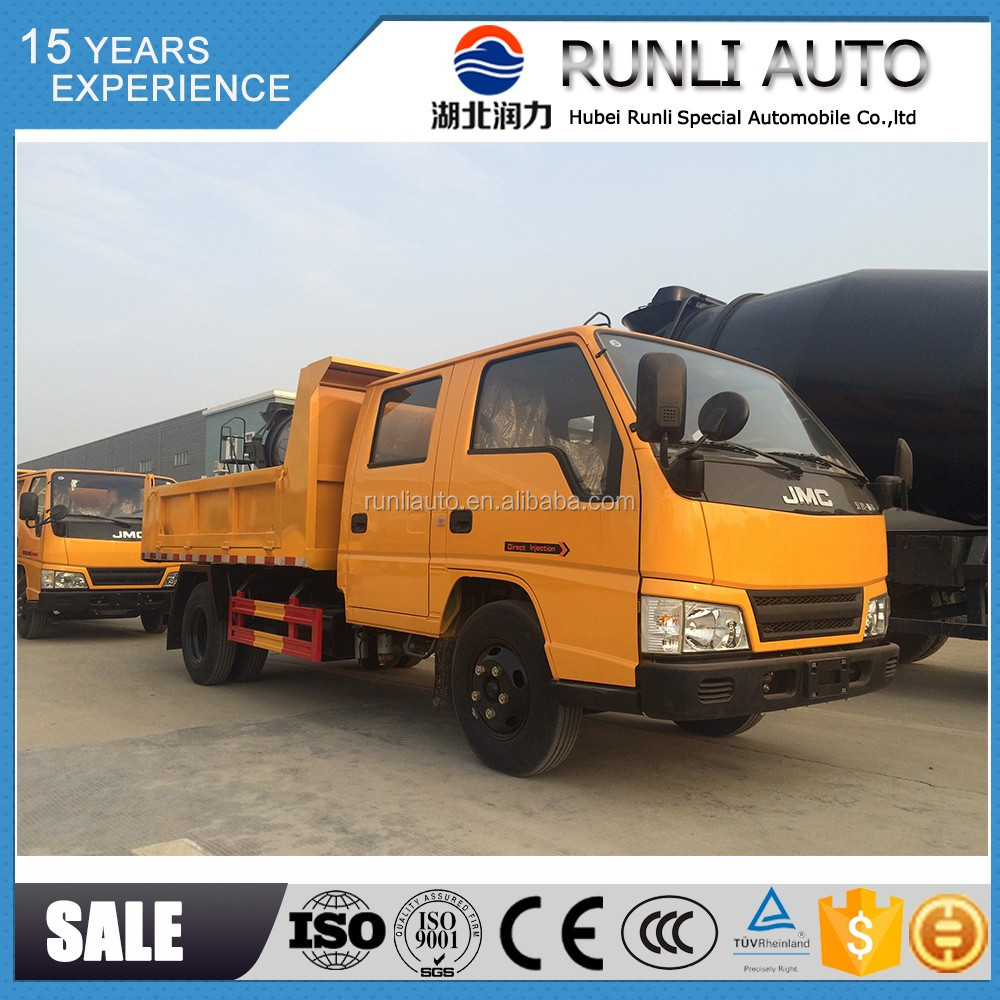

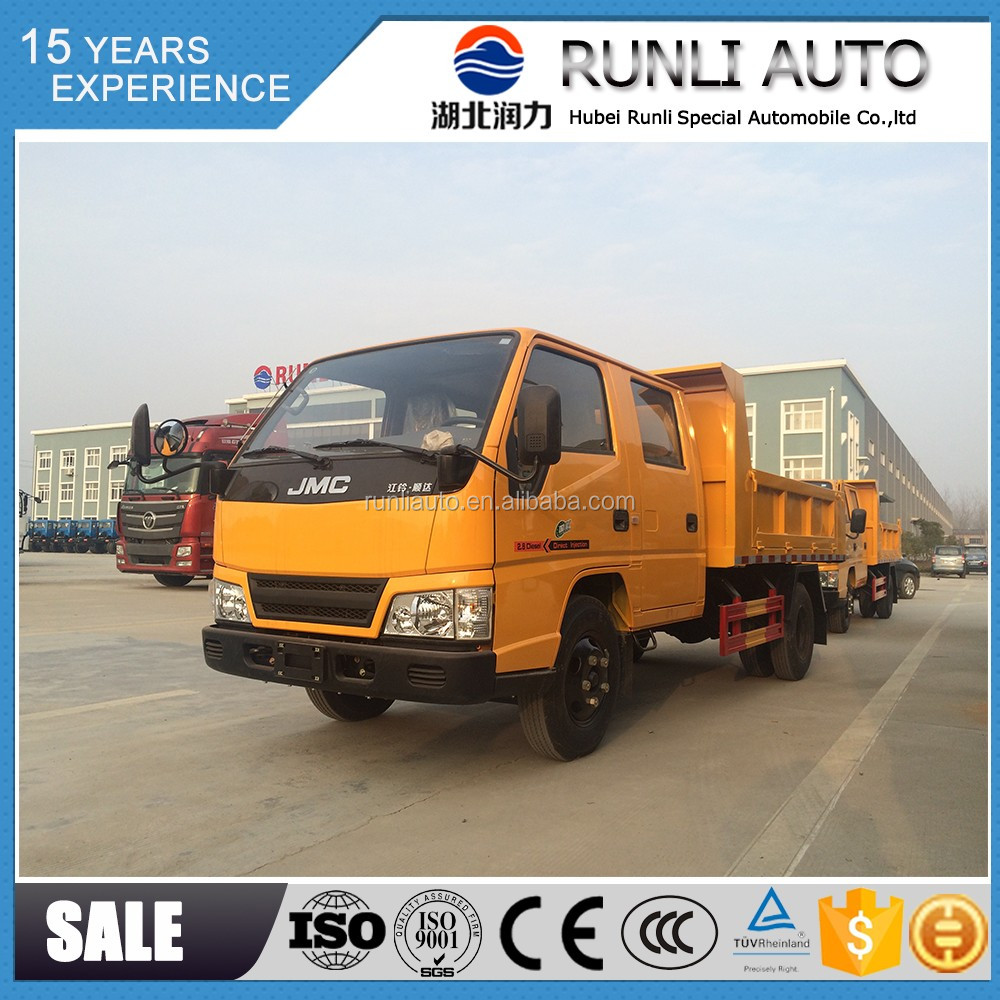

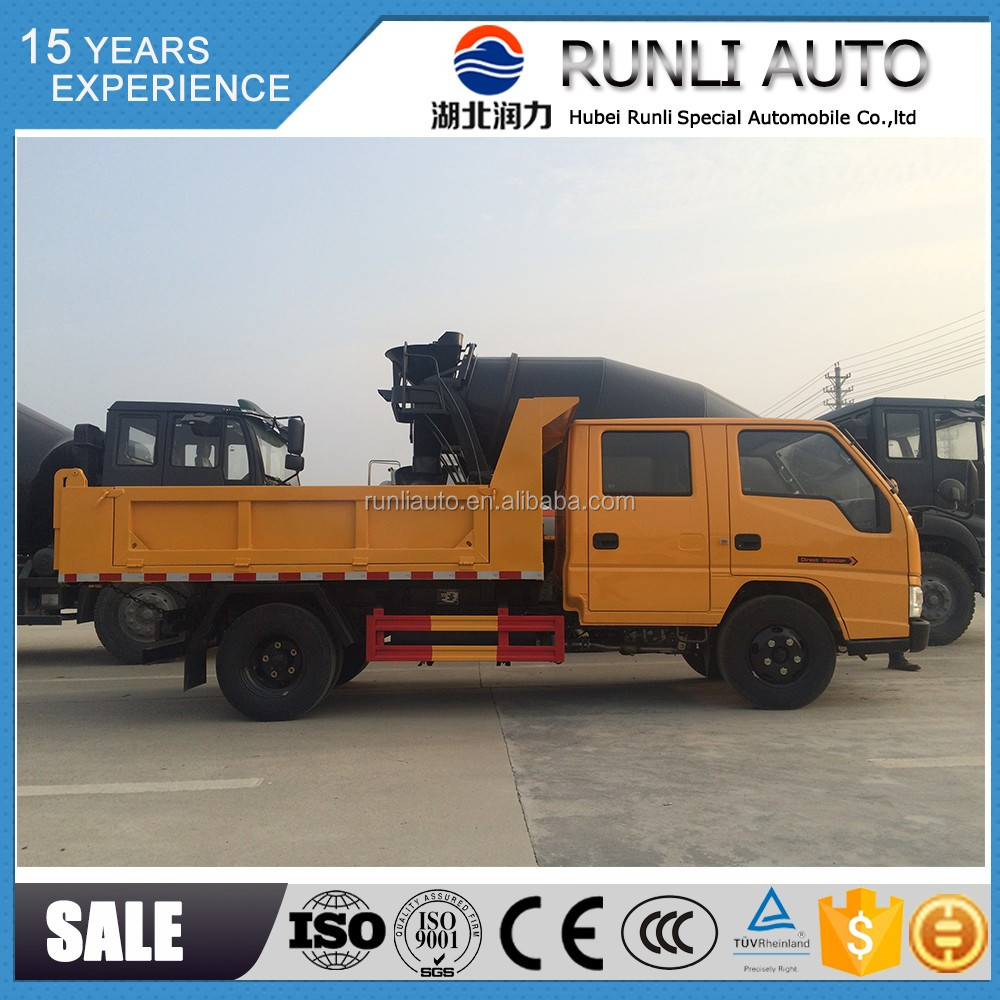

JMC 5 Tons Dumper Truck Double Cabin Tipper Truck SCS5040ZLJJ4

Product Categories

Hubei Runli Special Automobile Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : SCS

Model Number : SCS5040ZLJJ4

Place of Origin : Hubei, China

Packaging Details : Standard export package

Supply Ability : 500 Unit/Units per Month

Price : CN¥64,353.23-79,537.70/units

Condition : New

Horsepower : 108

Emission Standard : Euro 4

Fuel Type : Diesel

Engine Capacity : 4 - 6L

Transmission Type : Manual

Dimensions (L x W x H) (mm) : 5950*1930*2100

Gross Vehicle Weight : 4495

Capacity (Load) : 1 - 10t

Drive Wheel : 4X2

color : optional

skype : kilen.automobile

certification : CCC, ISO

Driving type : 4x2 6x4 8x2 8X4

Port : Shanghai/Wuhan/Tianjin/Guangzhou

Contact Now

JMC 5 tons dumper double cabin JMC tipper truck

At present Our Truck with Euro 2 and Euro 3 Emission Standard

Drive model:4*2,6*4,8*4;

Main technical parameter
Truck origin	Hubei Runli special automobile Co.,Ltd.
Truck name	JMC dump truck	Product No.	SCS5040ZLJJ4
Max. Total mass(kg)	4495	Tank capacity(L)	--
Rated Loading mass(kg)	1200	External dimensions (L×W×H)(mm)	5950X1930X2100(mm)
Kerb mass(kg)	2970	Cargo dimensions	3140X1780X520(mm)
		(L×W×H)(mm)
Cab seats	3+3	Loading mass Utilization factor
Approach/departure angle	20/18.5	F/R overhang	1015/1615
Number of axles	2	Wheelbase(mm)	3360
Axle loading(kg)	2200/3590	Max speed(km/h)	100

chassis technical parameter
Chassis model	JX1041TSG24	Number of tire 6+1(free spare tire)
brand	JMC	Tire specification 7.00R16LT
Fuel of type	Diesel	thickness 4mm
Emission standards	Euro 4
Engine model	manufacture		Displacement(ml)
JX493ZLQ3A	Jiangling Motor group		2771ml/80kw

JMC 5 Tons Dumper Truck Double Cabin Tipper Truck SCS5040ZLJJ4

Packaging & Shipping

JMC 5 Tons Dumper Truck Double Cabin Tipper Truck SCS5040ZLJJ4

JMC 5 Tons Dumper Truck
