Dongfeng 4x2 10 Ton Dump Truck Euro 3 Standard Construction Tipper Truck

Brand Name : SCS

Place of Origin : Hubei, China

Packaging Details : Standard export package

Supply Ability : 500 Unit/Units per Month

Price : CN¥93,276.03/units >=1 units

Condition : New

Horsepower : 130

Emission Standard : Euro 3

Fuel Type : Diesel

Engine Capacity : < 4L

Transmission Type : Manual

Dimensions (L x W x H) (mm) : 7350*2450*2840

Gross Vehicle Weight : 16000

Capacity (Load) : 1 - 10t

Drive Wheel : 4X2

After-sales Service Provided : Video technical support, Return and Replacement, Online support, Free spare parts

color : optional

certification : CCC

Engine : Yuchai

Transmission : Manual Transmission

Loading capacity : 10 Tons

Horse power : 130

Dump Box Thickness : Bottom:4mm Side:3mm

Warranty : 1 Years/2000 Working Hours

Cab : Single Sleeper

Port : Shanghai/Wuhan/Tianjin/Guangzhou

Contact Now

Promotion Dongfeng 4x2 10 ton dump truck

Product Description

1. For Ttype lifting series adopted by the series product, cylinder and hydraulic accessories made by domestic famous manufacturers are adopted, for the former top lifting series, Qingzhuan cylinders are adopted, for the former top lifting system, is uses world famous brand of Haiwo Cylindersand selects famous hydraulic parts with high-quality both at home and abroad, sub-frame and the beam of van use high- quality channel steel, and the vans are formed with dustpan and rectangular two shapes. The products have the feature of high rigidity and lifting
2. The trucks are classified as ore bucket-type compartment, rectangular compartment, U-type compartment, and adopt high-strength low-alloy structural steel plate for better impact resistance, they are suitable for loading and unloading ores and large stones.
3. The Lifting devices, manual control and air control devices of both T-type and F-type of forward and pushing system can be operated easily and conveniently.
4. With new type lifting device, loads on each component are more reasonable, and the pressures features of the hydraulic system are excellent, the cylinder rise-off accident is remedied effectively while the viscous cargo is dumping, and the lifting reliability is improved greatly.
5. With wide rear structure, the strength is stronger. The lifting rearbase design enables higher stability in horizontal direction
6. The trucks are applicable to all kinds of bulk material transportation of railways, waterways, port facilities, road facilities and engineering construction.

Chassis	Chassis model		EQ1108KJ
	Drive mode		4X2
	Tire type		9.00 nylon tire
	Brake system		Air brake
	Steering system		Power steering,LHD
Engine	Model		YC130 33
	Horsepower (kw/Hp)		96/130
	Displacement(ml)		4214
	Emission standard		Euro 3
	Description		In-line,4 cylinders,turbo charged,water cooled,inter cooled,diesel engine
Gearbox	Description		Manual,5 forward &1 reverse gears
Cabin	Description		Classic one and half rows,standard configuration,with single sleeper,3 passengers allowable.A/C optional (+200USD)
Main parameter	Dimension	Overall dimension	7350×2450×2840mm
		Wheelbase	3950mm
		Cargo box	45002200800mm
	Weight	Curb weight	5805Kg
		Load weight	10000Kg
	Leaf spring No.		8/10+7
	Approaching/Departure Angle(°)		25/15
	Front/Rear suspension(mm)		1205/1675
	Front/Rear track(mm)		1900/1800
	Max speed(km/h)		90
	Front/Rear axle load (kg)		3600/8000
Box	Dimension		45002200800mm
	Thickness		Side 3mm, floor 4mm high quality steel
	Tipper		Double top

Dongfeng 4x2 10 Ton Dump Truck Euro 3 Standard Construction Tipper Truck

Packaging & Shipping

Packaging: Naked, waxing on ro-ro or bulk ship or by 20GP, 40GP, 40HQ, 40FR and so on;

Payment :30% deposit by T/T,before leaving factory should pay the 70% balance by T/T;

Loading port & border:

Shanghai,Tianjin,Guangzhou,Qingdao,Erenhot,Horgos or according to your order;

Our Services

Our service

1. Answer your question within 24 hour.

2. one year of warranty since bill of lading on board date
3. Provide English operation manual or video

4. Free training in our factory if customer need.

Our products scope:

1) Trucks,dump trucks and tipper trucks

Heavy duty trucks; side wall trucks; towing trucks; agricultural trucks; cement mixer trucks; bulk cement tank trailers; refrigerator trucks; watering truck; chemical tank trucks; fire truck; garbage truck; wrecker; box truck; oil truck; truck crane; truck mounted aerial work platform and so on.

2) Special-purpose vehicles

Trailer; various semi-trailers; flatbed trailers; skeleton trailers; sidewall trailers; semi-container trailers; goose low bed trailers; fuel tank trailers.

Making orders:

If you are establishing business with us in this line, please let us know your specific requirements, meanwhile we produce products according to your descriptions.

We assure your order from you will have our immediate produce and prompt delivery

4x2 10 Ton Dump Truck

Dongfeng 4x2 10 Ton Dump Truck

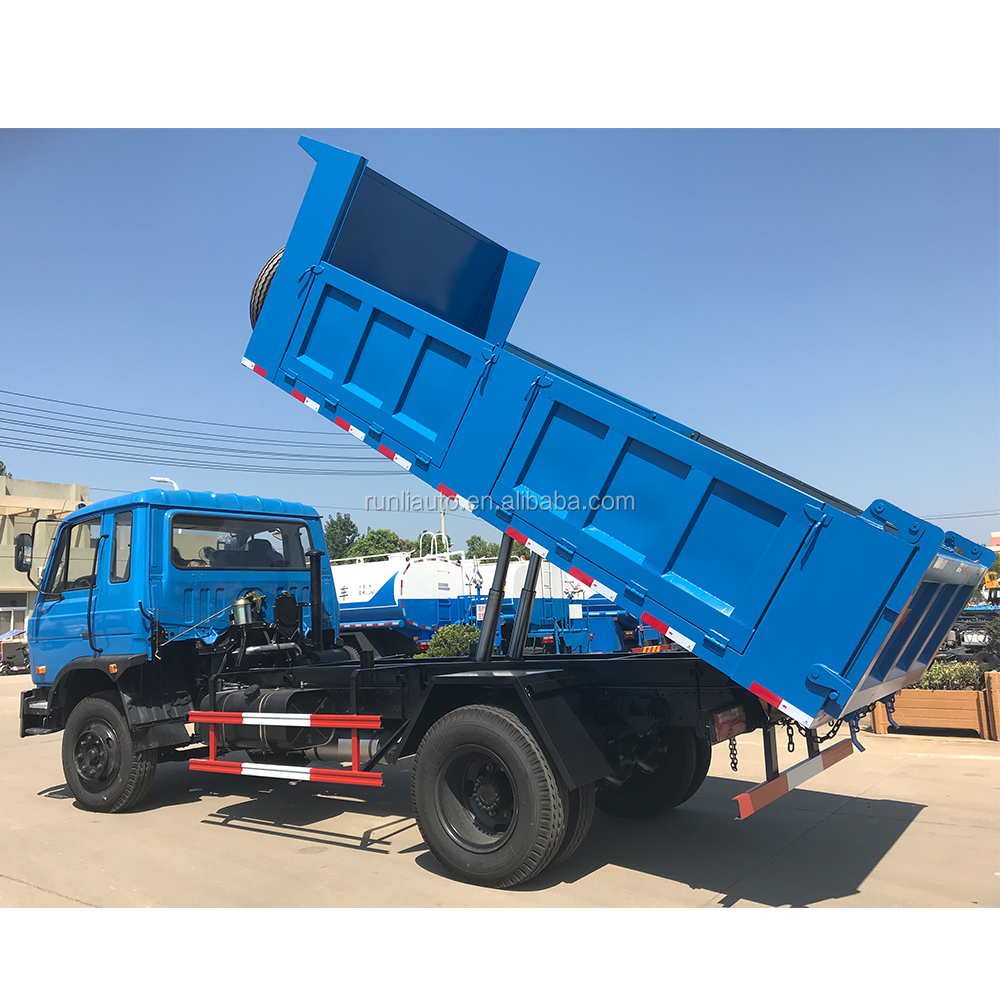

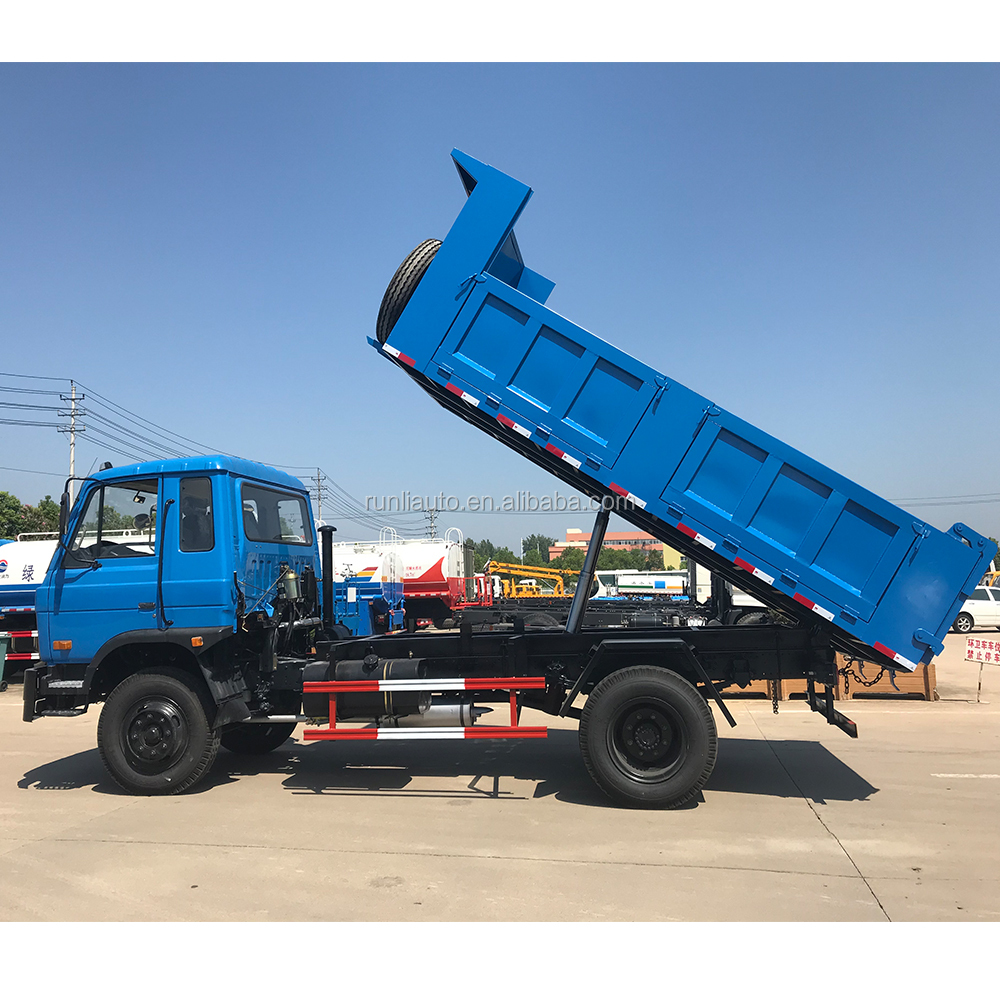

Dongfeng 4x2 10 Ton Dump Truck Euro 3 Standard Construction Tipper Truck Images
