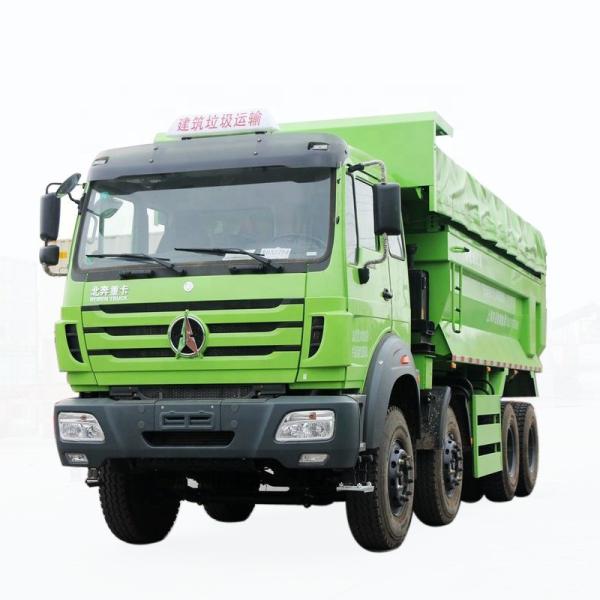

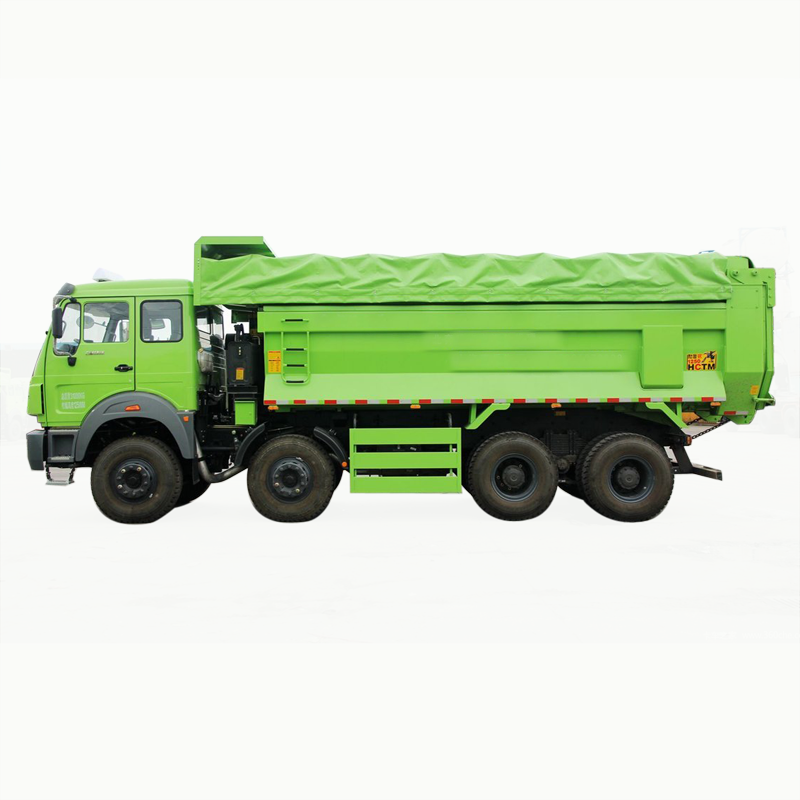

BEIBEN 8X4 Dump Truck Tipper Truck Mobile Discharge Truck

Condition : New

Steering : Left

Horsepower : 251 - 350hp

Emission Standard : Euro 4

Brand Name : Beiben

Place of Origin : Hubei, China

Segement : Heavy truck

Market Segement : Engineering transportation

Fuel Type : Diesel

Engine Capacity : > 8L

Cylinders : 6

Transmission Type : Manual

Forward Shift Number : 12

Reverse Shift Number : 2

Maximum Torque(Nm) : 1500-2000Nm

Cargo Tank Dimension : 6400x2300x1250mm

Cargo Tank length : 6.2-8m

Gross Vehicle Weight : ≥30T

Capacity (Load) : 11 - 20T

Fuel Tank Capacity : 300-400L

Drive Wheel : 8X4

Passengers : 6

Driver's Seat : Normal

Rear Camera : None

ABS(Antilock Braking System) : Yes

ESC(Electronic Stability Control System) : None

Touch Screen : None

Window : Manual

Tire Number : 12

After-sales Service Provided : Onsite Installation, Video technical support, Field installation, commissioning and training, Online support

Color : Customer's Request

Price : CN¥108,460.50/units 1-17 units

Contact Now

BEIBEN 8X4 Dump Truck Tipper Truck Mobile Discharge Truck

Announcement model: ND33103D28J
Driving form: 8X4
Wheelbase: 1950+2800+1450mm
Body length: 9.28m
Body width: 2.5 m
Body height: 3.48 m
Front wheel base: 2045mm
Rear wheel base: 1872mm
Vehicle weight: 14.765 tons
Rated load: 16.105 tons
Total mass: 31 tons
Tonnage class: Heavy truck
Approach Angle: Thirty-three degrees
Departure Angle: 25 degrees
Market segments: Urban construction debris
Engine type: Weichai WP10.336E40
Engine brand: Weichai
Number of cylinders: 6-cylinder
Fuel Type: Diesel oil
Displacement: 9.726 L
Emission standard: Euro IV
Maximum horsepower: 336 horsepower
Maximum output power: 247kW
Maximum torque: 1500N·m
Maximum torque speed: 1300-1600rpm
Rated speed: 1900rpm
Engine form: Water-cooled, four-stroke, with exhaust brake, direct injection, supercharged intercooling
Container length: 6.4 m
Container width: 2.3 m
Container height: 1.25 m
Container form: Back dump type
Transmission model: Fast 12JS200TA
Transmission brand: Fast
Forward gear: 12th speed
Number of reversals: two
Tank capacity: 300L
Rear axle allowable load: 18000kg
Speed Ratio: 5.263
Number of spring pieces: 2012/12/13
Tire Specifications: 12.00 R20
Number of tires: twelve
