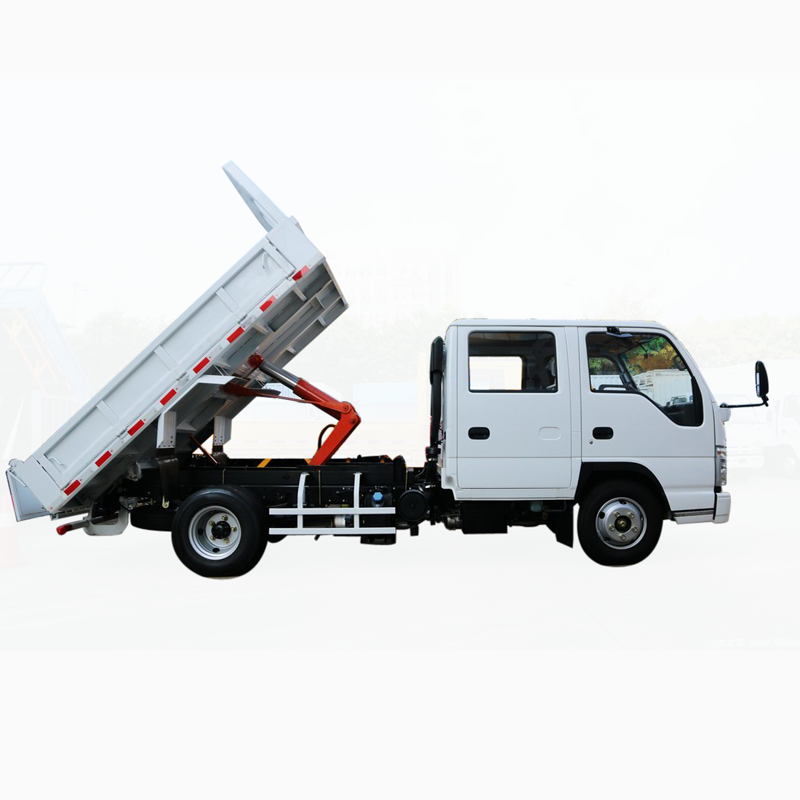

ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation

Name: ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation
Brand: ISUZU
Price: 78 USD

ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation Manufactures

Brand Name : ISUZU

Place of Origin : Hubei, China

Price : CN¥78,814.63/units 1-17 units

Condition : New

Steering : Left

Horsepower : 98

Emission Standard : EURO 5

Segement : Light truck

Market Segement : Highway transportatopn

Fuel Type : Diesel

Engine Capacity : < 4L

Cylinders : 4

Gear Box Brand : ISUZU

Transmission Type : Manual

Forward Shift Number : 5

Reverse Shift Number : 1

Maximum Torque(Nm) : ≤500Nm

Dimensions (L x W x H) (mm) : 5900x19450x2320mm

Cargo Tank Dimension : 3130x1780x380mm

Cargo Tank length : ≤4.2m

Gross Vehicle Weight : ≤5T

Capacity (Load) : 1 - 10t

Fuel Tank Capacity : ≤100L

Drive Wheel : 4X2

Passengers : 5

Rear Camera : None

Cruise Control : None

ABS(Antilock Braking System) : Yes

ESC(Electronic Stability Control System) : None

Touch Screen : None

Tire Number : 6

After-sales Service Provided : Onsite Installation, Video technical support, Field installation, commissioning and training, Online support, Free spare parts

Color : Customer's Request

Steering position : Customer's Request

Contact Now

ISUZU 4X2 Dumper Tipper Truck Back Flip Dump Side Dumper Highway Transportation

Announcement model:	QL3040ZA6HW
Driving form:	4X2
Wheelbase:	3360mm
Body length:	5.9 m
Body width:	1.945 meters
Body height:	2.32 m
Front wheel base:	1377mm
Rear wheel base:	1425mm
Vehicle weight:	2.72 tons
Rated load:	1.45 tons
Total mass:	4.495 tons
Tonnage class:	Light truck
Approach Angle:	24 degrees
Departure Angle:	12 degrees
Market segments:	Engineering transportation
Note:	Passenger capacity: 5
Engine type:	Keizu Isuzu
Engine brand:	Keizuzu Isuzu
Number of cylinders:	4-cylinder
Fuel Type:	Diesel oil
Displacement:	2.999 L
Emission standard:	radish
Maximum horsepower:	98 horsepower
Maximum output power:	72kW
Maximum torque:	220N·m
Maximum torque speed:	1700rpm
Rated speed:	3400rpm
Container length:	3.13 m
Container width:	1.78 m
Container height:	0.38 m
Container form:	self-discharging
Cab:	Double row
Transmission model:	Isuzu MSB-5MT
Transmission brand:	Isuzu
Forward gear:	Fifth gear
Number of reversals:	one
Fuel tank material:	ferruginous
Front axle allowable load:	1580kg
Rear axle allowable load:	2915kg
Speed Ratio:	6.142
Number of spring pieces:	3/3 + 2
Tire Specifications:	6.50R16 10PR
Number of tires:	six
ABS Anti-lock:	Yes.
