JAC 4X2 Dump Truck Tipper Dunmper Self Loading Truck

Condition : New

Steering : Left

Horsepower : 130

Emission Standard : Euro 6

Brand Name : JAC

Place of Origin : Hubei, China

Segement : Light truck

Market Segement : Urban construction muck transportation

Fuel Type : Diesel

Engine Capacity : < 4L

Cylinders : 4

Transmission Type : Manual

Forward Shift Number : 5

Reverse Shift Number : 1

Maximum Torque(Nm) : ≤500Nm

Cargo Tank Dimension : 3200x2050x600mm

Cargo Tank length : ≤4.2m

Gross Vehicle Weight : ≤5T

Capacity (Load) : 1 - 10t

Fuel Tank Capacity : ≤100L

Drive Wheel : 4X2

Passengers : 5

Driver's Seat : Normal

Rear Camera : None

ABS(Antilock Braking System) : None

ESC(Electronic Stability Control System) : None

Touch Screen : None

Window : Automatic

Tire Number : 6

After-sales Service Provided : Onsite Installation, Video technical support, Field installation, commissioning and training, Online support, Free spare parts

Color : Customer's Request

MOQ : 2 units

Price : CN¥78,814.63/units 2-17 units

Contact Now

JAC 4X2 Dump Truck Tipper Dunmper Self Loading Truck

Driving form:	4X2
Wheelbase:	2850mm
Body length:	4975mm
Body width:	1960m m
Body height:	2165 m
Front wheel base:	1505mm
Rear wheel base:	1505mm
Vehicle weight:	2720kg
Rated load:	1645kg
Total mass:	4495kg
Tonnage class:	Light truck
Approach Angle:	17 degrees
Departure Angle:	Twenty-one degree
Engine type:	Yuchai YCY24140-60
Engine brand:	Yuchai
Number of cylinders:	4-cylinder
Fuel Type:	Diesel oil
Displacement:	2360m L
Emission standard:	euro6
Maximum horsepower:	130 horsepower
Maximum output power:	98kW
Maximum torque:	400N·m
Maximum torque speed:	1400-2000rpm
Rated speed:	2950rpm
Engine form:	High voltage common rail +EGR+DOC+DPF+SCR+ASC
Container length:	31 00mm
Container width:	1800m m
Container height:	6 00mm
Container form:	self-discharging
Cab lift:	power-driven
Transmission model:	Wanliyan 10H46
Transmission brand:	Myriyan
Forward gear:	Fifth gear
Number of reversals:	one
Fuel tank material:	Aluminium alloy
Tank capacity:	70L
Frame size:	760 x 232 x (7+4) mm
Front axle description:	1069 Shortened bridge /2.3t
Front axle allowable load:	3300kg
Rear axle description:	1089 Shortened bridge /7t
Rear axle allowable load:	5800kg
Speed Ratio:	5.833
Number of spring pieces:	9/10 + 8
Tire Specifications:	8.25R16LT 16PR
Number of tires:	six
ABS Anti-lock:	Y

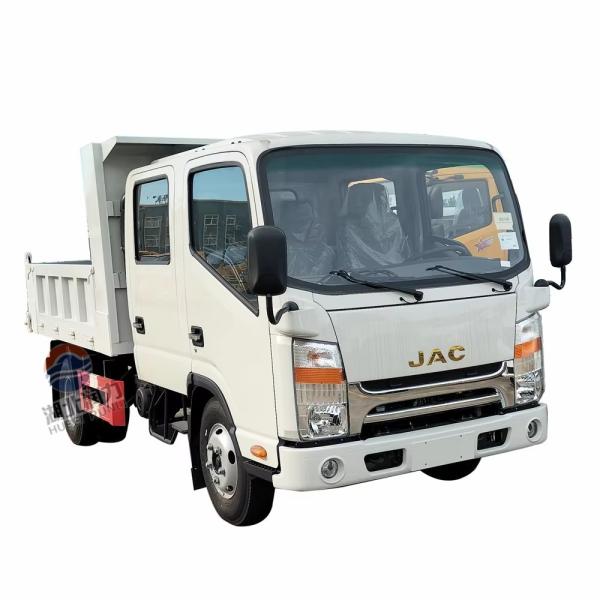

JAC 4X2 Dump Truck Tipper Dunmper Self Loading Truck Images
