Condition : New
Steering : Left
Horsepower : 351 - 450hp
Emission Standard : Euro 2
Brand Name : HOWO
Place of Origin : Hubei, China
Segement : Heavy truck
Market Segement : Mining transportation
Engine Brand : WEICHAI
Fuel Type : Diesel
Engine Capacity : > 8L
Cylinders : 6
Gear Box Brand : SINOTRUCK
Transmission Type : Manual
Forward Shift Number : 12
Reverse Shift Number : 2
Maximum Torque(Nm) : 1000-1500Nm
Dimensions (L x W x H) (mm) : 7800*2500*3200
Cargo Tank Dimension : 5800*2300*1200+300 mm
Cargo Tank length : 5.3-6.2M
Gross Vehicle Weight : 25-30T
Capacity (Load) : > 50T
Fuel Tank Capacity : 300-400L
Drive Wheel : 6x4
Passengers : 3
Driver's Seat : Air suspension
Rear Camera : None
Cruise Control : None
ABS(Antilock Braking System) : None
ESC(Electronic Stability Control System) : None
Touch Screen : None
Multimedia System : Yes
Window : Manual
Air Conditioner : Manual
Tire Number : 10
After-sales Service Provided : Video technical support, Online support
Mongolia Dump Truck : HOWO Mining Tipper Truck
Price : CN¥339,842.90/units 1-4 units
Dimension(L×W ×H)(unloaded)(mm) | 8750×2550×3450 | ||
Cargo body size (L×W×H)(mm) | 5800*2300*1200+300mm | ||
Approaching angle/Departure angle(°) | 19/21 | ||
Overhang(front/rear) (mm) | 1430/2095 | ||
Wheel base (mm) | 3800+1350 | ||
Max speed(km/h) | 78 | ||
Front Axle Weight(kg) | 9500(Kg) | ||
Rear Axle Weight(kg) | 16000*2(Kg) | ||
Actual loading(kg) | 30000-60000 | ||
Engine (made in China) | Model | WP10.380E22 | |
Fuel type | Diesel | ||
Displacement (ml) Power(kw) | 9726 279 | ||
Emission | EURO 2 | ||
Fuel tanker capacity (L) | 400L | ||
Transmission | Model | HW19712,12 forward&2 reverse | |
Brake system 制动系统 | Service brake | Dual circuit compressed air brake | |
Parking brake | spring energy, compressed air operating on rear wheels | ||
Steering system | Model型 | LHD | |
Front axle | Steering with double T-cross section beam | ||
Rear axle | Cast axle housing, central double reduction with differential locks between axles and wheels | ||
Electrical system | Battery | 2X12V/180Ah | |
Alternator | 28V-1500kw | ||
Starter | 7.5Kw/24V | ||
other | Dual warning lights in the cab, |
![]() |

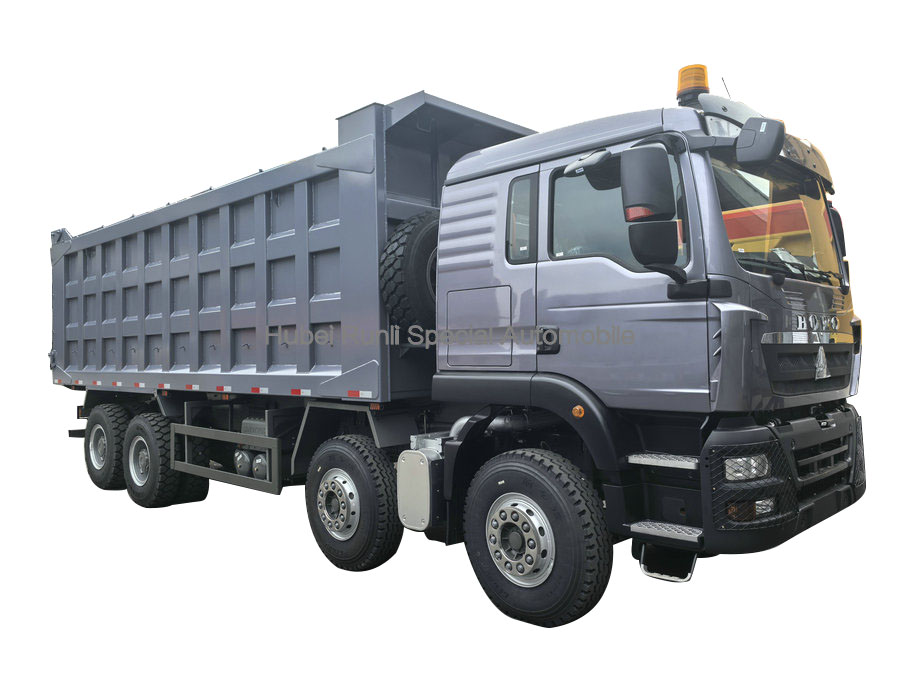

Mongolia HOWO TX 6X4 380HP Dump Truck 30 Tons to 60 Tons Coal Sandy Mining Transportation Tipper Vehicle Best Price Sales Images |
