FAW Double Cabin Hand Operated Aerial Lift Truck Euro 3 14 Meters 4x2

Place of Origin : Hubei, China

Brand Name : SCS

Packaging Details : Standard export package

Supply Ability : 200 Set/Sets per Month

Price : CN¥112,075.85-126,537.25/units

Transmission Type : Manual

Condition : New

Emission Standard : Euro 3

Fuel Type : Diesel

Dimensions (L x W x H) (mm) : 5995*1995*3310

After-sales Service Provided : Onsite Installation, Video technical support, Online support

Horsepower : < 150hp

Engine Capacity : 4 - 6L

color : white

Max working height : 14 Meters

Drive type : 4X2

Certificate : CCC ISO9001

Turntable rotation : 360

Truck type : 14m Aerial Work Platform Truck

Power supply : Engine

Warranty : 12 Month

Material : High Tensile Steel

Port : Shanghai

Contact Now

Hot FAW 4x2 double cabin 14 meters hand operated lift truck

Product Description

Drive Model	4X2
Chassis	CA1040P40K
Vehicle Main Dimensions	Dimensions(L x W x H)mm		5995×1995×3310
	Wheel base (mm)		2400/3360
	Overhang (front/rear) (mm)		1580/2410
	Wheel track (front/rear) (mm)		1940/1860
	Approach/Departure angle(°)		34/20
Weight in KGS	GVW.		11750
	Curb Weight		12180
Max. driving speed(km/h)			88
Engine		Model	4DW81-49
		Type	4-stroke direct injection , 4 -cylinder in-line with water cooling, turbo-charging and inter-cooling
		Horse Power(HP)	116
		Emission standard	Euro II
Gearbox		5 forwards & 1 reverse
Clutch		Reinforced diaphragm clutch
Steering Gear		Power steering, hydraulic steering with power assistance
Fuel tank (L)		120L
Tire		6.00-15 nylon tire, 6pieces+1 spare tire
Brakes		Service brake: dual circuit compressed air brake
cab:		3
Max. Working Height		16-22m
Aerial Platform Rated Capacity		200kg
Hydraulic Outriggers		4 pcs, H-type; Hydraulically extend and retract
Boom and Swing		Hydraulic actuated and controlled, 360° continuous rotation
Aerial Platform Control Method		Control both on the deck and in the aerial platform
Safety Device		Relief valve, balance valve, double-way hydraulic lock, motor emergency system etc.

FAW Double Cabin Hand Operated Aerial Lift Truck Euro 3 14 Meters 4x2

Our Services

Our Company Main Products:

The main products are

1. Water truck

2. Fuel tanker truck, Oil Truck, Tanker Truck

3. Fire engine truck

4. Truck mounted with crane

5. Dump truck, tipper, heavy duty truck

6. LPG Tank Truck, LPG Truck, LPG Tanker, LPG Semi-trailer, LPG Storage Tanker

7. Bulk cement truck

8. Concrete mixer truck, mixer truck, cement mixer truck

9. Garbage truck, Self-loading garbage truck, garbage compactor truck,sealed garbage truck

10. Fecal suction truck, sewage suction truck

11. High altitude working truck

12. Chemical liquid truck

13. Van truck, insulated truck, refrigeration truck

14. Semi trailer, Low plate semi-trailer, oil semi-trailer, van semi-trailer, bulk cement transportation semi-trailer, container semi-trailer, chemical liquid semi-trailer,etc more than 300 types in total.

Hand Operated Aerial Lift Truck

Aerial Lift Truck Euro 3

14 Meters Hand Operated Aerial Lift Truck

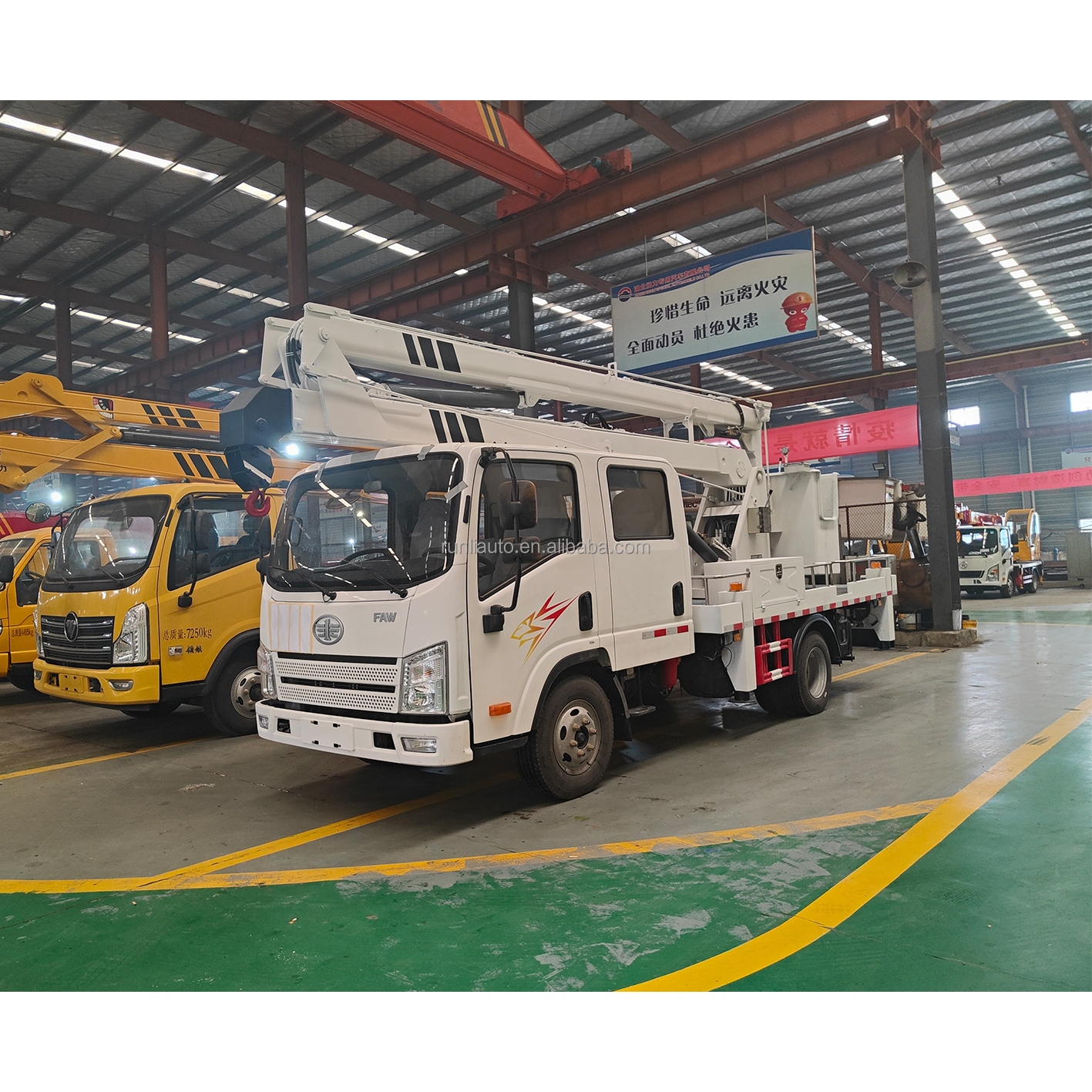

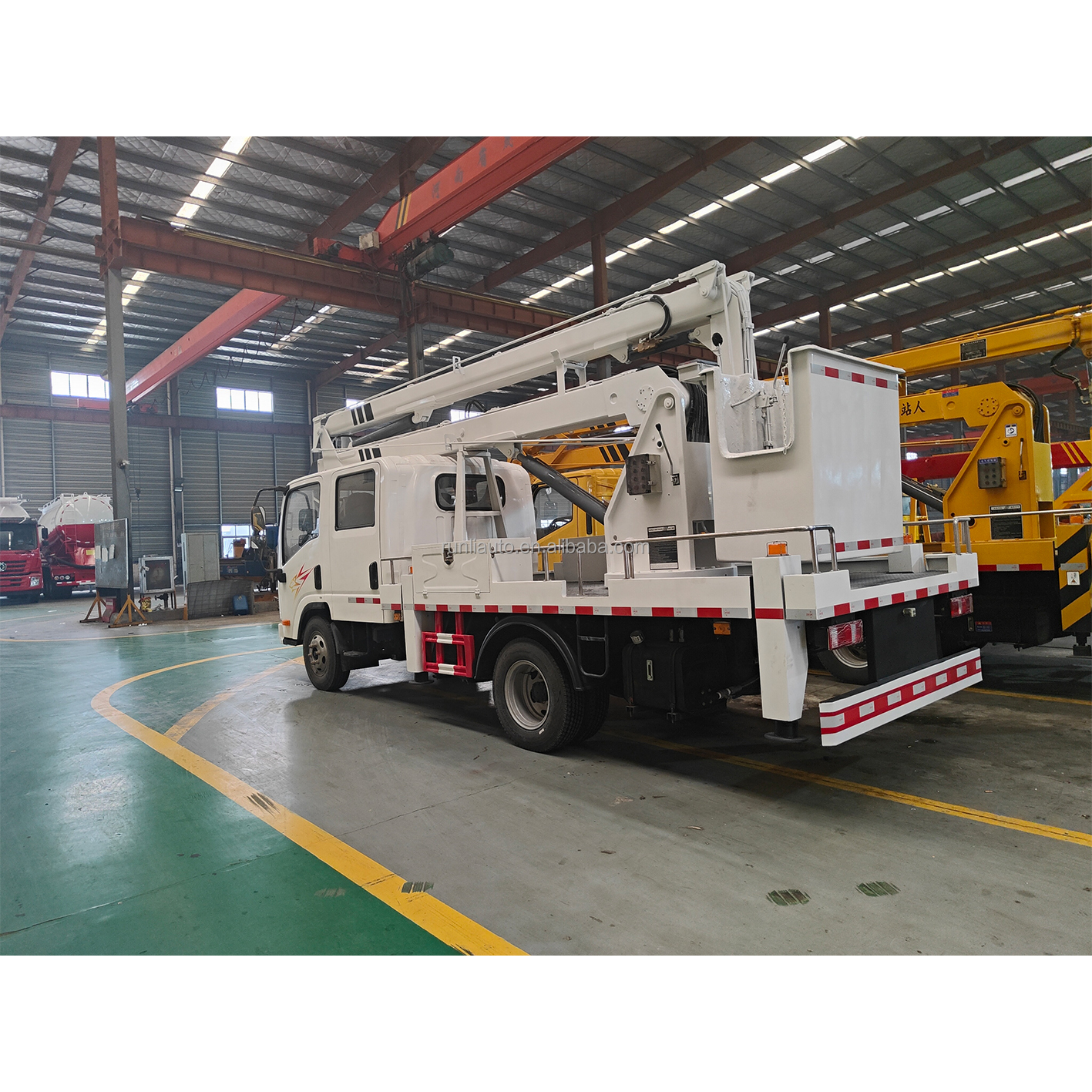

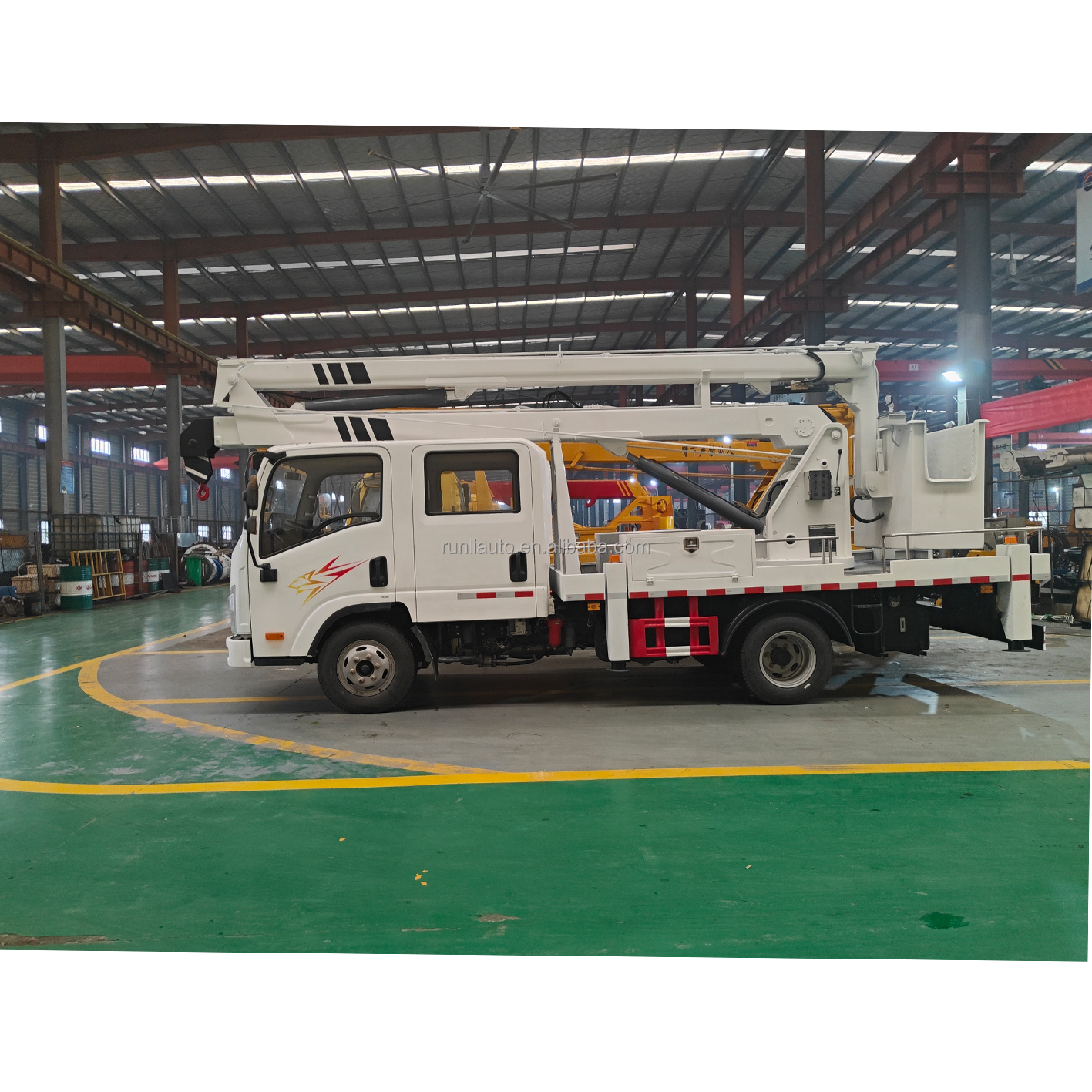

FAW Double Cabin Hand Operated Aerial Lift Truck Euro 3 14 Meters 4x2 Images
