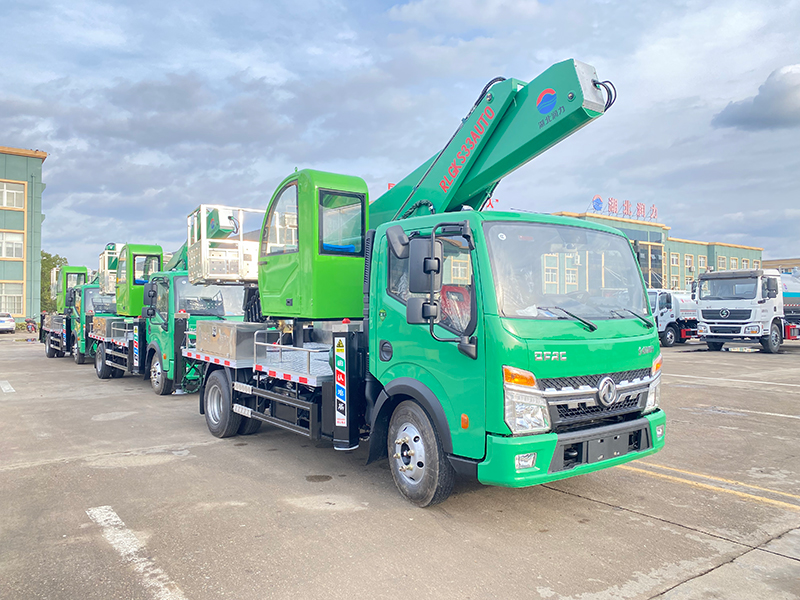

China Manufactory Sells Small 4x2 Aerial Platform Truck 30m With Double Hydraulic Cylinder and Legs

Name: China Manufactory Sells Small 4x2 Aerial Platform Truck 30m With Double Hydraulic Cylinder and Legs
Brand: Dongfeng
Price: 111 USD

China Manufactory Sells Small 4x2 Aerial Platform Truck 30m With Double Hydraulic Cylinder and Legs Manufactures

Transmission Type : Manual

Condition : New

Emission Standard : Euro 6, Euro 6

Fuel Type : Diesel

Dimensions (L x W x H) (mm) : 3300*2300*2850

Place of Origin : Hubei, China

Brand Name : Dongfeng

After-sales Service Provided : Online support

Horsepower : 150-250HP

Engine Capacity : < 4L

Fuel Tank Capacity : 200-300L

Product name : Aerial Manlift Work Platform Truck

Transmission : 15MT

Tire : 9.00R16LT 14PR

Truck Usage : high altitude operattion work

Chassis : Dongfeng

Wheelbase : 2800mm

Engine : YUNNEI 130JP

Control system : RC Control Aerial Truck

Truck type : 4x2

Price : CN¥111,352.78/units 1-2 units

Contact Now

Products Description

China Manufacoty 4x2 Aerial Platform Truck 30M with Double Hydraulic Cylinder and Legs

Aerial work trucks are specialized vehicles that transport staff and use equipment to the site and carry out aerial work. Aerial work trucks all adopt straight-arm or curved-arm structure, while aerial work platforms adopt straight-arm, curved-arm, scissor-fork, mast, gantry and mast-climbing structure, giving full play to the comparative advantages of each lifting structure, which can satisfy the needs of different applications.

China Manufactory Sells Small 4x2 Aerial Platform Truck 30m With Double Hydraulic Cylinder and Legs

Details Images

Brand	/	Minimum ground clearance	200mm
Chassis model	Dongfeng	Outrigger retraction time	<100S
Vehicle size	330023002850	Outrigger lateral span	5472mm
Wheelbase	2800mm	Outrigger longitudinal span	5620mm
Mass	4495kg	Boom type	Seven-section synchronous telescopic boom
Maximum height	30m	Engine horsepower	130 horsepower
Maximum amplitude	16m (200kg)	Front overhang/rear overhang	1155/1710mm
Maximum speed	90km/h	Forward/rear reach	0/340mm
Working platform	Aluminum alloy working platform	Approach/departure angle	18/14
Platform load	200/120/80kg	Power take-off system	Manual operation
Platform size	16007001180	Control system	Electro-hydraulic proportional stepless speed regulation
Platform rotation	90	Leveling system	Hydraulic leveling device
Slewing device	360continuous rotation	Walkway	Aluminum pattern anti-slip
Brake type	Air brake	Cab	Single row/2 people
Arm lifting and lowering type	Dual variable amplitude cylinder	Outrigger	Front and rear X-shaped/individually adjustable
Arm extension time	100<100	Operation	Turntable hydraulic handle operation, get-off hydraulic handle operation, and wireless remote control. Equipped with emergency
Arm rotation speed	100			manual hydraulic pump. The whole vehicle can realize full hydraulic manual emergency operation
Fuel type	Diesel

Product packaging

- Naked or waxed.
-->Container (20GP, 40GP, 40HQ, 40FR).
-->Ro-Ro shipping.
-->Bulk ship.
-->Flat rack.
etc.
Shipping
- By sea or by rail, at customer request.

Certifications

Company Profile

Hubei Runli Special Automobile Co., Ltd is established on January 19th, 2009, and its registered capital is 5,000.00 million CNY. Our company is permitted by China Ministry of Industry and Information Technology to produce special automobile and hazardous chemicals tank body. Besides, our company is credited with such titles as “Little Giant for Specialized,Precise,Unique and Innovative Automobile Production”,“China High-tech Enterprise”,“Enterprise With Excellent Credit Standing (Hubei province, China)”,“Provincial Enterprise Technology Center (Hubei province, China)” and “Special Automobile Export Enterprise (Hubei province, China)”. Our factory covers an area of 120000 square meters, and has the capacity of producing 5,000 special automobiles each year. There are 5 major types of products we concentrate on manufacturing – Hazardous chemicals transportation truck, sanitation truck(sprinkler truck,water tanker truck), tow truck, high-altitude operation truck and emergency relief truck. Our company has passed the authentication below: -Product quality: GB/T19001-2016(ISO 9001:2015) -Environment protection: GB/T45001-2020/ISO45001-2018 -Worker health and safety protection: GB/T28001-2011/OHSAS18001:2007 -After-sale service: GB/T27922-2011(Chinese National Standard) -AAA Enterprise Credit Rating Certification (Hubei province) -CCC Certification (CCC is abbreviation of China Compulsory Certificate). And the product qualification ratio of our company reaches 99.5%. Moreover, our products have been exported to over 20 countries such as Philippine,Cambodia,Tanzania,Costa Rica,Bolivia,Chile,Republic of Columbia,Ethiopia,Venezuela, etc.. Our company holds the faith that “quality, credit standing, technology and full-process service” is key to serving customers and aims to provide high-quality special automobile to clients all over the world.
