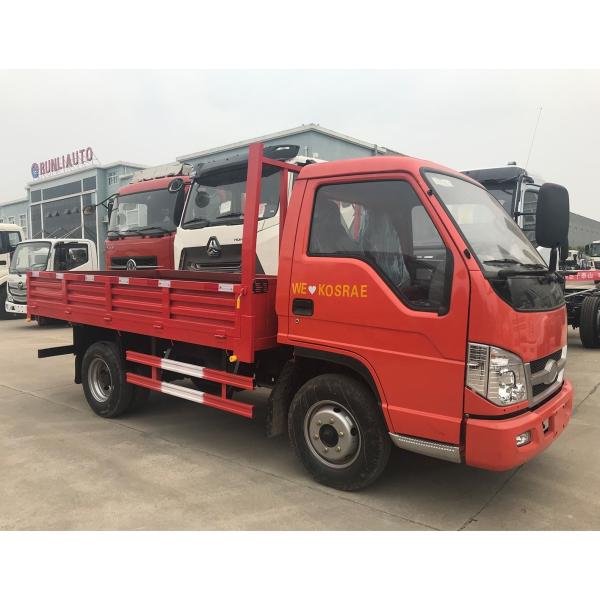

FORLAND 4X2 3 Ton Lorry Truck Dimensions

Condition : New

Steering : Left

Emission Standard : Euro 3

Brand Name : Forland

Place of Origin : Hubei, China

Segement : Light truck

Market Segement : Logistics transportation

Fuel Type : Diesel

Engine Capacity : 4 - 6L

Cylinders : 4

Horsepower : < 150hp

Transmission Type : Manual

Forward Shift Number : 5

Maximum Torque(Nm) : ≤500Nm

Size : 5490*1930*2170

Cargo Tank Dimension : 3300x1610x360

Cargo Tank length : ≤4.2m

Cargo Tank Type : Column plate

Gross Vehicle Weight : 4350

Capacity (Load) : 1 - 10t

Drive Wheel : 4X2

Passengers : 3

Seat Rows : Single row

Rear Camera : None

ABS(Antilock Braking System) : None

ESC(Electronic Stability Control System) : None

Touch Screen : None

Air Conditioner : Manual

Tire Number : 6

After-sales Service Provided : Video technical support, Return and Replacement, Online support

Product name : New light truck

Certificate : CCC ISO

Wheelbase : 3360mm

Emission : EURO 2/3/4/5

Loading capacity : 1-5Ton

Tire : 6.50-16

Warranty : 12 Months

Chassis brand : FORLAND

Horse power : 57HP

Transmission : Manual Transmission

Packaging Details : nacked package

Port : any port in China

Supply Ability : 200 Unit/Units per Month

Price : CN¥50,470.29-54,230.25/units

Contact Now

FORLAND 4X2 3 ton lorry truck dimensions

Product Description

Detailed Specifications
Category Light Cargo Truck Vehicle model BJ1042
Cabin D1695 Driving type 4X2
Inner dimensions of the cargo body (LxWxH)mm 3670×1810×360
Rated power(kw/rpm) 34.5/3000 Steering gear power steering
Wheels and tyre size 6.50-10 option Airconditioner/Warmer
Rated payload(kg) 1900 Curb Weight 2200
Basic equipment radio, spare tyre, adjustable, electrical controlled engine stop

Vehicle brand FORLAND
Cabin D1695
Whole vehicle main dimensions Overall dimensions (LxWxH)mm 5490×1930×2170
Inner dimensions of the cargo body (LxWxH)mm 3670×1810×360
Driving type 4x2
Wheel base (mm) 2800
Wheel track (front/rear) (mm) 1415/1435
Weight data Curb weight (kg) 2200
Rated payload (kg) 1900
Persons in cab (persons) 2
Gross vehicle weight(kg) 4350
Whole vehicle main performance Max. speed(km/h) 90
Max. slope of climb(%) ≥25
Engine Model 4B1-82C40
Type Four-cylinder, in-line,DI,diesel engine
Displacement(L) 2.27
Rated power(kw/rpm) 60/3200
Max torque (N.m/rpm) 123/1900-2100
Gearbox Model/Type 5-20
Clutch Type Φ254×Φ160 Diaphragm spring clutch
Rear axle Type/Main reducer ratio 130,Rate:5.833
Suspension Front suspension/Leaf spring number Non-independent,7
Rear suspension/Leaf spring number Non-independent,7+5
Steering gear Steering gear Type/Speed ratio Circular ball,Power steering
Brake system Service brake Hydraulic brake
Parking brake Central drup brake

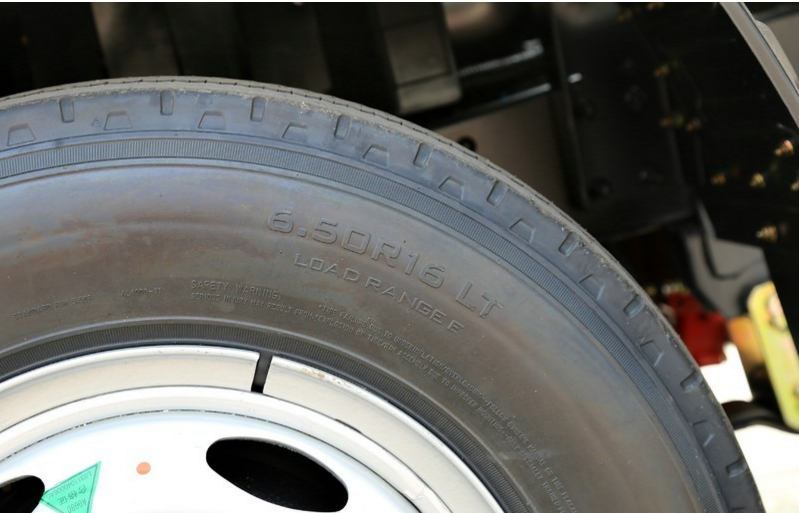

Wheels and tyre size 6.50-16
Battery Rated voltage 24V
Basic equipment Heater,radio+MP3
QTY per 40'HQ 3

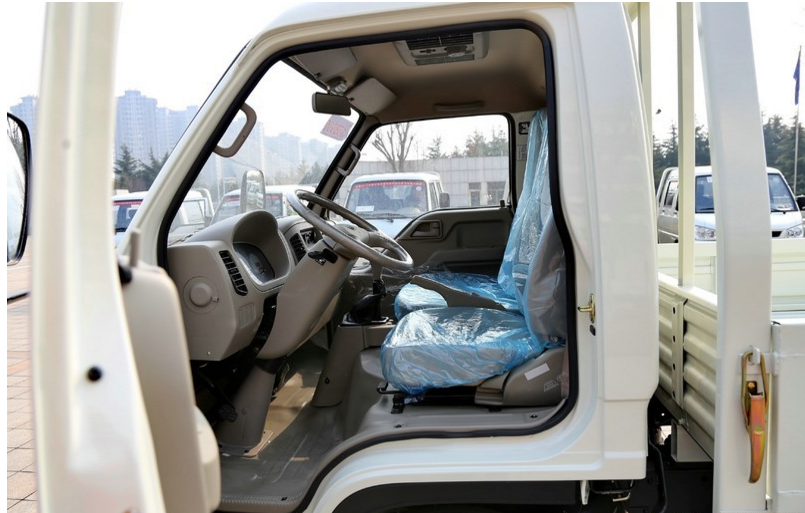

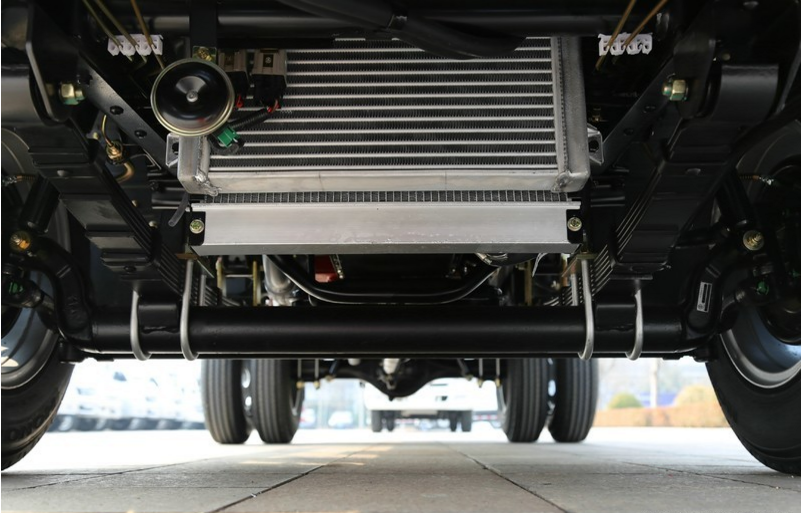

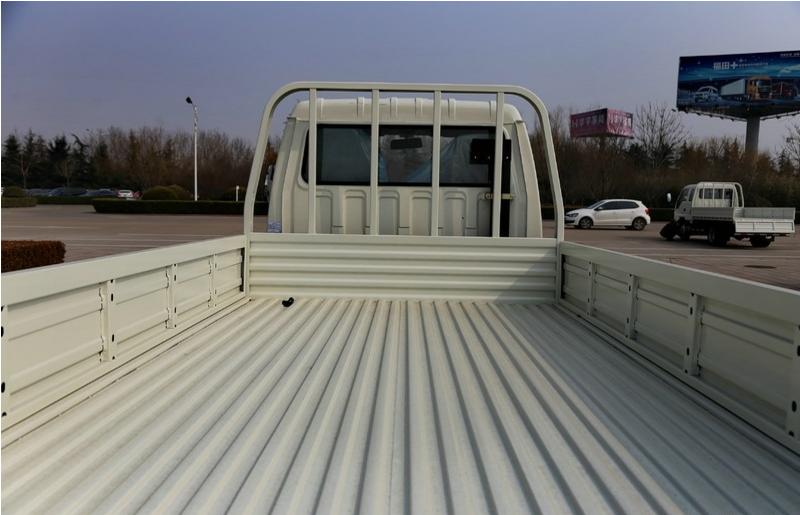

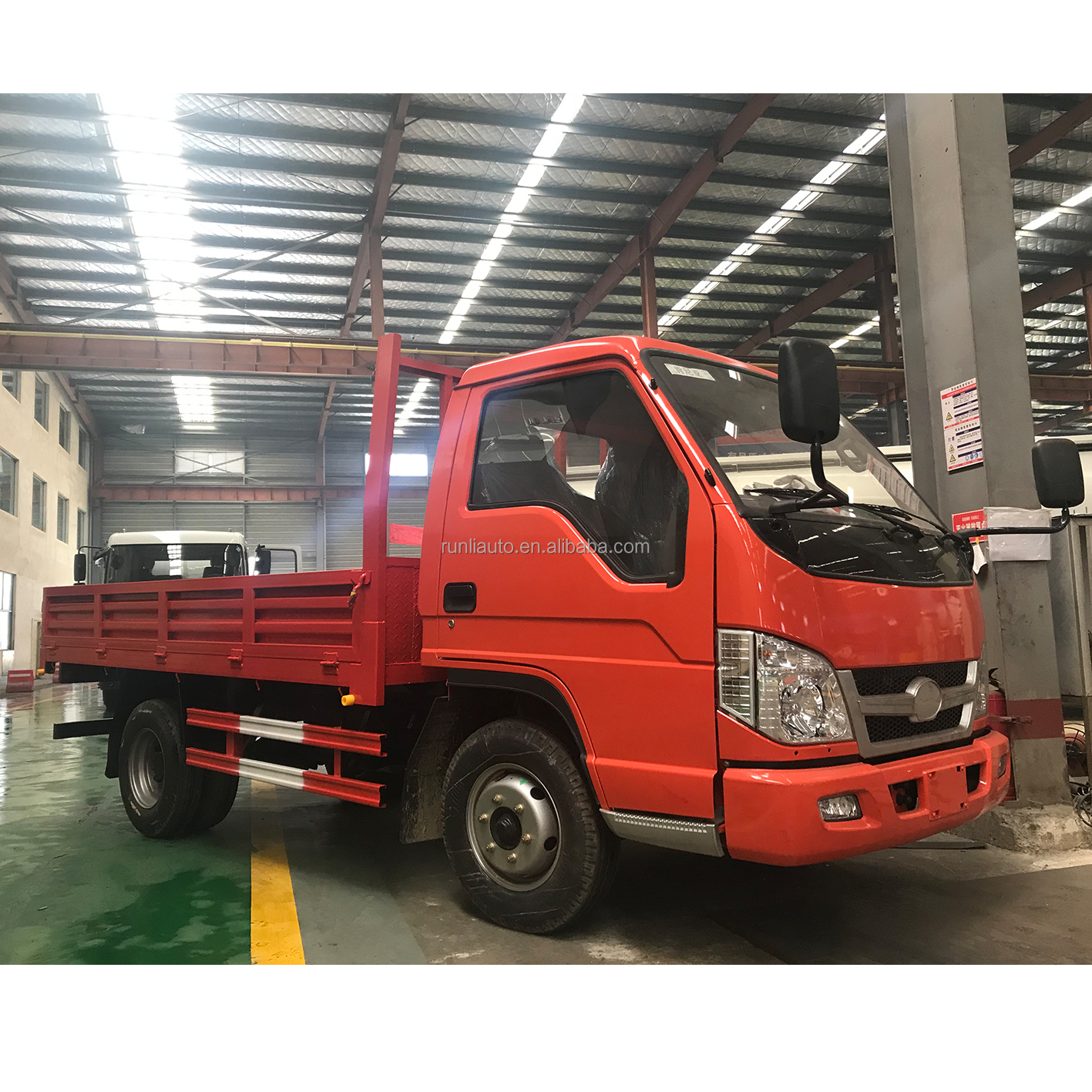

Detailed images

FORLAND 4X2 3 Ton Lorry Truck DimensionsFORLAND 4X2 3 Ton Lorry Truck Dimensions

FORLAND 4X2 3 Ton Lorry Truck Dimensions

FORLAND 4X2 3 Ton Lorry Truck Dimensions

FORLAND 4X2 3 Ton Lorry Truck Dimensions

FORLAND 4X2 3 Ton Lorry Truck Dimensions

FORLAND 4X2 3 Ton Lorry Truck Dimensions

FORLAND 4X2 3 Ton Lorry Truck Dimensions
