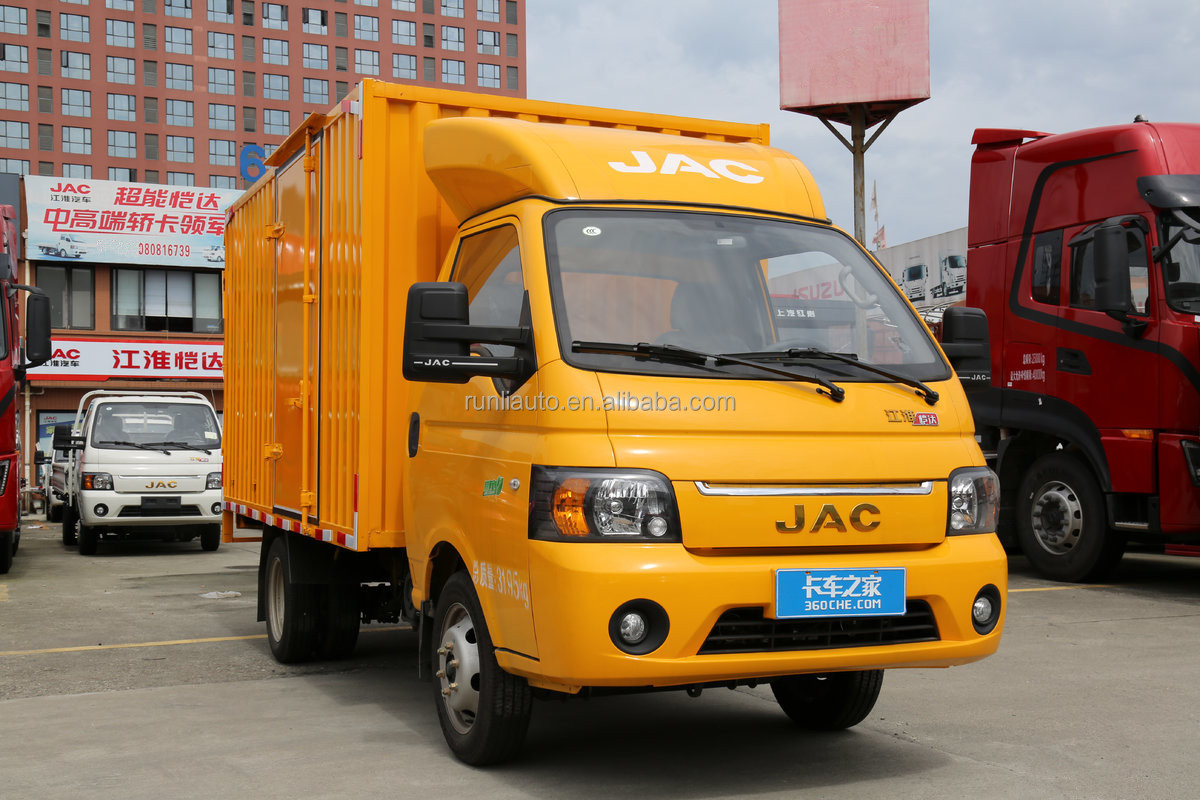

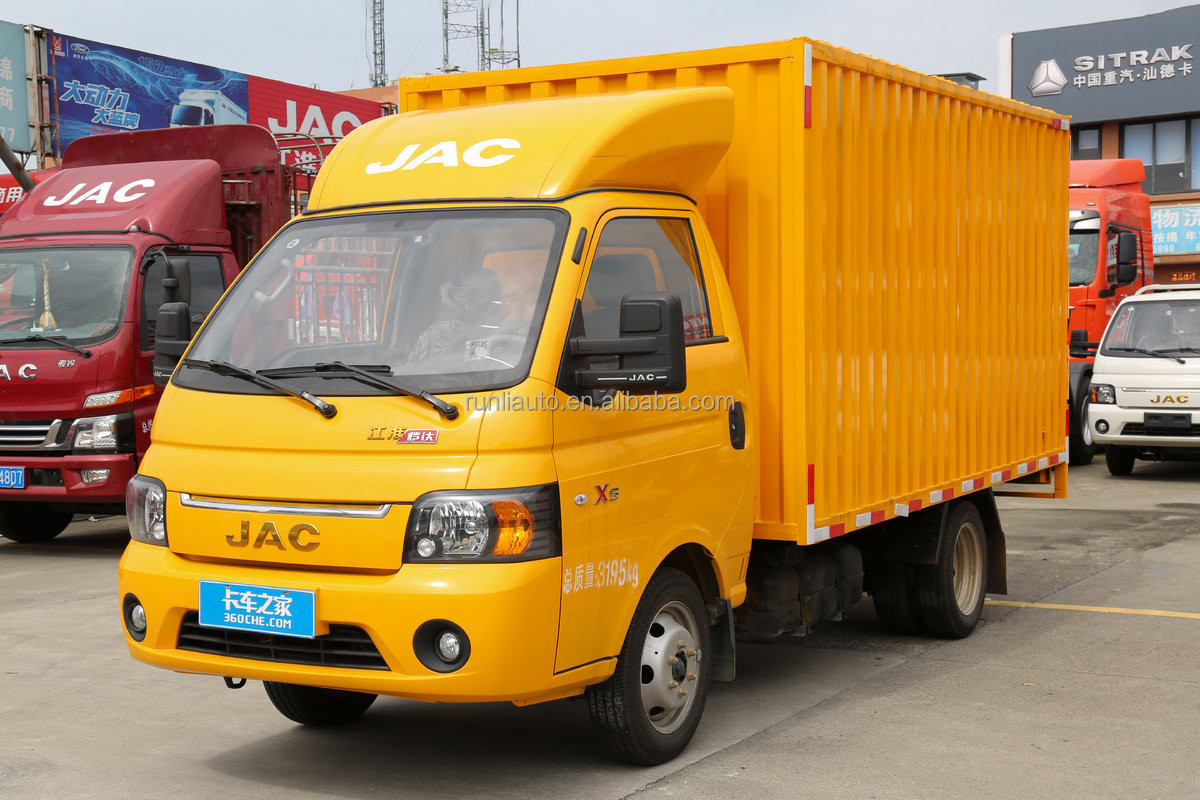

| Chassis model | HFC1030PX1 |
| Engine |
| Model | HFC4GB3-3E |
| Description | In-line/4 cylinders/normally aspirated /water cooled/ electric control/VVT/gasoline engine |
| Rated power of engine (kw/HP) | 88/120 |
| Maximum torque (N.m@rpm) | 155@3500~4500RPM |
| Displacement (ml) | 1590 |
| Emission standard | Euro VI |
| Gearbox |

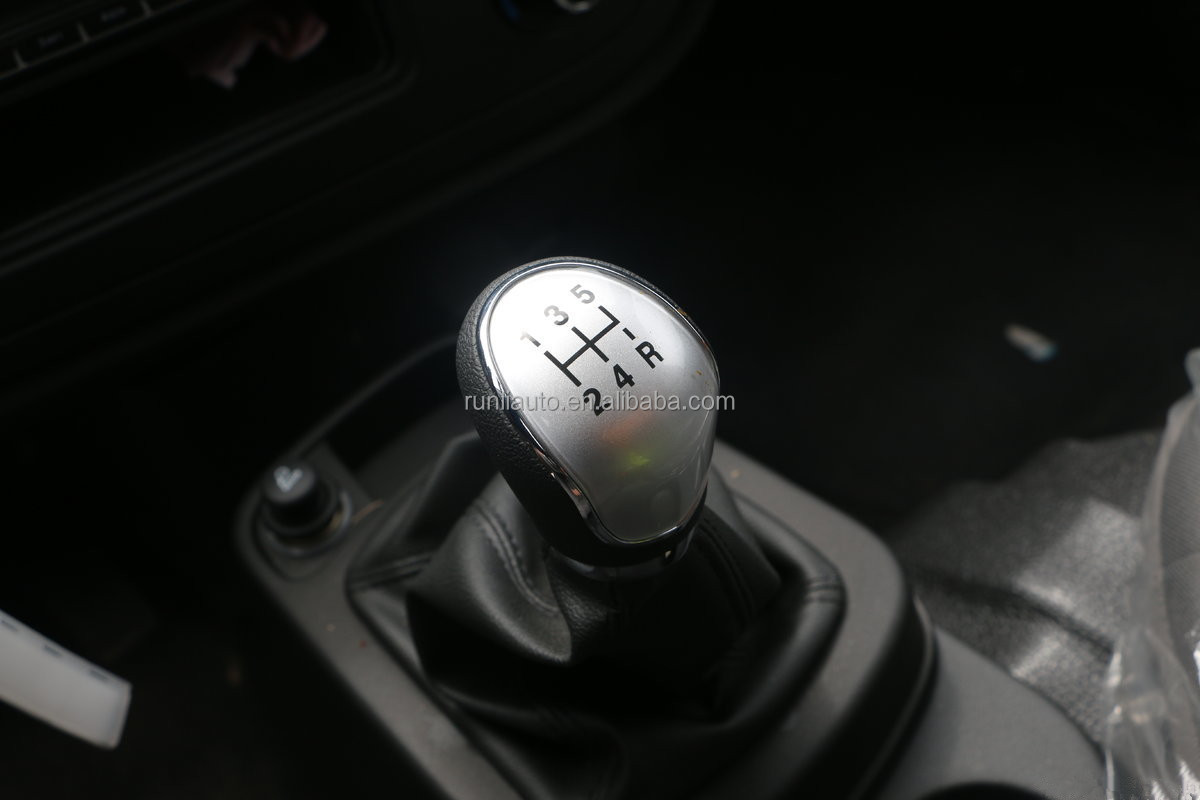

| Description | MG70,manual,5 forward gears & 1 reverse gear |
| Front / Rear axle |
| Front axle load (Kg) | 1255 |
| Rear axle load(Kg) | 2240 |
| Drive type | 4X2 |
| Type of tire | 175/75R16LT 8PR |
| Quantity of tires | 6+1 |
| F/R leaf spring | Non-independent suspension, with auxiliary leaf spring 3/3+2 |
| Brake system | Service brake type | Drum type,hydraulic pressure double loop braking |
| ABS | Provided |
| Parking brake type | Energy storage spring rear wheel braking |
| Steering device | Left hand drive,power steering |
| Weight parameter |
| Curb weight (Kg) | 1740 |
| Rated load capacity(Kg) | 1625 |
| Max. load capacity(Kg) | 3000 |
| Performance parameter |
| Maximum speed (km/h) | 100 |
| Maximum grade ability (%) | ≥22% |
| Dimension parameters |
| Overall dimensions (LxWxH)mm | 5180×1765×2600 |

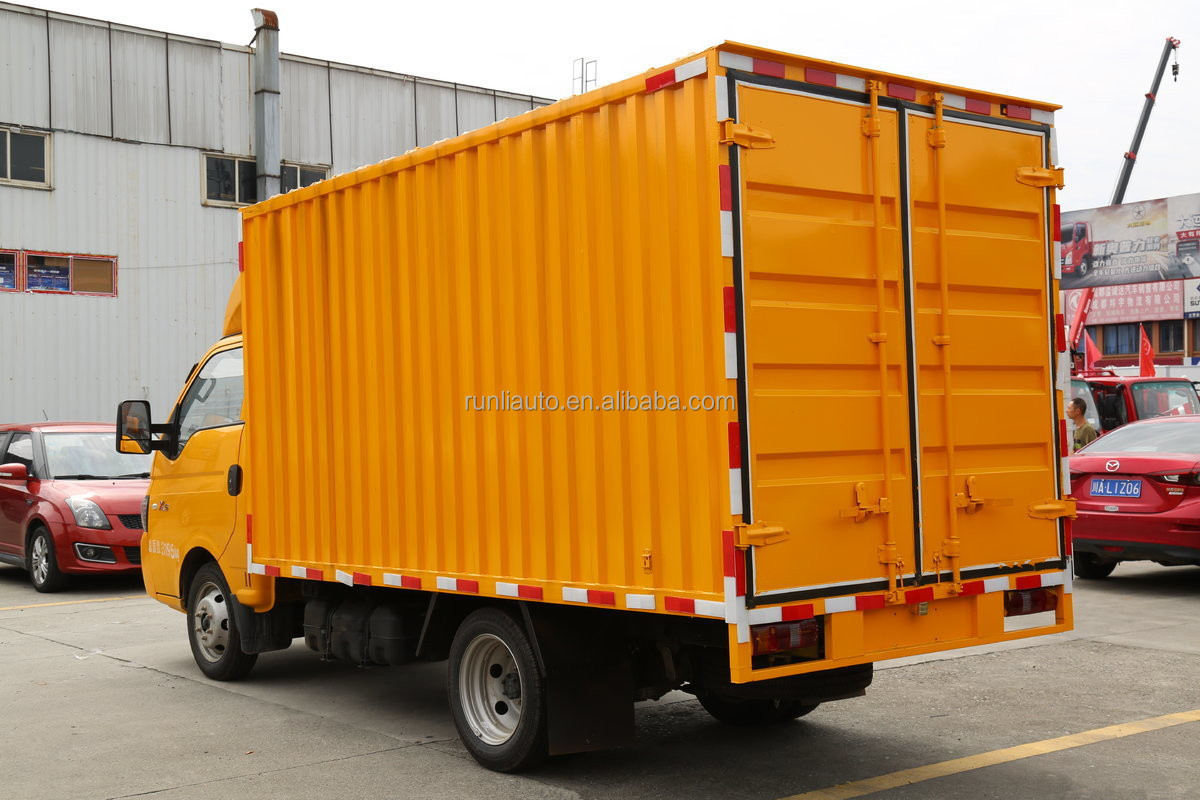

| Internal van dimensions (LxWxH)mm | 3110×1650×1750 |
| Wheelbase (mm) | 2600 |
| Fuel tanker capacity | 75L |

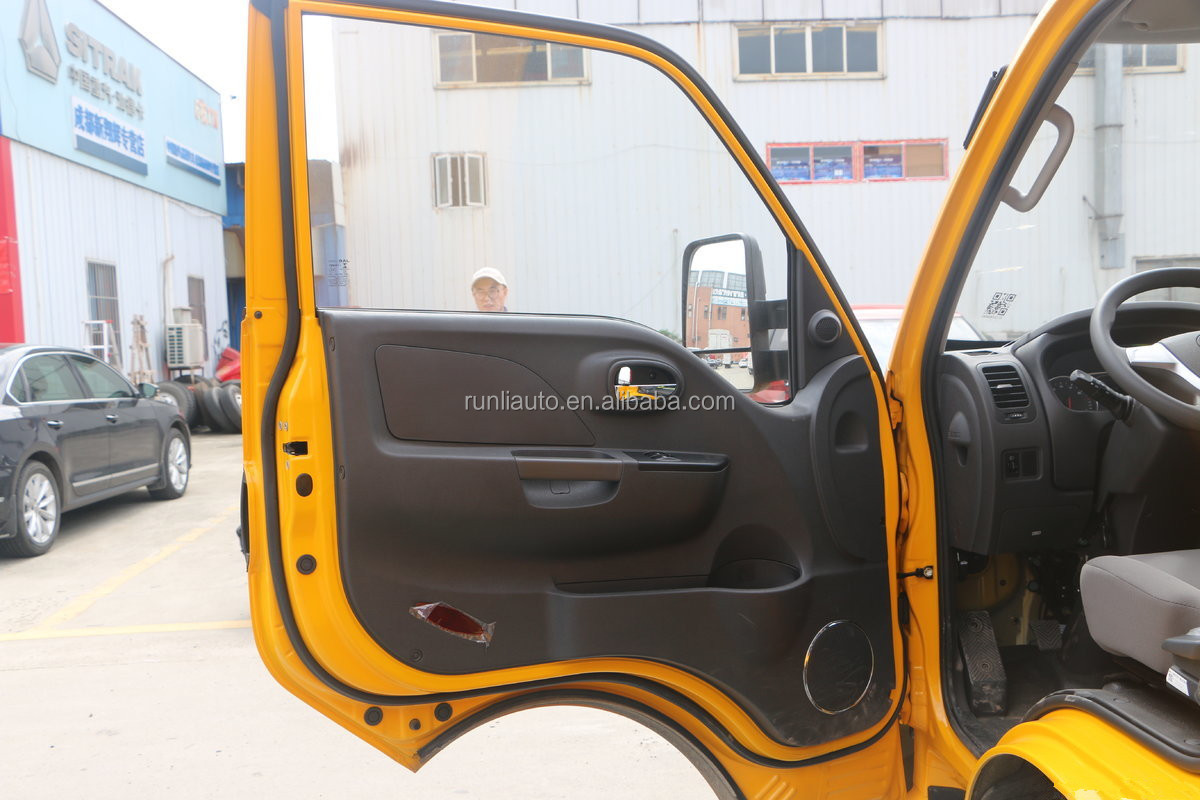

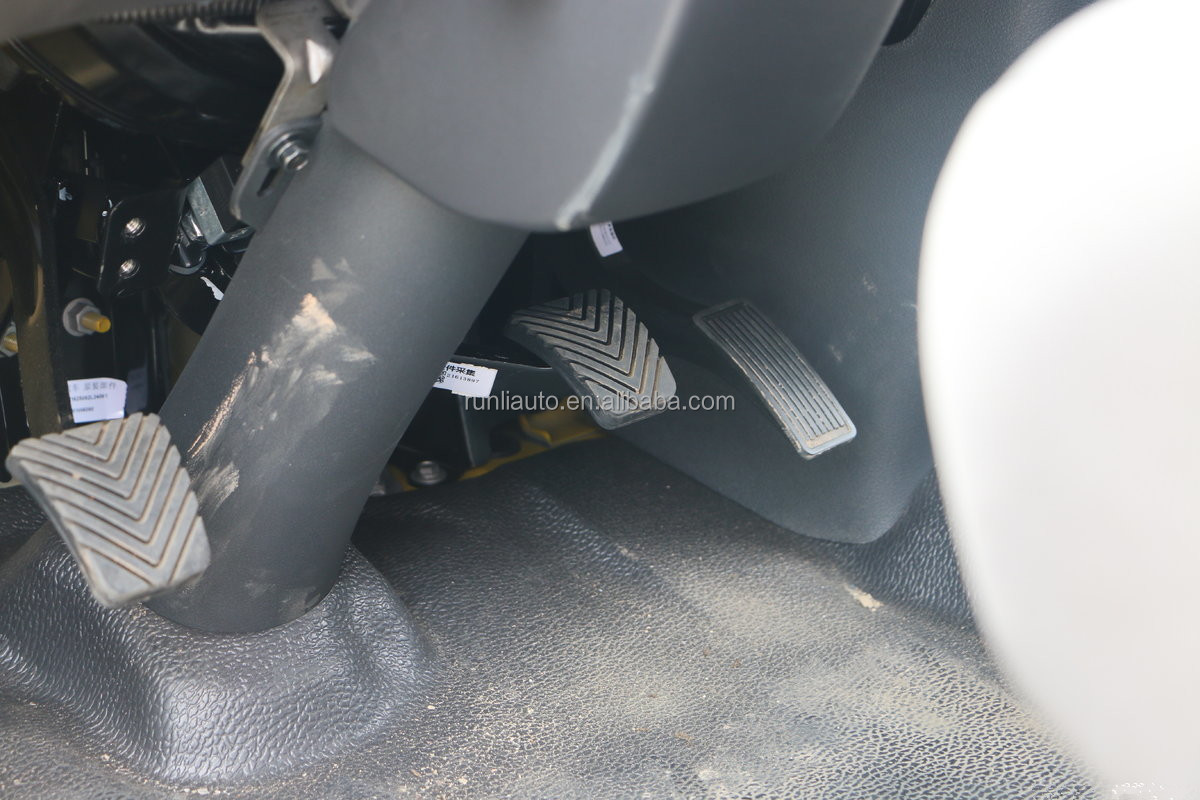

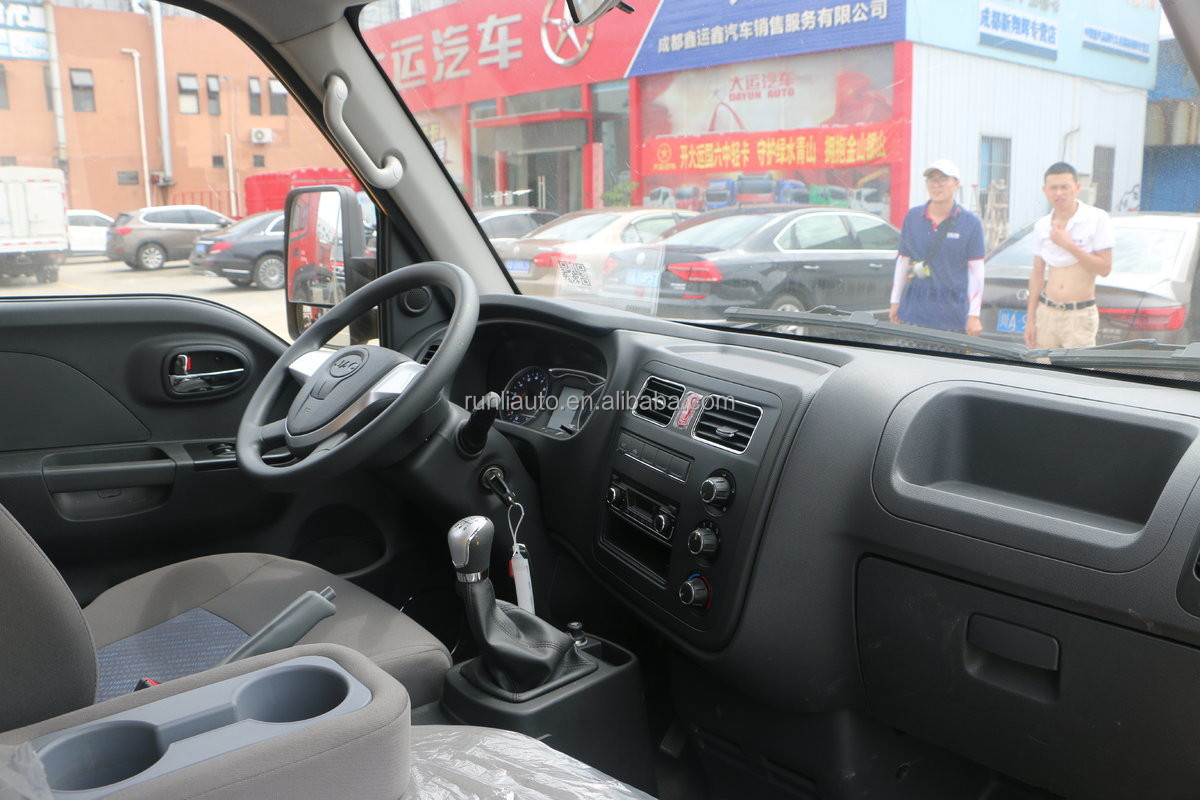

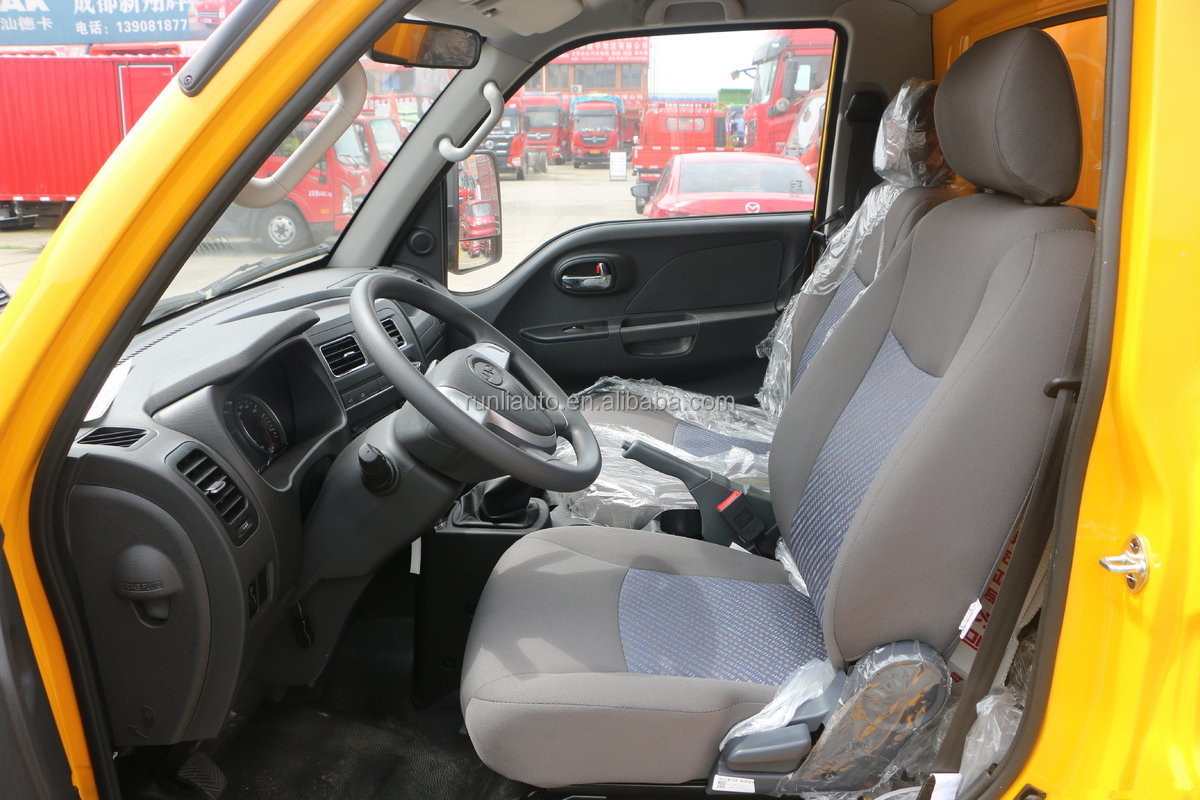

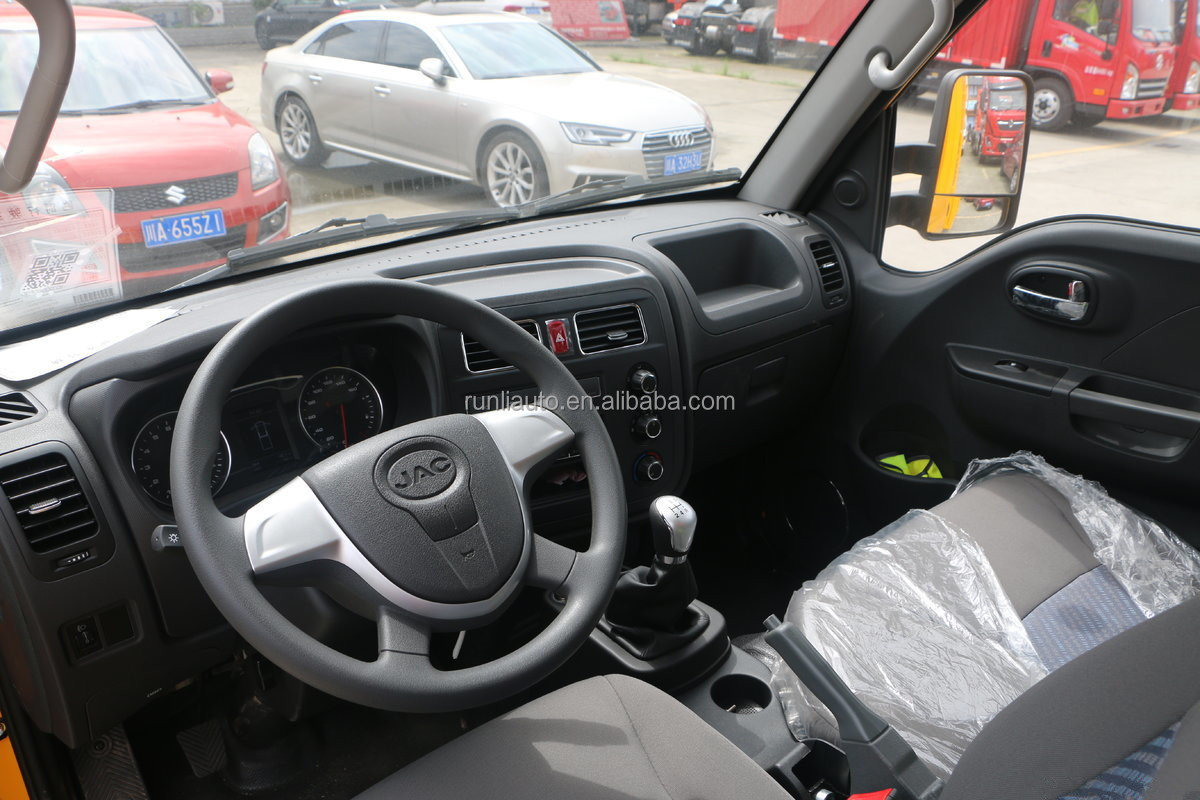

| Cabin | Single row,metallic painting,sedan configuration,2 passengers allowable,adjustable steering wheel, power-assisted clutch,radio,USB+AUX,A/C,central lock,electric window,safety belt provided |
FAQ
Q:How about the warranty?
A:One year.
Q:Do you have ISO certificate?
A:Yes , we have,please contact us to get our certificates.
Q:How about the delivery time?
A: Most of our trucks have stock ,we can deliver to you within 7 days, if specially ordered , normally we need around 30 days for production.
Q: How many units of truck does your factory produce per year?
A:Almost 3000 units.Nearly 300units per month.
Q: How do you control the quality of product?
A:Our Factory has standard production workshop,gets ISO CCC BV certificates,our workers are well trained. Every unit of product undergoes a rigorous inspection process.
Q: How about your product after-sales service system?
A:Our main export countries have accepted after-sales
service,some countries use the third party service.
Q: Do you accept custom order? What’s is your MOQ order?
A:Yes, we do, our MOQ is 1 unit.
Q: What’s the payment terms?
A:By T/T or L/C at sight.
Q: How about shipment?
A:20FT container, 40FT container,40FT high container,
open-top container,flat bed container,Ro-Ro ship or bulk
ship according to the size the products.
If need more detailed information,please feel free to contact me.
Contact person Mr. Lisbon Lee
Welcome to visit our company in China!
Our company address:
NO.77,Century Avenue,Zengdu Economic Development Zone,Suizhou City,Hubei Province,China
