SINOTRUK Single Row Van Truck Freight Train Wagon Deliver Truck

Name: SINOTRUK Single Row Van Truck Freight Train Wagon Deliver Truck
Brand: SINOTRUK
Price: 86 USD

SINOTRUK Single Row Van Truck Freight Train Wagon Deliver Truck Manufactures

Condition : New

Steering : Left

Emission Standard : Euro 6

Brand Name : SINOTRUK

Place of Origin : Hubei, China

Segement : Light truck

Market Segement : Logistics transportation

Fuel Type : Diesel

Engine Capacity : < 4L

Cylinders : 4

Horsepower : < 150hp

Transmission Type : Manual

Forward Shift Number : 5

Reverse Shift Number : 1

Maximum Torque(Nm) : ≤500Nm

Cargo Tank Dimension : 4.15*2.1*2.3

Cargo Tank length : ≤4.2m

Cargo Tank Type : Van

Gross Vehicle Weight : <=5000 kg

Fuel Tank Capacity : ≤100L

Drive Wheel : 4X2

Passengers : 3

Driver's Seat : Normal

Seat Rows : Single row

Rear Camera : Camera

ABS(Antilock Braking System) : Yes

ESC(Electronic Stability Control System) : None

Touch Screen : None

After-sales Service Provided : Onsite Installation, Video technical support, Field installation, commissioning and training, Online support

Color : Customer's Request

Price : CN¥86,768.40/sets 1-17 sets

Contact Now

SINOTRUK Single Row Van Truck Freight Train Wagon Deliver Truck

Announcement model:	ZZ5047XXYF3115F145H
Type:	A van
Driving form:	4X2
Wheelbase:	3280mm
Case length level:	4.2 m
Engine:	Weichai WP2.3Q140E62
Gearbox:	Wan Li Yang WLY5G32
Body length:	5.99 m
Body width:	2.17m
Body height:	3.35m
Front wheel base:	1640mm
Rear wheel base:	1530mm
Vehicle weight:	2.8 tons
Rated load:	1.495 tons
Total mass:	4.49 tons
Maximum speed:	95KM/h
Tonnage class:	Light truck
Approach Angle:	18 degrees
Departure Angle:	17 degrees
Front/rear overhang:	1.16/1.55 m
Engine type:	Weichai WP2.3Q140E62
Engine brand:	Weichai
Engine commonly known as:	Weichai WP2.3Q
Number of cylinders:	4-cylinder
Fuel Type:	Diesel oil
Cylinder arrangement:	orthostitial
Displacement:	2.289 L
Emission standard:	Kokuroku
Maximum output power:	103kw
Maximum horsepower:	140 horsepower
Maximum torque:	320N·m
Maximum torque speed:	1600-2400RPM
Rated speed:	3200RPM
Engine form:	High pressure common rail
Engine oil change cycle:	50,000 km
Container form:	Van type
Container length:	4.15 m
Container width:	2.1 m
Container height:	2.3 m
Number of permitted passengers:	Three people
Number of seats:	Single row
Transmission model:	Wan Li Yang WLY5G32
Shift mode:	Manual operation
Forward gear:	Fifth gear
Number of reversals:	one
Front axle allowable load:	1790KG
Rear axle allowable load:	2700KG
Number of spring pieces:	3/5 + 3
Tire Specifications:	7.00R16LT 10PR
Number of tires:	six
Vehicle brake type:	Air brake
Parking brake:	Cutoff brake
Engine braking:	In-cylinder braking
Front wheel brake:	Standard drum brake, optional disc brake
Rear wheel brake:	Drum brake

Product Tags:

single row cargo van truck

single row van cargo truck

logistics transportation cargo van truck

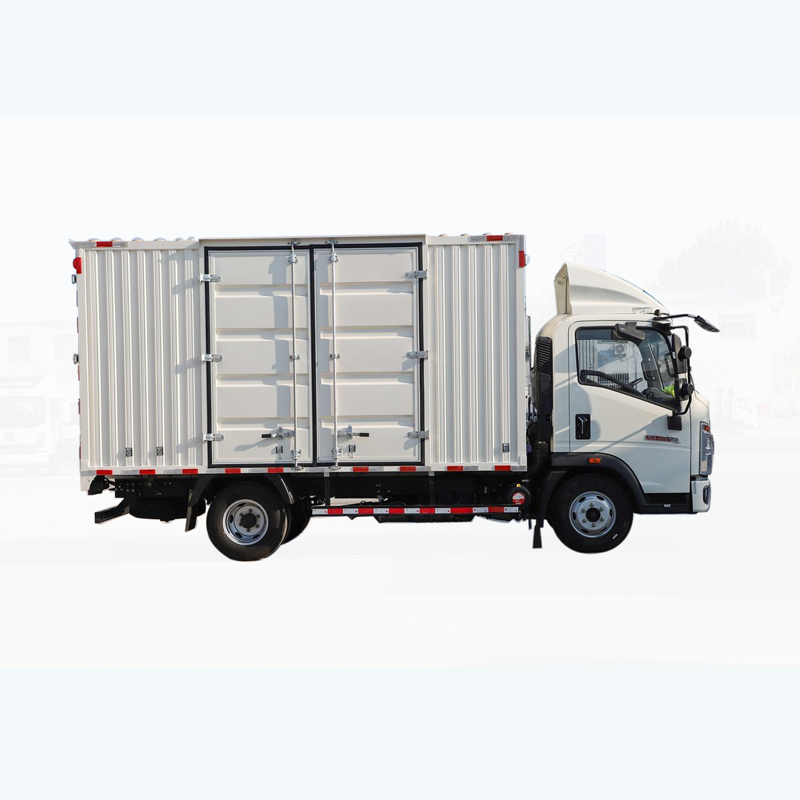

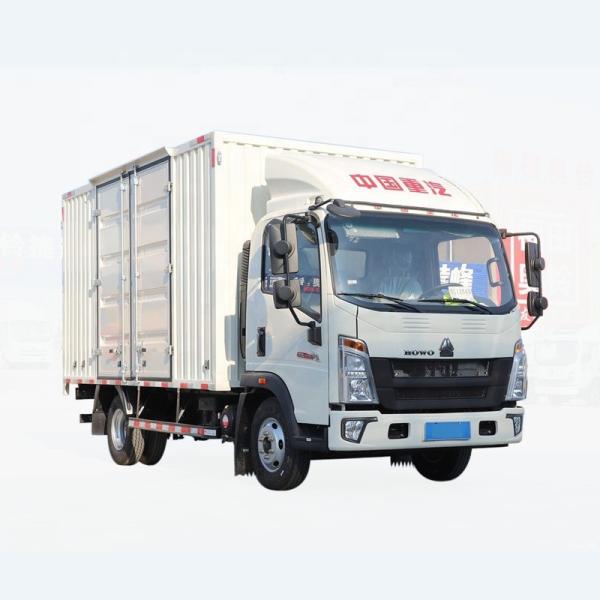

SINOTRUK Single Row Van Truck Freight Train Wagon Deliver Truck Images
