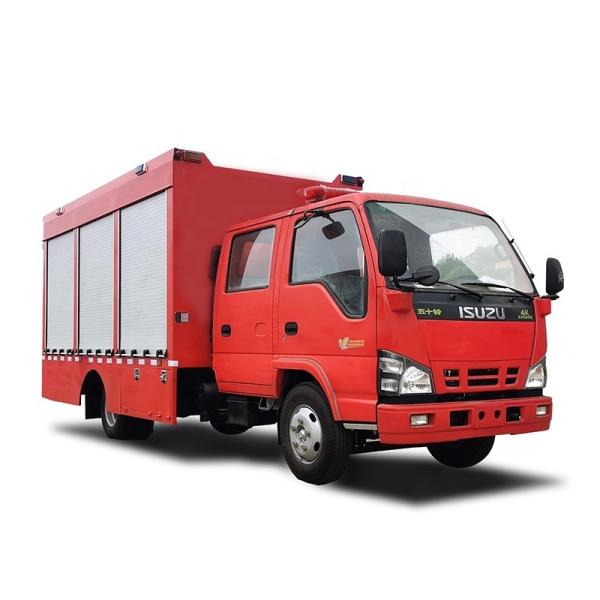

Hot seller ISUZU 4x2 Emergency repair rescue truck
| Applicable scope Emergency repair of urban water supply, power supply, heating, and gas pipelines Field emergency repair of petroleum and chemical production facilities and long transportation pipelines Natural disasters and emergency rescue. On site repair of military field equipment. Main functions: ◆Provide power and air sources required for repairing equipment; ◆Provide seating space for emergency repair workers; ◆Provide carriage space for loading repair equipment and materials. ◆Provide outdoor construction lighting and working lighting. ◆Provide construction safety warning equipment | Model | SCS5040XXHQ6 | | Whole truck dimension(L×W×H) | 5980X2040X2730mm | | Van body dimension (L×W×H) | 3150x2040x1630mm | | GVW | 4495kg | | Curb weight | 4170kg | | Wheel base | 3360mm | | Axle load | 1730/2765kgs | | Approching/Departure Overhang | 24/14° | | Overhang Front/Rear | 1015/1605mm | | Max speed | 110km/h | | Leaf spring no. | 8/6+5 | | Model | QL1040BUHWY | | Engine | Model | 4KH1CN6LB (120HP) | | Displacement | 2.99/Diesel | | Emission | EURO V | | Transmission | 5F, 1R, manual operated | | Cab | 100P double cabin | | Tire | 7.00R16 (6+1) | |
| Name | No. | Equipement | Description |
| Alarm warning system | 1 | Long row yellow warning lights | Engineering Yellow |
| 2 | 100W alarm and handheld control | With shouting function |

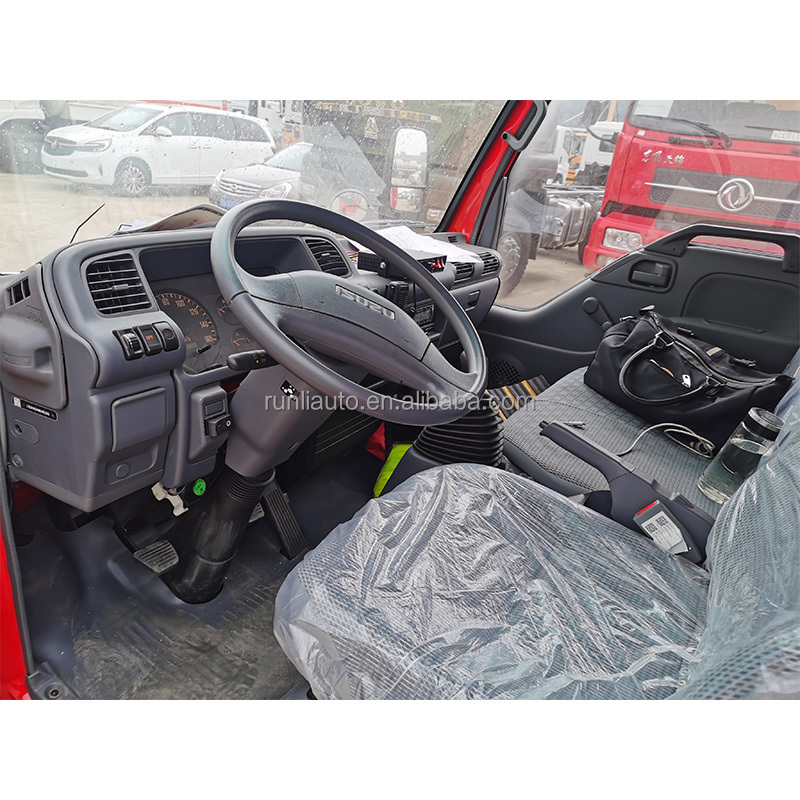

| Cabin | 3 | The cockpit is double row 2+3 seats, with side doors on the left and right for easy entry and exit. | Convenient homework |
| Van body | 4 | The box body is a profile skeleton made of cold-rolled steel plate material | Rain proof, fire resistant, earthquake resistant, with high outer strength |
| 5 | Install two aluminum alloy roller shutter doors on both sides of the box body | Aluminum alloy material |
| 6 | Install an aluminum alloy roller shutter door at the rear of the box | Aluminum alloy material |
| 7 | Aluminum patterned floor inside the carriage | Anti slip, wear-resistant, easy to clean |
| 8 | The front partition of the rear compartment is divided into two compartments, left and right | Size according to announcement |
| 9 | Three layers of profile equipment racks on both sides of the rear of the compartment | Used to place tools |
| 10 | Add baffles on both sides of the equipment rack | Stability that facilitates the storage of tools and equipment |
| Electrical system | 11 | LED lighting on the roof of the carriage | 3 lamps, used for night work lighting |
| 12 | 4 flashing lights on the left and right sides of the exterior of the cabin | A total of 8, yellow, block burst flash |
| 13 | Three flashing lights at the rear of the cabin | 3, yellow, block burst flash |
| other | 14 | Body reinforcement, strengthening | Standard configuration |
| 15 | Tail Gate Ladder | 1 set |
| 16 | Roof rack | Stainless steel, 1 set |
| 17 | Dry powder fire extinguisher | 1 unit |
| 18 | A set of on-board tools | 1 set |
