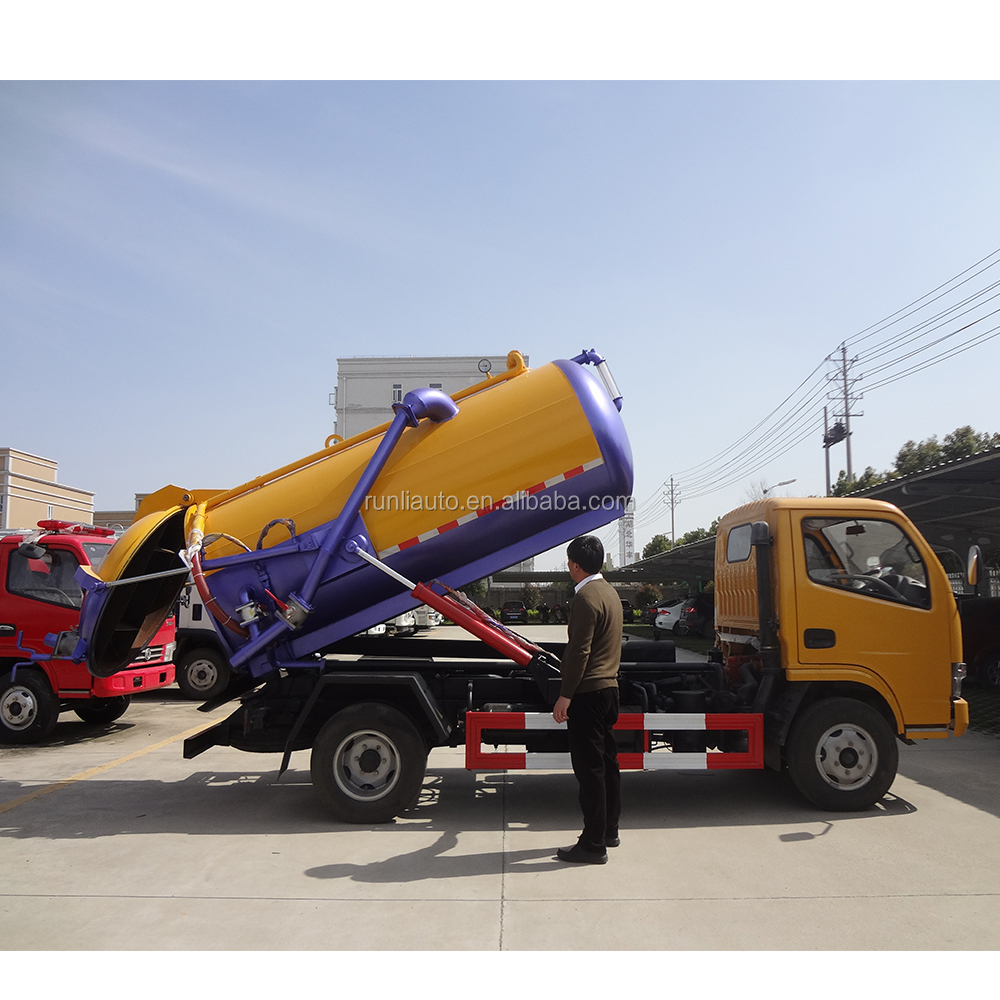

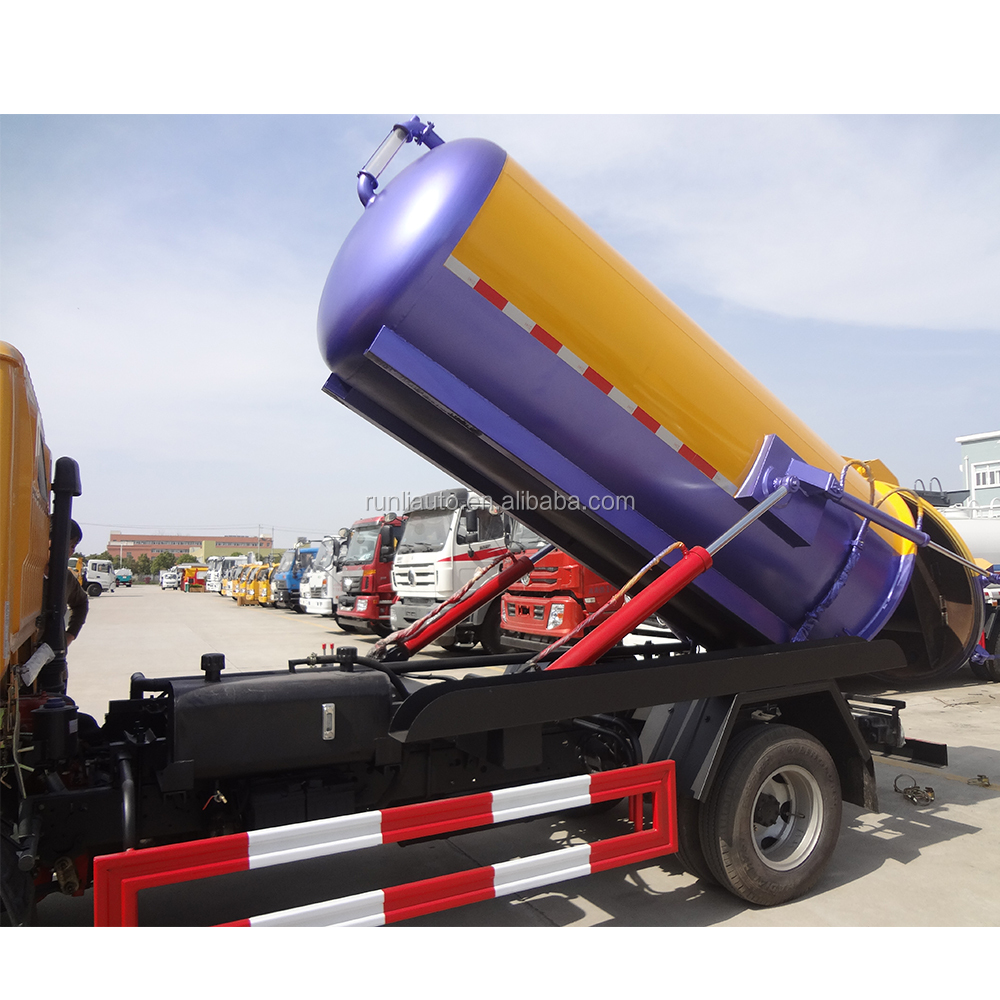

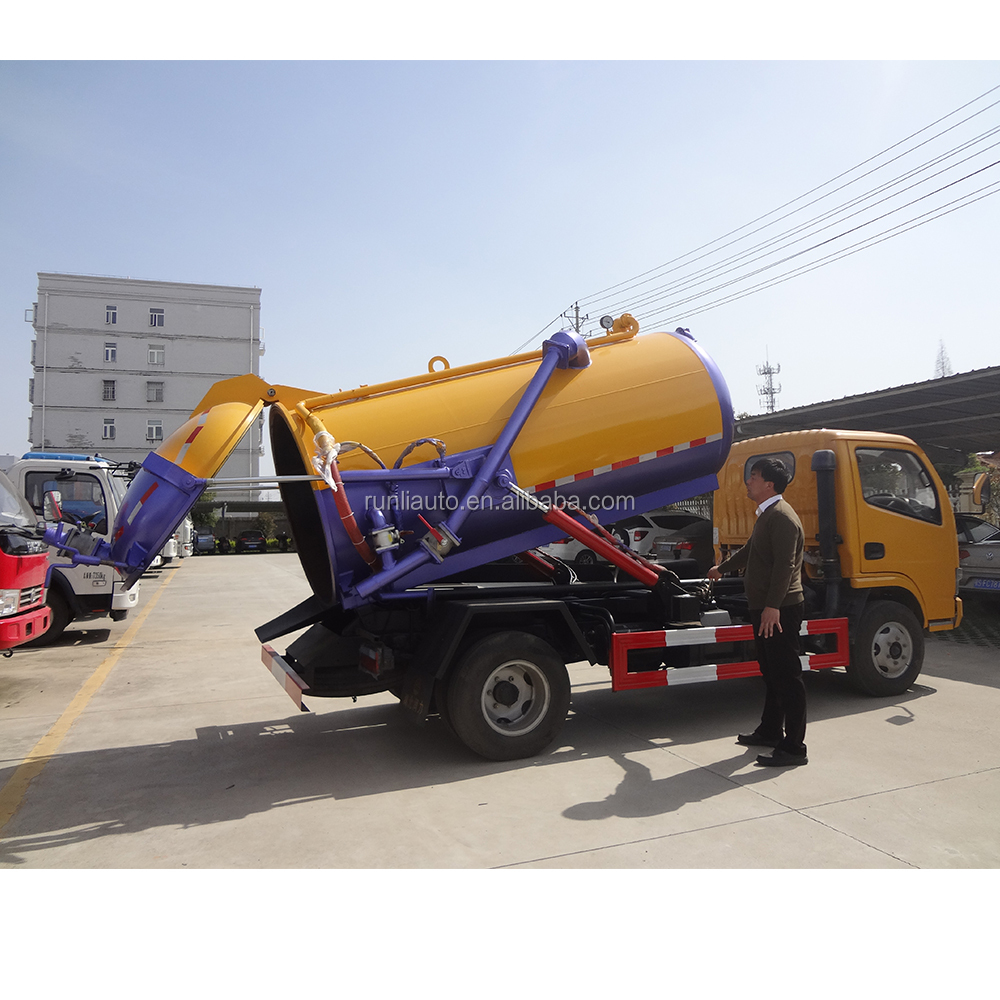

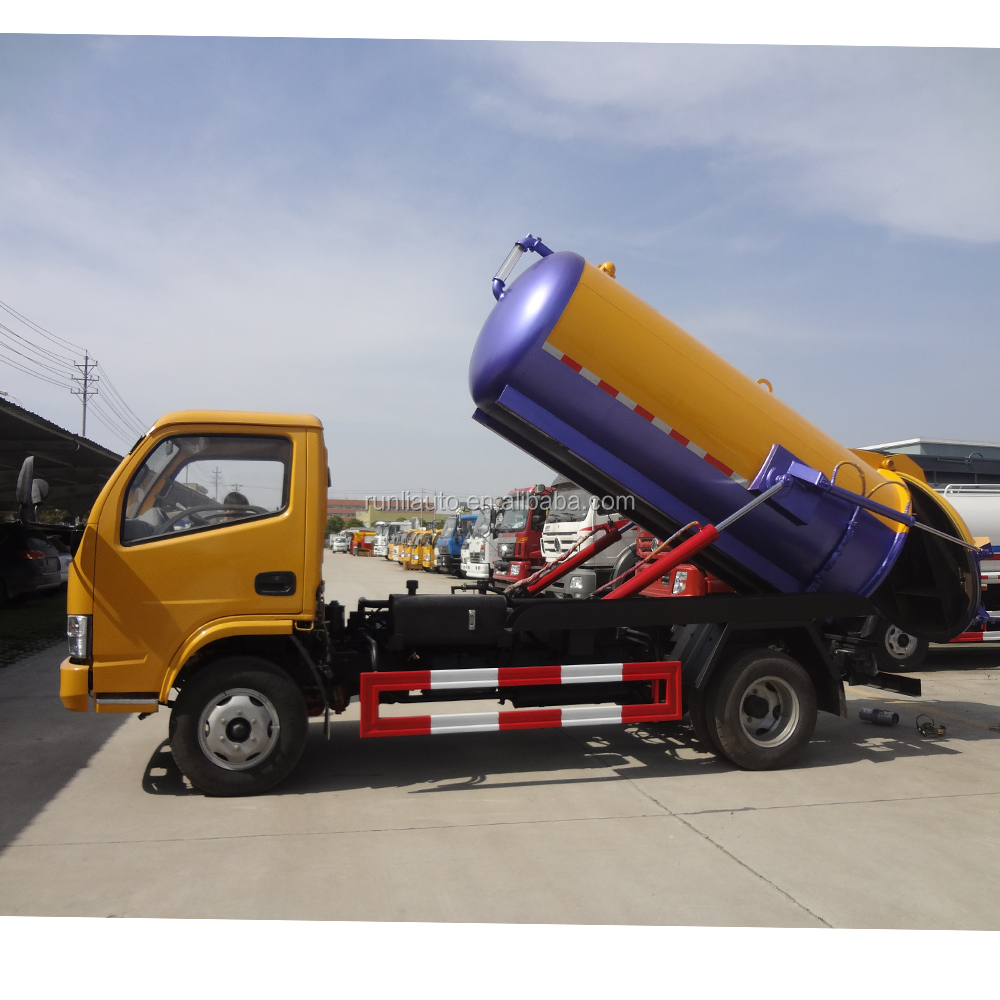

DFAC 4x2 4 cubic meter sewage sucking truck
Why choose this DFAC septic truck :
1. Dongfeng engine, 4 cylinders, engine power 95hp, meet euro 3 or Euro4 emission standard.
2. Tank body is high quality carbon steel, famous brand vacuum pump.
3. Large loading capacity, the body could make 3000 liters to 5000 liters.
4. It's used for dredging the sevage line, it's strong to wash. According to the requirement, it can install the high-pressure vacuum pump, Time for full suction<5min
| sewage sucking truck System Specification |
| Tank | |
| Tank Capacity (m3) | 3-5 |
| Tank Material | Q235A carbon steel (Stainless steel is optional) |
| Tank Shape | Roundness |
| Tank Size ( length * diameter)(mm) | 3500*1500 |
| Vacuum pump | |
| Model | China famous WEILONG (Optional) |
| Max Vertical Suction (m) | ≥8 |
| Absolute Working Pressure (pa) | 8500 |
| Rated Speed | 500 |
| Rated Pumping Speed (L/s) | 98 |
| Pump inlet diameter (mm) | 50 |
| Container Filling Time (s) | ≤5 |
| Container Emptying time (s) | ≤5 |
| Chassis Specification |
| Truck Model | EQ1060 |
| Engine | |
| Model | CY4102-C3F |
| Type | Four-cylinder, water-cooled, mechanical injection |
| Rated power (Hp) | 95 |
| Transmission | |
| Model | DONGFENG |
| Type | 5 Forward & 1 Reverse Speed |
| Travelling | |
| Drive Model | 4 x 2 |
| Steering Wheel Position | Left hand drive |
| Max. Travelling speed | 95 |
| Dimension do | |
| Overall Size (mm) | 5850x 2200 x 2950 |
| Tyre Size | 7.00-16 |
| Wheel Base(mm) | 3300 |
| Weight | |
| Curb Weight (kg) | 4600 |
| Payload Capacity (kg) | 4000 |

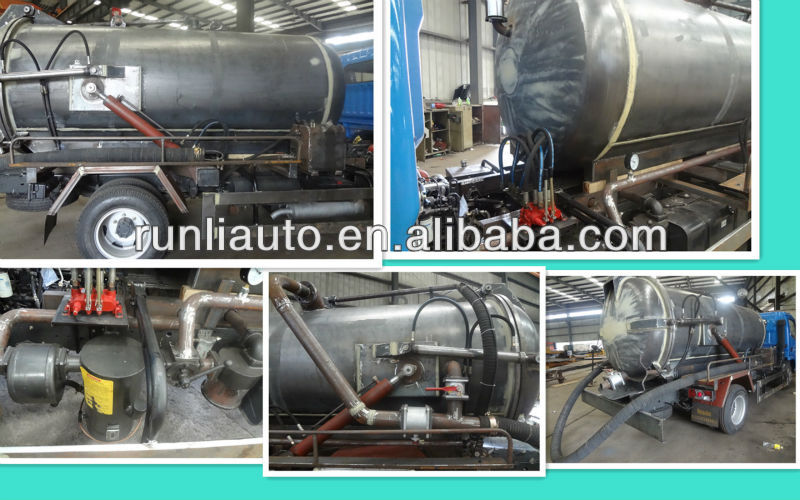

| Super Tank: Head and the tank made by a molding, thickening, anti-high-pressure. Sub frame: Full sub-frame with flexible mounting fixed to the truck chassis by horse bolts. Sub-frame and chassis medium with wooden plates. Vacuum System: Liquid ring vacuum pump, is driven from the PTO on the gearbox, provides high airflows along with high vacuum levels for removing debris above or below liquid surfaces. Engaged and disengaged from drivers cab. Tank Mounting: The truck will be equipped at our expense with a sub frame according to truck manufacturer’s prescriptions. Painting: All steel parts are sand blasted before painting. One anti-corrosion and zinc-rich primer and final painting at customer’s choice of colour.All steel parts are steel blasted before painting. Paint markers according to customer’s demand. Suitable for the transport of non-hazardous waste products and built according to the design rules for vacuum operated waste tankers |
Our service
1. Answer your question within 24 hour.
2. one year of warranty since bill of lading on board date
3. Provide English operation manual or video
4. Free training in our factory if customer need.
Our products scope:
1) Trucks,dump trucks and tipper trucks Heavy duty trucks; side wall trucks; towing trucks; agricultural trucks; cement mixer trucks; bulk cement tank trailers; refrigerator trucks; watering truck; chemical tank trucks; fire truck; garbage truck; wrecker; box truck; oil truck; truck crane; truck mounted aerial work platform and so on.
2) Special-purpose vehicles Trailer; various semi-trailers; flatbed trailers; skeleton trailers; sidewall trailers; semi-container trailers; goose low bed trailers; fuel tank trailers.
Making orders:
If you are establishing business with us in this line, please let us know your specific requirements, meanwhile we produce products according to your descriptions.
We assure your order from you will have our immediate produce and prompt delivery.
Company Information
HUBEI RUNLI SPECIAL AUTOMOBILE CO.,LTD was founded in 1997, covers an area of 1400 square meter, which is the first domestic private enterprises entering the special automobile industry. The company has focused on all kinds of special automobile R & D, manufacturing, sales and service, two special automobile production lines of the company has the most advanced tank trucks and multi-function rescue fire trucks.
The company is special automobile production base of Dongfeng, Jiefang, Foton, Sino truck, Shanxi Auto etc, and is the strategic partners with the Sinopec and PetroChina.
Certification
Canton Fair & Cutomers visiting
We also can supply other brand, Eg: Dongfeng(DFAC),FOTON(FORLAND),FAW,JMC,IVCEO(YUEJIN),ISUZU,NISSAN,SINOTRUCK,SHACMAN,NORTH BENZ..
If you have more requirment ,please kindly let Kilen Chen know
Contact information
If you have any questions or need much more information, pls do not hesitate to contact with me.
More specs , photos, price, delivery time and other need,
please contact with Kilen.
Hotline(whatsapp): 0086 155 8688 7678
QQ number: 676459215 Skype:kilen.automobile
Welcome to visit our company! Suizhou city, Hubei Province.
