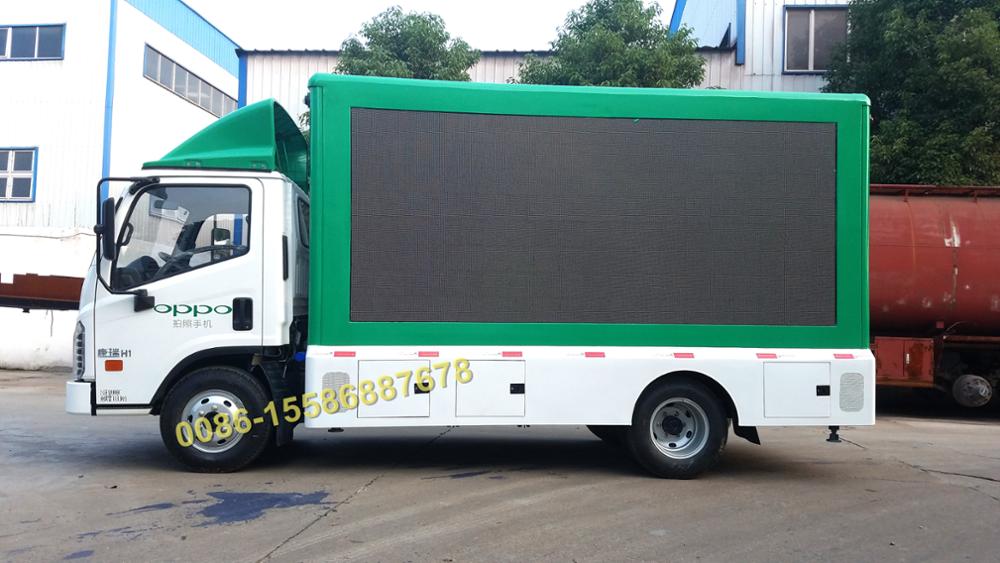

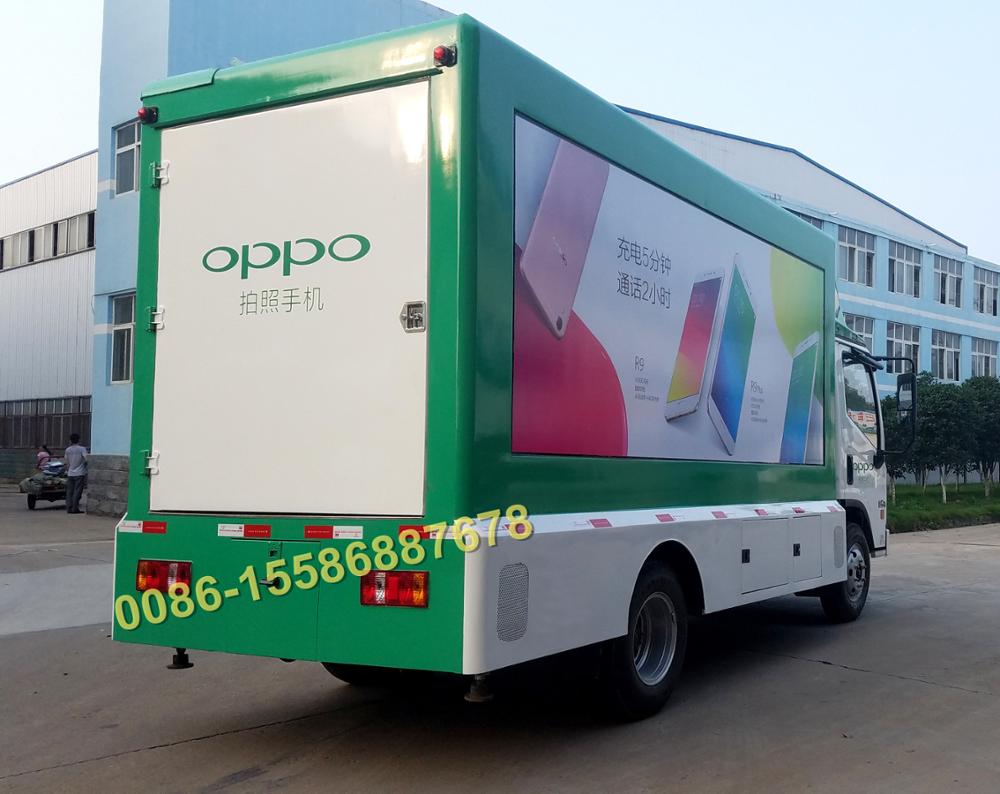

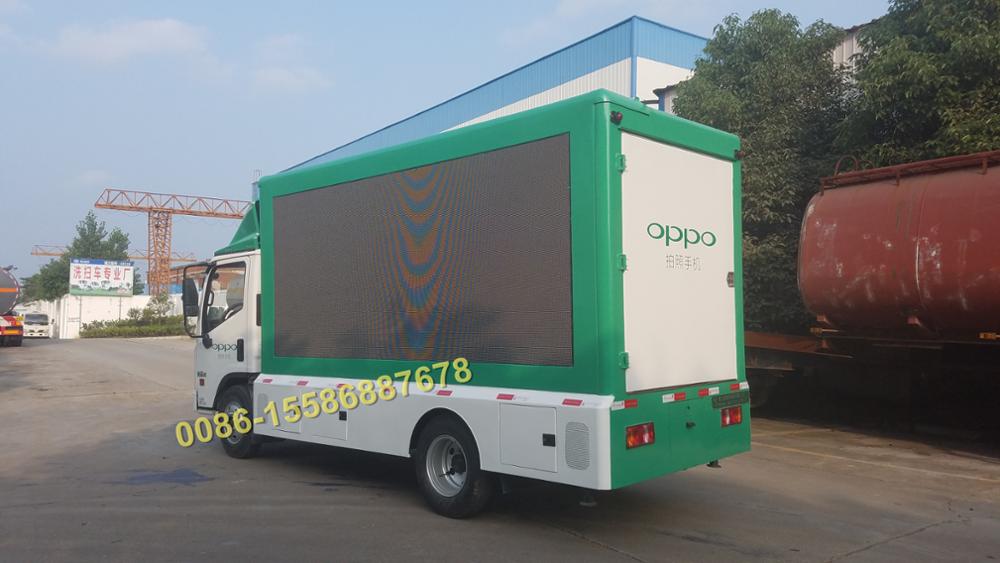

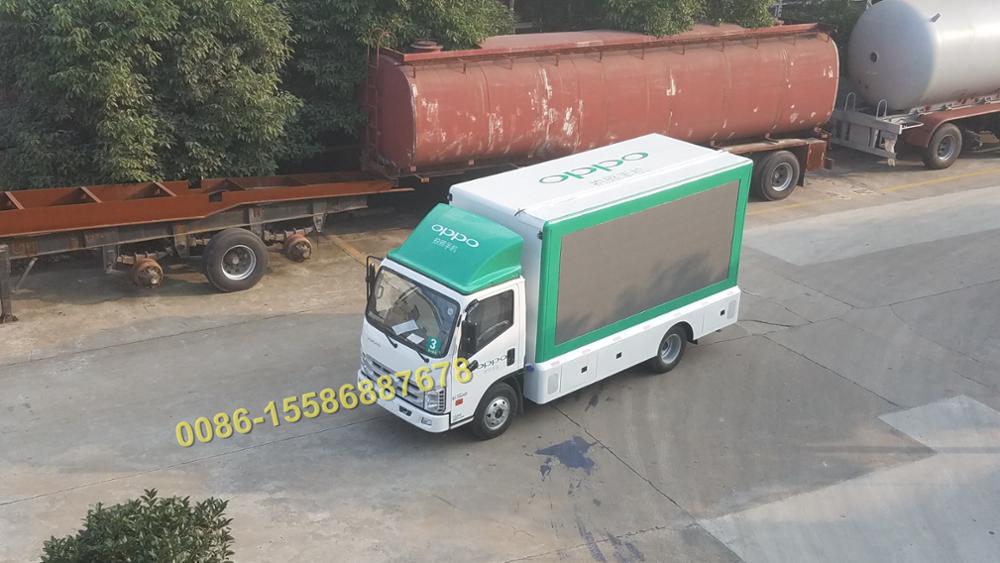

OPPO advertising truck FORLAND 4*2 P8 led mobile advertising trucks for sale
Technical Parameters
1) Chassis dimension length/width/height (mm): 6970×2240×2450 mm
2) Chassis model: BJ1043V9JEA-A
3) Wheelbase (mm): 3360mm
4) Tire specification: 8.25-16 nylon tire (6 units)
5) Fuel type: Diesel
6) Engine: 4B2-95C40 (Turbo Diesel)
7) Exhaust/ Power (ml/kw): 4200ml/96kw
8) Engine Manufacturer: Guangxi Yuchai Engine group

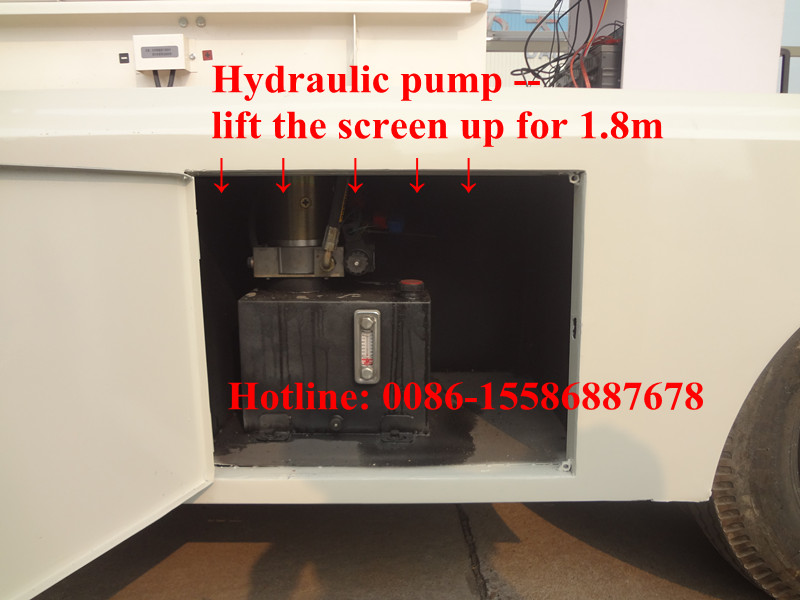

9) Hydraulic pump which can lift the screen up for 1.8m
10) Engine: OM15CY (OUMA)
Rated power: 15/15KVA
HZ:50 HZ
Rated voltage:230V
Rated current:65.2A
PF:1.0
Rated rotate speed:1500r/min
Phase:Single
Weight: 480kgs
11) Screen Parameter: P8
Screen size: 5.76 x 2.0 m
12) Four hydraulic legs
13) At the top of the compartment, equipped one cooling exhaust fan,220V
14) Waterproof audio equipment (four units)
15) LED display specification
Pixel pitch: 8MM
Sealed box material: Iron
Resolution: 1536 x 896
Pixel configuration: 15625 dots/ m2
Screen size: 5.76 x 2.0 m
Screen weight: 40KG/ m2
Screen pixels: 1376256
Display brightness: ≥9000cd/ m2
Drive Mode: 1/4 scan , constant current
Grey Scale: RGB each 256 grades
Refresh Rate: >720HZ
16) Sending card/Receiving card/LED studio (software)-control systerm: Novastar brand
17) Spare Parts: Extra three pcs LED moulds (128mm×256mm×20mm)
White flat cable x 20pcs
Packaging & Shipping
Packaging: Naked, waxing on ro-ro or bulk ship or by 20GP, 40GP, 40HQ, 40FR and so on;
Payment :30% deposit by T/T,before leaving factory should pay the 70% balance by T/T;
Loading port & border:
Shanghai,Tianjin,Guangzhou,Qingdao,Erenhot,Horgos or according to your order;
Our products scope:
Our service
1. Answer your question within 24 hour.
2. one year of warranty since bill of lading on board date
3. Provide English operation manual or video
4. Free training in our factory if customer need.
1) Trucks,dump trucks and tipper trucks Heavy duty trucks; side wall trucks; towing trucks; agricultural trucks; cement mixer trucks; bulk cement tank trailers; refrigerator trucks; watering truck; chemical tank trucks; fire truck; garbage truck; wrecker; box truck; oil truck; truck crane; truck mounted aerial work platform and so on.
2) Special-purpose vehicles Trailer; various semi-trailers; flatbed trailers; skeleton trailers; sidewall trailers; semi-container trailers; goose low bed trailers; fuel tank trailers.
Making orders:
If you are establishing business with us in this line, please let us know your specific requirements, meanwhile we produce products according to your descriptions.
We assure your order from you will have our immediate produce and prompt delivery.
Company Information
HUBEI RUNLI SPECIAL AUTOMOBILE CO.,LTD was founded in 1997, covers an area of 1400 square meter, which is the first domestic private enterprises entering the special automobile industry. The company has focused on all kinds of special automobile R & D, manufacturing, sales and service, two special automobile production lines of the company has the most advanced tank trucks and multi-function rescue fire trucks.
The company is special automobile production base of Dongfeng, Jiefang, Foton, Sino truck, Shanxi Auto etc, and is the strategic partners with the Sinopec and PetroChina.
