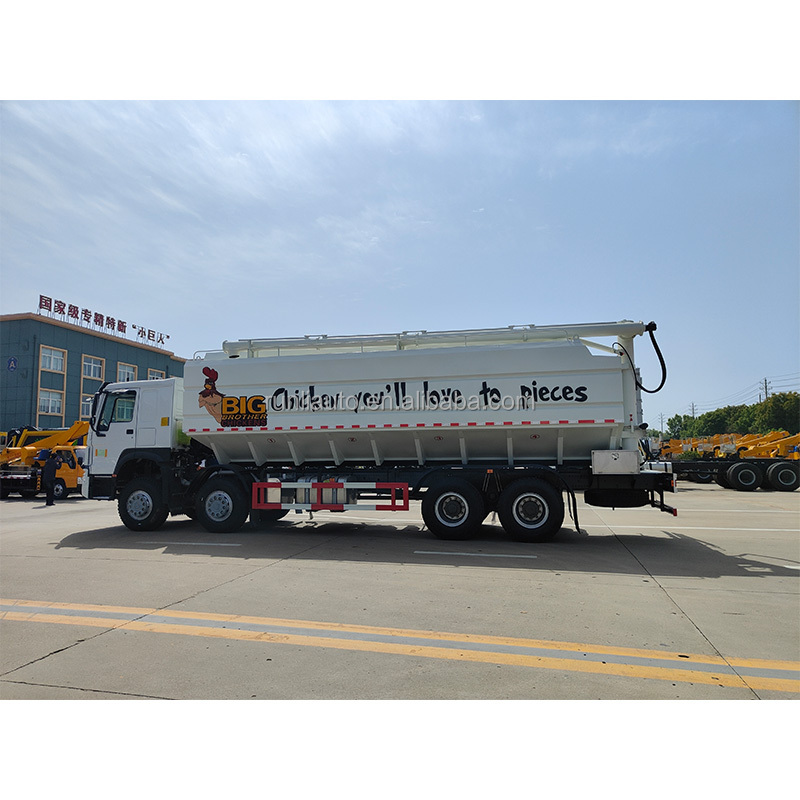

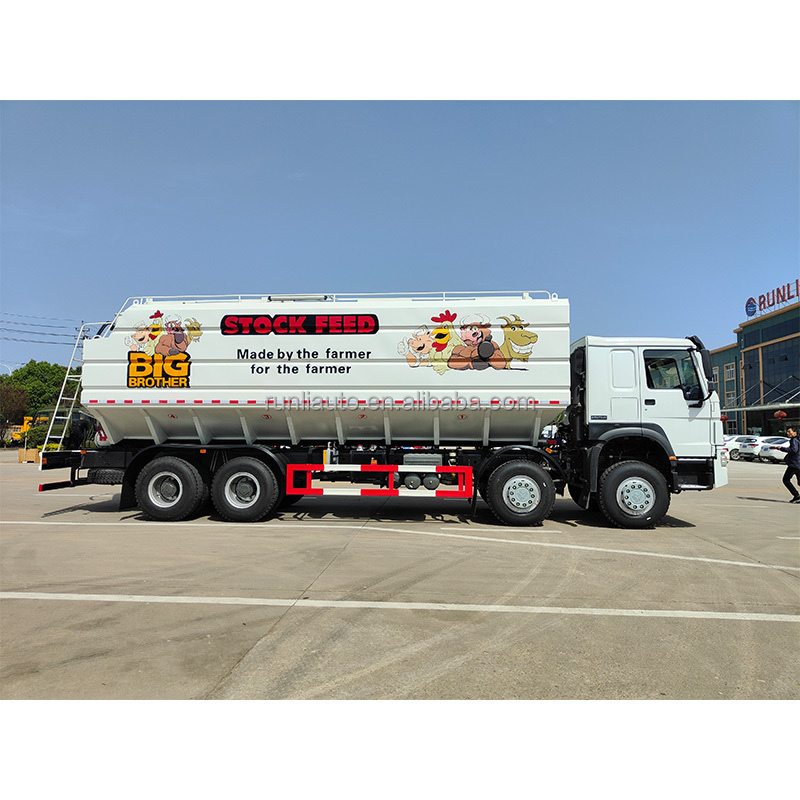

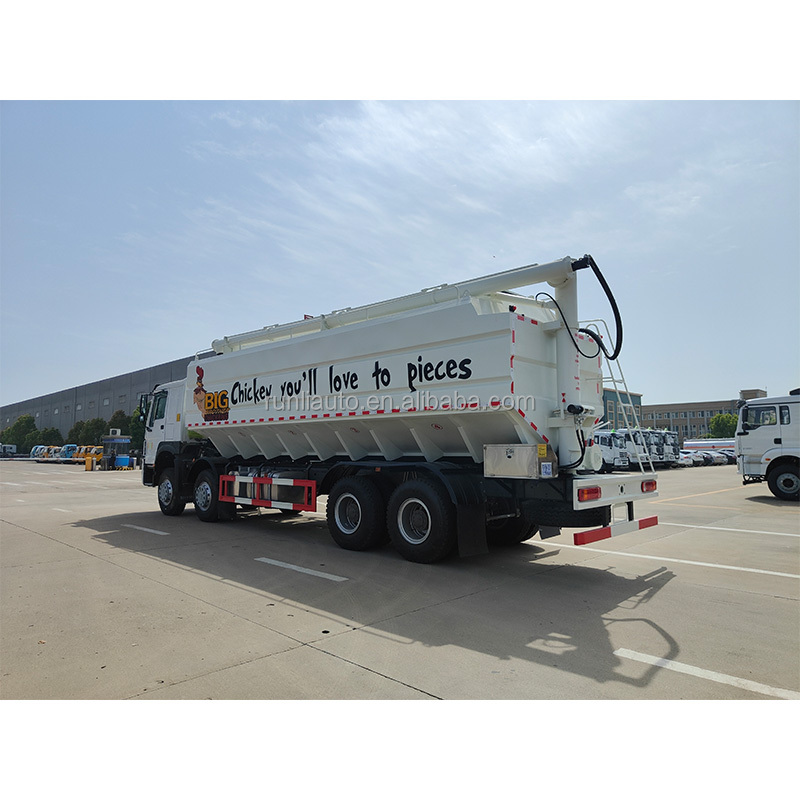

Sinotruk LHD RHD Livestock Feed Truck Animal 6X4 Bulk Feed Truck

Dimension(L×W ×H)(unloaded)(mm)

12000×2550×3995

Approaching angle/Departure angle(°)

16/15

Overhang(front/rear) (mm)

1500/2200

Wheel base (mm)

1800+4600+1350

Max speed(km/h)

102

Total weight(kg)

31000

Curb weight(kg)

15300

Engine

Model

WP12.400E201,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling

Fuel type

Diesel

Power, max

(kw/rpm)

294/2100

Emission

EURO 2

Fuel tanker capacity (L)

400

Transmission

Model

HW19712,12 forward&2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Front axle

9.5 tons

Rear axle

16 tons double

Tyre

12R22.5

Electrical system

Battery

2X12V/180Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

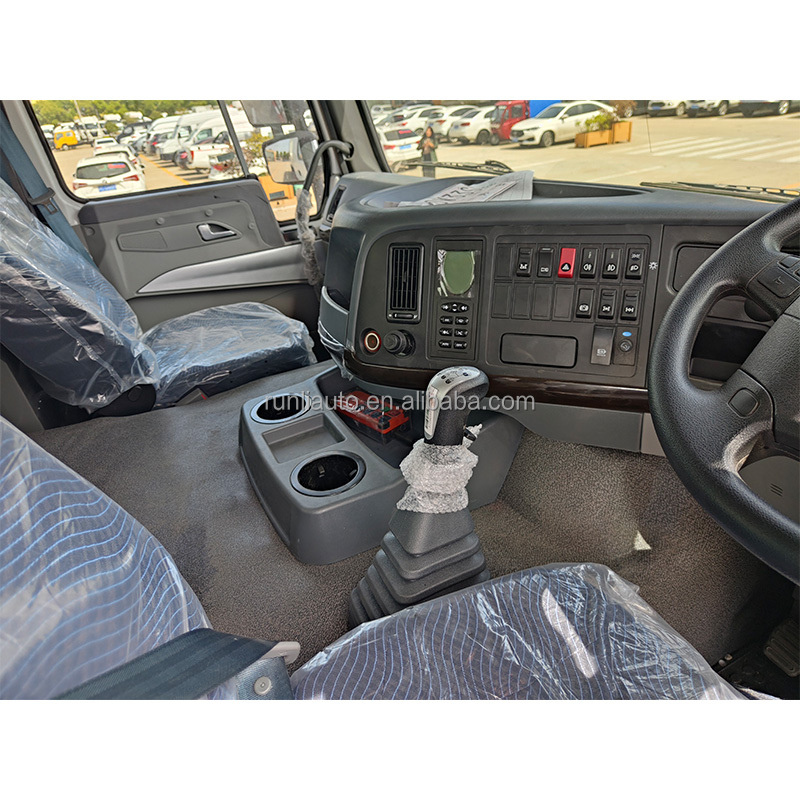

Cab

HOWO76 Standard cab,8X4 RHD

Upper specification

Apartment

4

Tank size(mm)

9000x2550x2350

Discharge rate(kg/min)

550-650

Swivel Angle of movable

discharging crane

±180 °

Maximum distance of horizontal convey(m)

7

Maximum elevation Angle of movable discharging crane

60 °

Tank volume

40m³

Swivel Angle of movable discharging crane(m)

8.8

Packing auger diameter(mm)

273

Loading tons

12.0 tons

Discharge time(min)

35

Residual rate (%)

0.01

Discharge principle

Hydraulic twist,

blade rotation

Packing auger material

Alloy steel

Discharge system(blade rotate)

Horizontal twisted dragon (horizontal tank bottom feeding 273mm), vertical twisted dragon (feeding 273mm), movable twisted dragon (top discharging 219mm)
