Manufacture Japan GIGA 1suzu 6x4 12 Ton Truck Crane

Name: Manufacture Japan GIGA 1suzu 6x4 12 Ton Truck Crane
Brand: 1suzu GIGA
Price: 219 USD

Manufacture Japan GIGA 1suzu 6x4 12 Ton Truck Crane Manufactures

Application : optional

Rated Loading Capacity : 30 Ton

Rated Lifting Moment : 10Ton.m

Max. Lifting Height : 15.6 meters

Span : 360

Place of Origin : Hubei, China

Brand Name : 1suzu GIGA

Warranty : 12 months

Hydraulic Cylinder Brand : Hengli

Hydraulic Pump Brand : Hengli

Hydraulic Valve Brand : Hengli

Engine Brand : ISUZU

UNIQUE SELLING POINT : High operating efficiency

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Core Components : motor, Bearing, Gear, Gearbox, Engine, PLC

Weight (KG) : 3970 kg

color : optional

Brand : Accepted

Feature: Truck Crane : 10ton Mounted Truck Crane

Product name : Telescoping Boom

Crane type : Truck Crane Mobile Crane Hydraulic Crane

Chassis brand : Sino Truck Howo

Driving type : 6*4

Hydraulic parts : Telescopic Boom Mobile Crane Made

Variable box model : Fast 8 Speed Transmission High

Type of Winch the Crane Can Match : Hand Operated Winch

Feature : TRUCK CRANE

Showroom Location : mogolia

Condition : New

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Price : CN¥219,090.21/sets >=1 sets

Contact Now

Product Description

Manufacture Japan GIGA 1suzu 6x4 12 Ton Truck Crane

Specification

SQS300-4


Model	SQS300-4
Max lifting capacity(kg)	12000
Max.outreach	15.8
Max. lifting height	17.8
Rated Flow of Hydraulic System L/min	63
Oil tank capacity	200
Rated Pressure of Hydraulic System	26
Recommend Power	52
Installation space	980
Slewing angle	360°
Crane Weight	5600
Boom section	octangle
Leg structure	Double cavity telescopic square leg

Vehicle Parameters	Overall Dimension(L x W x H)	10100×2550×3850
	Curb Weight:	17500Kg
	GVW:	25000Kg
	Wheelbase:	3985+1370mm
	Drive Type:	6x4
	Brake System:	Air Brake
	Cylinder	6 In-line
	Engine Model:	6UZ1-TCG51
	Max output:	257Kw
	Displacement:	9839cc
	Horsepower:	350HP
	Rated Speed:	2100rpm
	Max torque:	1422N.m
	Transmission type:	12 Speed Manual
Cabin	Cabin Type:	Plat roof single sleeper
	Front Seat:	2
Chassis	Front Wheel Distance:	2060mm
	Rear Wheel Distance:	1855/1855mm
	Axle Loads:	Three Axles
	Rear Axle Ratio:	5.571
	Tires:	11(Including spare tire)
	Tire Model:	12R22.5
Standard Configuration:	1	Power Steering
	2	AC
	3	Retro-reflective Marking
	4	Tubeless Tire
	5	ABS
	6	Free Maintenance Battery
	7	Central Lock
	8	Power Window
	9	Data Recorder
	10	Air suspension cabin
	11	Air suspension seat
	12	Front Chrome Kit
	13	Aluminum Gas Storage Tank

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Product Tags:

6x4 crane truck

6x4 truck with crane

12 ton crane truck

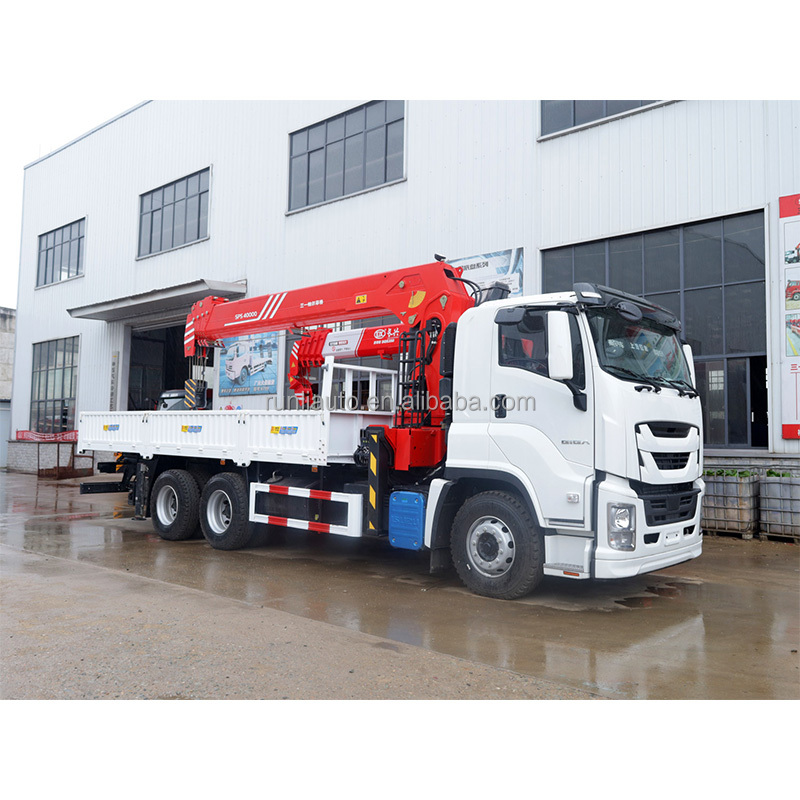

Manufacture Japan GIGA 1suzu 6x4 12 Ton Truck Crane Images
