FAW 6x4 Crane Truck Mounted 12 Tons

Name: FAW 6x4 Crane Truck Mounted 12 Tons
Brand: 1suzu GIGA
Price: 219 USD

FAW 6x4 Crane Truck Mounted 12 Tons Manufactures

Application : optional

Rated Loading Capacity : 30 Ton

Rated Lifting Moment : 10Ton.m

Max. Lifting Height : 15.6 meters

Span : 360

Place of Origin : Hubei, China

Brand Name : 1suzu GIGA

Warranty : 12 months

Hydraulic Cylinder Brand : Hengli

Hydraulic Pump Brand : Hengli

Hydraulic Valve Brand : Hengli

Engine Brand : ISUZU

UNIQUE SELLING POINT : High operating efficiency

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Core Components : motor, Bearing, Gear, Gearbox, Engine, PLC

Weight (KG) : 3970 kg

color : optional

Brand : Accepted

Feature: Truck Crane : 10ton Mounted Truck Crane

Product name : Telescoping Boom

Crane type : Truck Crane Mobile Crane Hydraulic Crane

Chassis brand : Sino Truck Howo

Driving type : 6*4

Hydraulic parts : Telescopic Boom Mobile Crane Made

Variable box model : Fast 8 Speed Transmission High

Type of Winch the Crane Can Match : Hand Operated Winch

Feature : TRUCK CRANE

Condition : New

Warranty of core components : 1 Year

Price : CN¥219,090.21/sets >=1 sets

Contact Now

Product Description

FAW 6x4 cargo truck with 12 tons crane
Engine
Engine model	WP10.270E32
Emission standards	EURO 3
Engine type	Diesel engine
Engine displacement (L)	9.726
Rated power of engine (kw/hps)	199
Maximum torque (N.m/rpm)	700/1500
Gearbox
Gearbox model	Manual 9JS119T
Rear axle
Rear axle model/load (T)	double10T
Rear axle speed ratio	5.428
Cabin type	Left side driving, flat head,one row with sleeping bed, electric window
Drive form	6x4
Tire type/number	11.00R20/10+1 pcs
Weight parameter
Curb weight (Kg)	12155
Rated load capacity (Kg)	20000
Performance parameter
Maximum speed (km/h)	95
Minimum ground clearance (mm)	300
Dimension parameters
Overall dimensions (LxWxH)mm	11900x2500x3800
Cargo box dimension(mm)	8500x2300x800
Wheelbase(mm)	5700+1350
Rated voltage (V)	24

Model	SQS300-4
Max lifting capacity(kg)	12000
Max.outreach	15.8
Max. lifting height	17.8
Rated Flow of Hydraulic System L/min	63
Oil tank capacity	200
Rated Pressure of Hydraulic System	26
Recommend Power	52
Installation space	980
Slewing angle	360°
Crane Weight	5600
Boom section	octangle
Leg structure	Double cavity telescopic square leg

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Product Tags:

6x4 crane truck mounted

6x4 truck mounted mobile crane

15.6 meters crane truck mounted

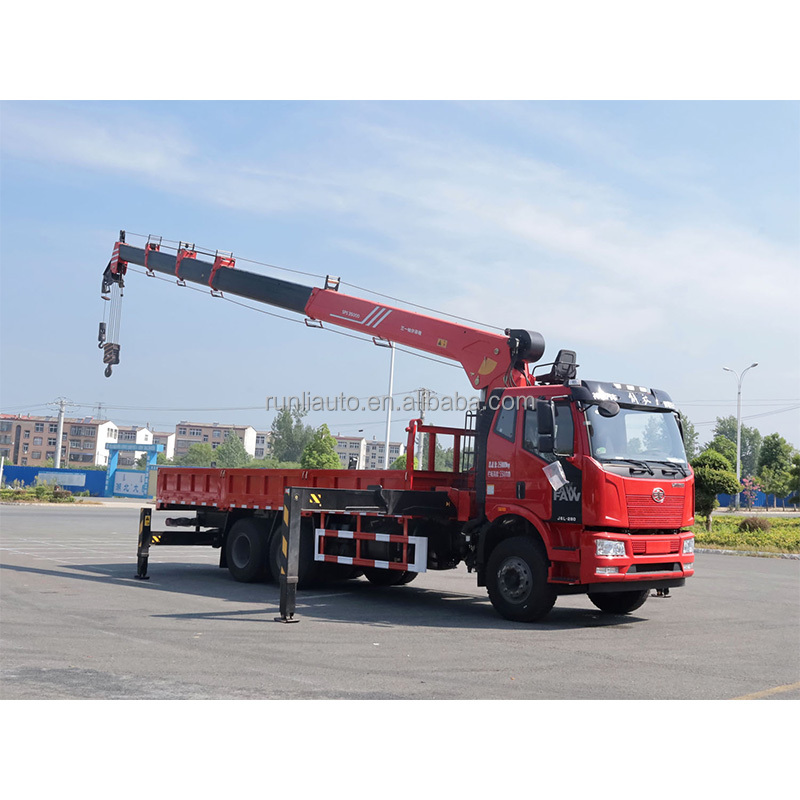

FAW 6x4 Crane Truck Mounted 12 Tons Images
