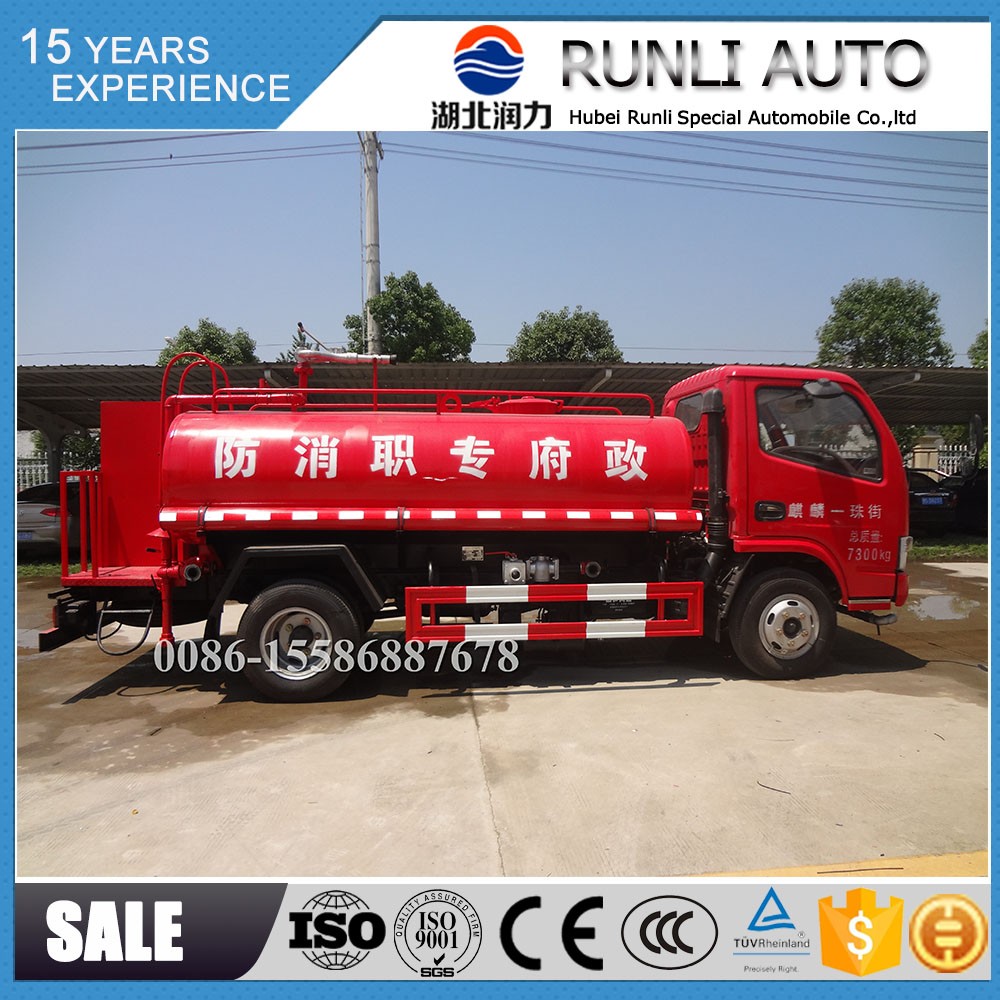

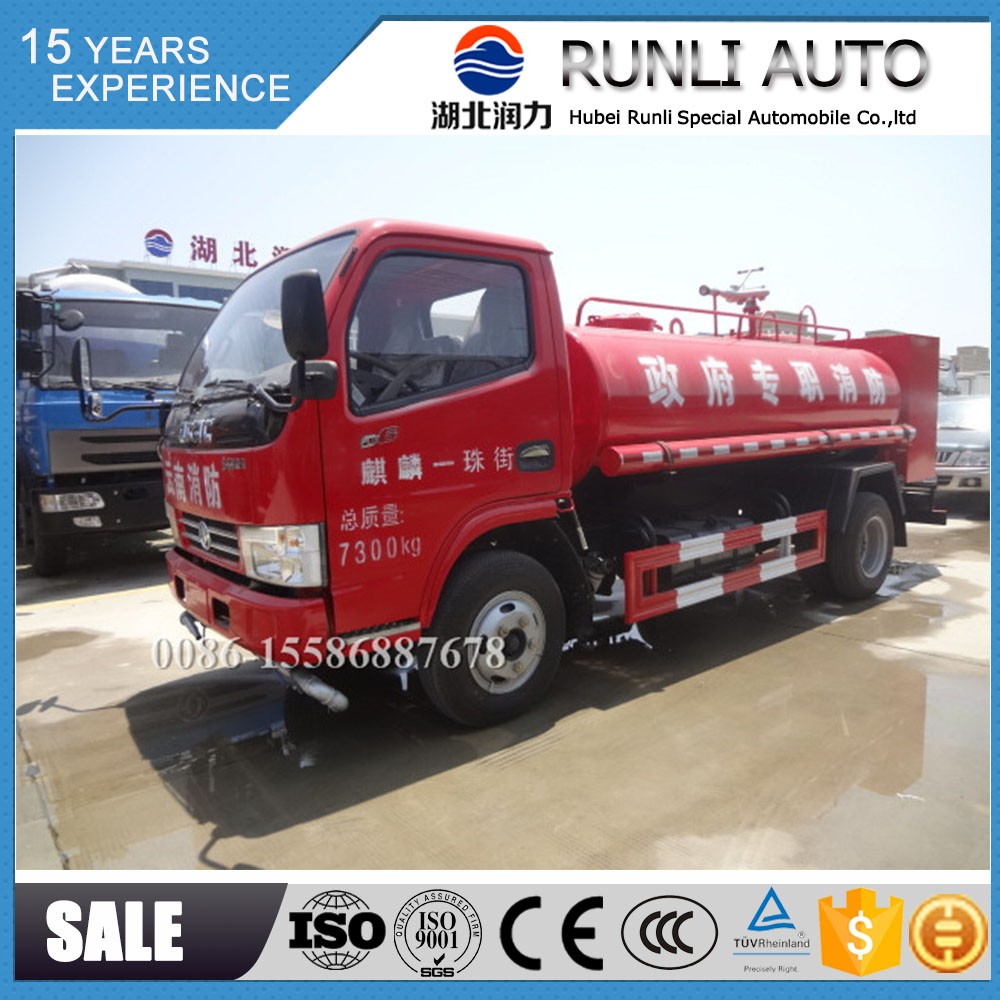

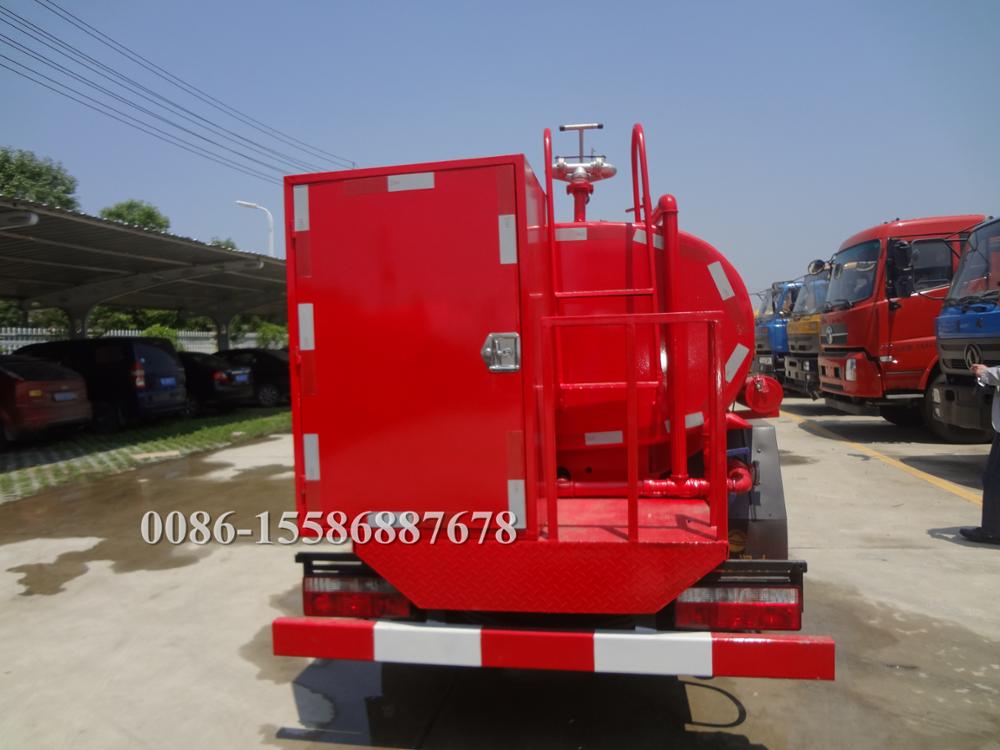

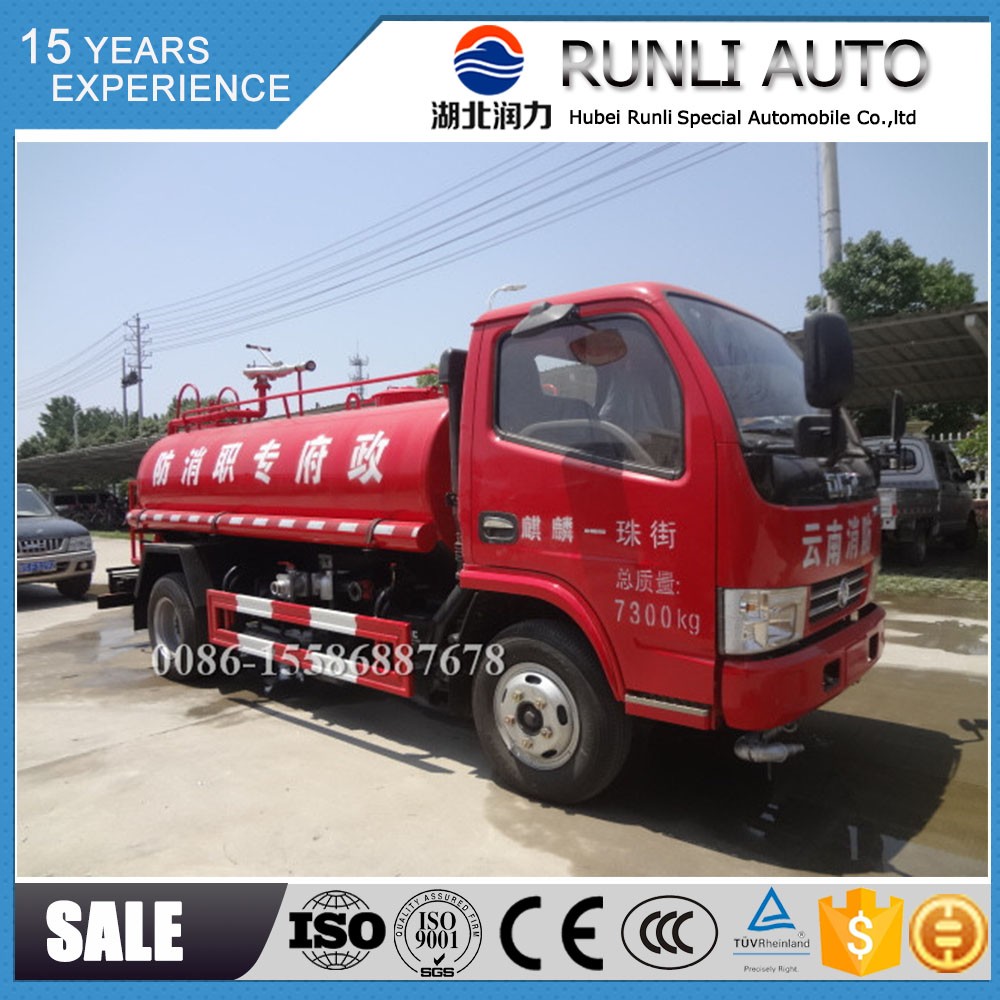

1500-3000 liters water bowser Fire truck tender portable pump fire truck
Type of fire pump : Centrifugal pump
Minimum fire pressure : 1.0MPa
Minimum fire pump capacity : 30L/s
Fire fighting pump suction depth > 7m
Fire fighting pump suction time < 35s
Delivery outlet (B/S) type : 65mm (21/2 inch)
Fire fighting nozzle range > 55m
Rotation angle of fire fighting: 360

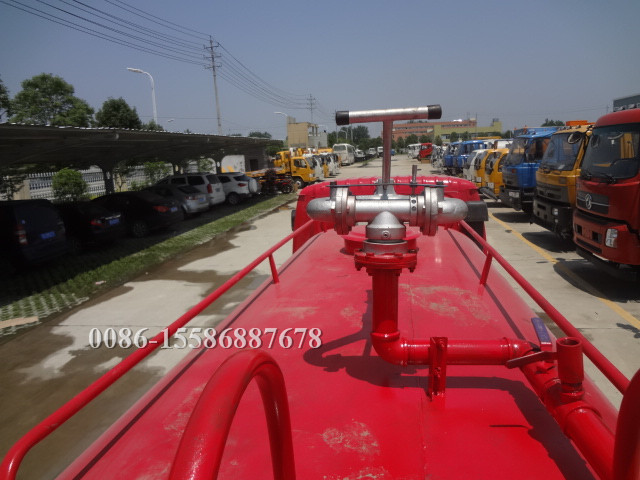

Turret nozzle
Pipe line (inlet) : 4”one on both side 2
Pipe line (outlet) : 2½”two on both side 2
Vehicle Main Parameters:
| Main technical parameter |
| Truck origin | Hubei Runli special automobile Co.,Ltd. |
| Truck name | fire fighting truck price | Product No. | |
| Max. Total mass(kg) | 6495 | Tank capacity(M3) | 4.5 |
| Rated Loading mass(kg) | 3000 | External dimensions (L×W×H)(mm) | 5950×1950×2150 |
| Kerb mass(kg) | 3300 | Cargo dimensions | |
| | (L×W×H)(mm) |
| Cab seats | 3 | Loading mass Utilization factor | |
| Approach/departure angle | 14/13 | F/R overhang | 1032/1618 |
| Number of axles | 2 | Wheelbase(mm) | 3300 |
| Axle loading(kg) | 2845/3650 | Max speed(km/h) | 80 |
| chassis technical parameter |
| Chassis model | EQ1060 | Chassis name |
| brand | Dongfeng | |
| Fuel of type | Diesel | |
| Emission standards | GB3847-2005,GB17691-2005 |
| Engine model | manufacture | Displacement(ml) |
| SD4BW70-3R | Jiangsu Sida Machine group | 2545ml/70kw |
| | | | |
1500-3000 liters water bowser Fire truck tender portable pump fire truck
Site photos
Factory Ability Show
Different Fire Truck Series
Water/Foam Fire Truck Tools and Accessories:
Our products scope:
1) Trucks,dump trucks and tipper trucks Heavy duty trucks; side wall trucks; towing trucks; agricultural trucks; cement mixer trucks; bulk cement tank trailers; refrigerator trucks; watering truck; chemical tank trucks; fire truck; garbage truck; wrecker; box truck; oil truck; truck crane; truck mounted aerial work platform and so on.
2) Special-purpose vehicles Trailer; various semi-trailers; flatbed trailers; skeleton trailers; sidewall trailers; semi-container trailers; goose low bed trailers; fuel tank trailers.
Making orders:
If you are establishing business with us in this line, please let us know your specific requirements, meanwhile we produce products according to your descriptions.
We assure your order from you will have our immediate produce and prompt delivery.
We also can supply other brand, Eg: Dongfeng(DFAC),FOTON(FORLAND),FAW,JMC,IVCEO(YUEJIN),ISUZU,NISSAN,SINOTRUCK,SHACMAN,NORTH BENZ..
If you have more requirment ,please kindly let Kilen Chen know
Contact information
HUBEI RUNLI SPECIAL AUTOMOBILE CO.,LTD was founded in 1997, covers an area of 1400 square meter, which is the first domestic private enterprises entering the special automobile industry. The company has focused on all kinds of special automobile R & D, manufacturing, sales and service, two special automobile production lines of the company has the most advanced tank trucks and multi-function rescue fire trucks.
The company is special automobile production base of Dongfeng, Jiefang, Foton, Sino truck, Shanxi Auto etc, and is the strategic partners with the Sinopec and PetroChina.
If you have any questions or need much more information, pls do not hesitate to contact with me.
More specs , photos, price, delivery time and other need,
please contact with Kilen.
Hotline: 0086 155 8688 7678
QQ number: 676459215 Skype:kilen.automobile
Welcome to visit our company! Suizhou city, Hubei Province.
