Cheaper Price NKR ISUZU Mini Fire Truck 3Tons Water Tanker Fire Fighting Truck for Sales

Hubei Runli Special Automobile Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Cheaper Price NKR ISUZU Mini Fire Truck 3Tons Water Tanker Fire Fighting Truck for Sales

Drive Wheel : 4X2

Type : Tanker

Transmission Type : Manual

Condition : New

Horsepower : < 150hp

Tank Capacity : 3001 - 5000L

Emission Standard : EURO 5

Fuel Type : Diesel

Max. Work Height : 55

Size : 6360*2000*2740mm

Place of Origin : Hubei, China

Brand Name : ISUZU

Mini Fire Truck : Water Tanker Fire Fighting Truck

ISUZU Fire Truck : 4KH1CN5HS 130HP

Price : CN¥227,767.05/units 1-4 units

Contact Now

Product Description

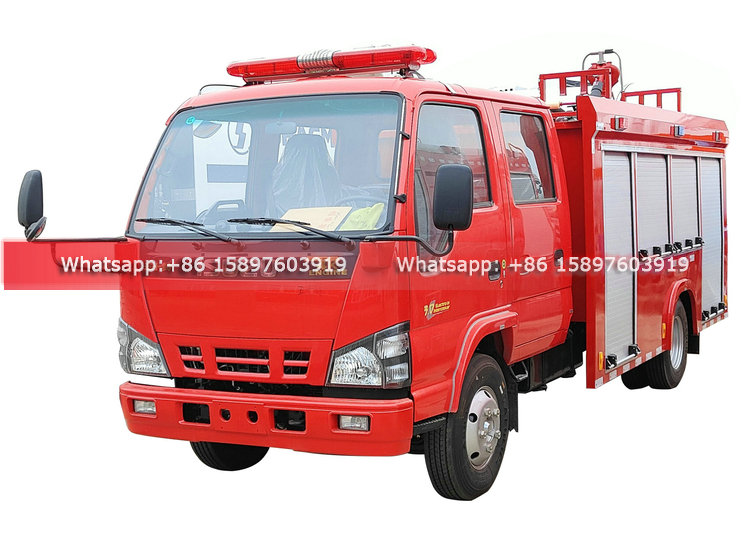

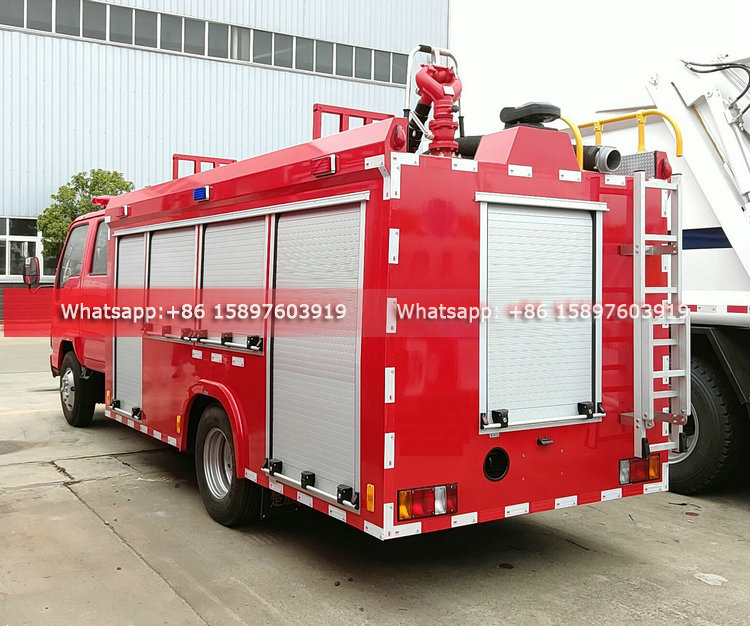

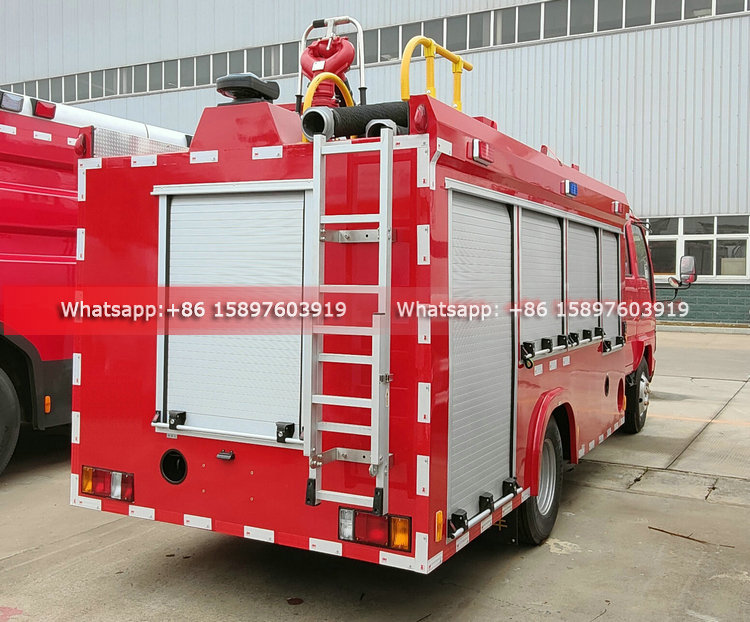

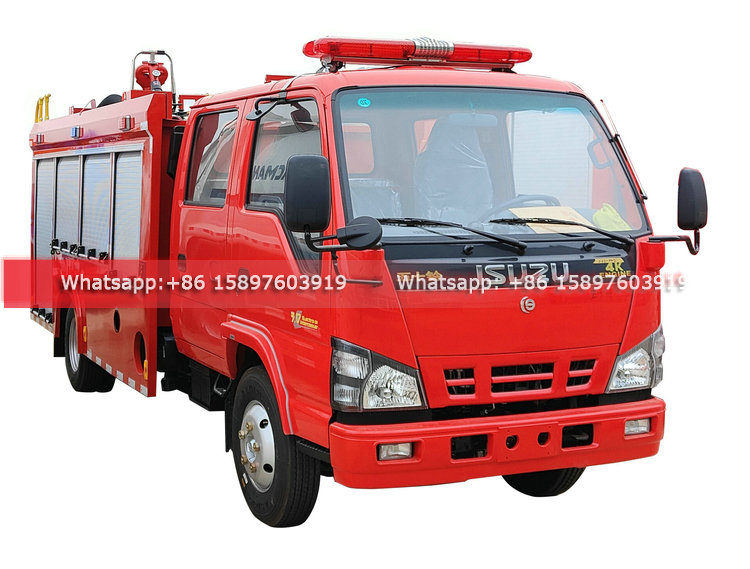

Cheaper Price NKR ISUZU Mini Fire Truck 3Tons Water Tanker Fire Fighting Truck for Sales
Cheaper Price NKR ISUZU Mini Fire Truck 3Tons Water Tanker Fire Fighting Truck for Sales
Cheaper Price NKR ISUZU Mini Fire Truck 3Tons Water Tanker Fire Fighting Truck for Sales
Cheaper Price NKR ISUZU Mini Fire Truck 3Tons Water Tanker Fire Fighting Truck for Sales
Cheaper Price NKR ISUZU Mini Fire Truck 3Tons Water Tanker Fire Fighting Truck for Sales
Cheaper Price NKR ISUZU Mini Fire Truck 3Tons Water Tanker Fire Fighting Truck for Sales
Cheaper Price NKR ISUZU Mini Fire Truck 3Tons Water Tanker Fire Fighting Truck for Sales
Specification
ISUZU Fire Truck
General parameter
Vehicle Brand
ISUZU
Overall Dimension
6360×2000×2740mm
Rated Payload
3000kgs
Kerb Weight
4175kgs
Cab
Cabin
Four doors , power steering
Air Condition
With

Engine
Model/Rated Power
4KH1CN5HS
Displacement/ power
2999ML / 96KW/130HP
Emission Standard
Euro 5
manufacturer
ISUZU motor Co., Ltd.
Diesel 4-stroke, 4-cylnder in line with water cooling, turbo charging
Chassis
driving type
4*2
Wheel base
3360mm
Front/rear tread
1504/1425
Front axle
2.0T front axle
Rear axle
4.8T rear axle
Brake system
Oil brake with Vacuum booster pump
Gear box
ISUZU MSB five forwards
Number of leaf spring of suspension
8/6+5
Type & Size of Tyre
7.00R16
Max Speed
90-120Km/h
Liquid tanker
Water tank Volume: 2600L; Foam tank volume: 500L
Material: high quality carbon steel plate, anti-rust treatment.
Structure: welding, there is clapboard inner.
Equipment: 2 manholes, with speediness lock and turn on equipment.
2 overflow mechanisms
2 drainage exits

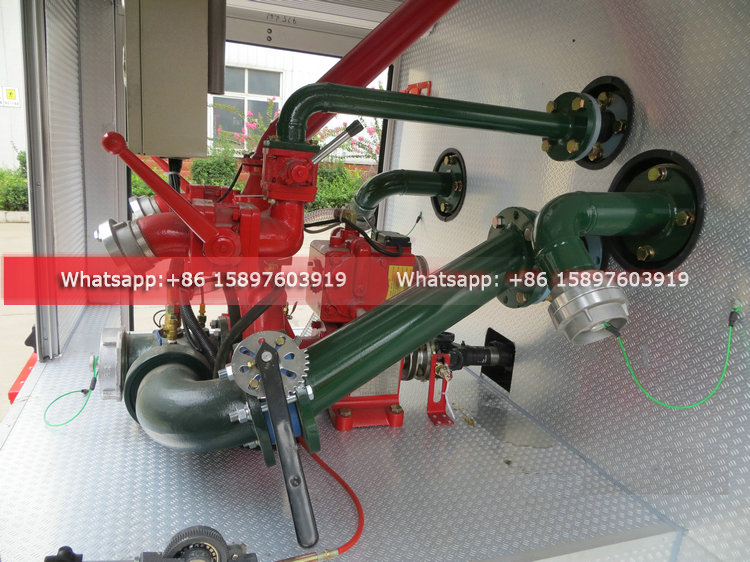

Fire fighting pump and pipeline system
Model of Fire fighting pump: CB10/30 Centrifu gal pump
Pressure: 1.0Mpa
Flux: 30L/s
Suction depth: ≥7m
Suction time: ≤35s
Installing type: central or rear
Delivery outlet (B/S type) : Ø65mm(2 1/2 inch)
Suction inlet :100mm (4inch) both side
Water tank inlet: Ø65mm(2 1/2 inch)
Fire fighting nozzle
Model: PS30
Range: water≥55m
Foam≥40m
Pressure: 1.0Mpa.
Rotation angle of fire fighting ;360
PTO
Sandwich PTO, splashing-type lubricate, can put out fire when driving.
Material of
carriage
Carriage is made of high quality steel and Aluminum embossed sheet

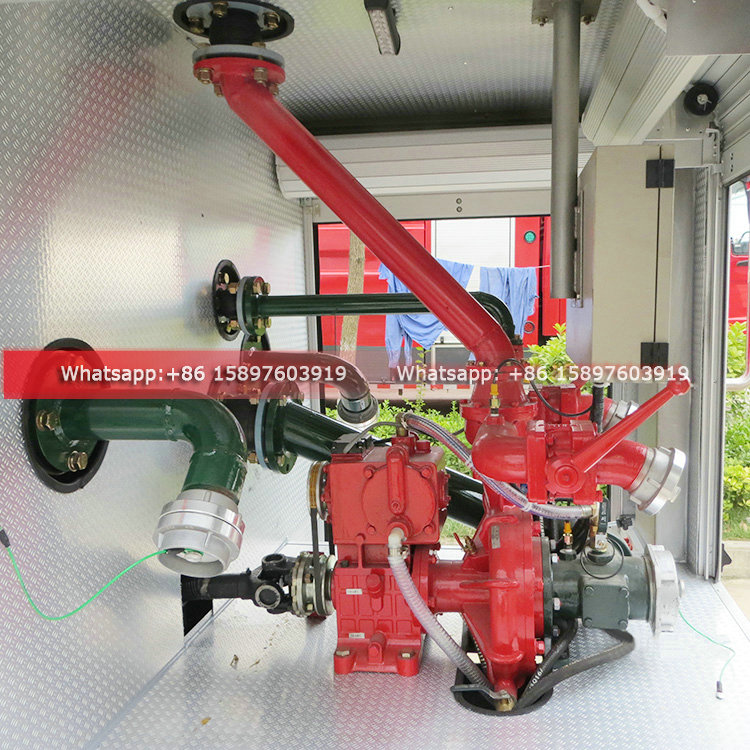

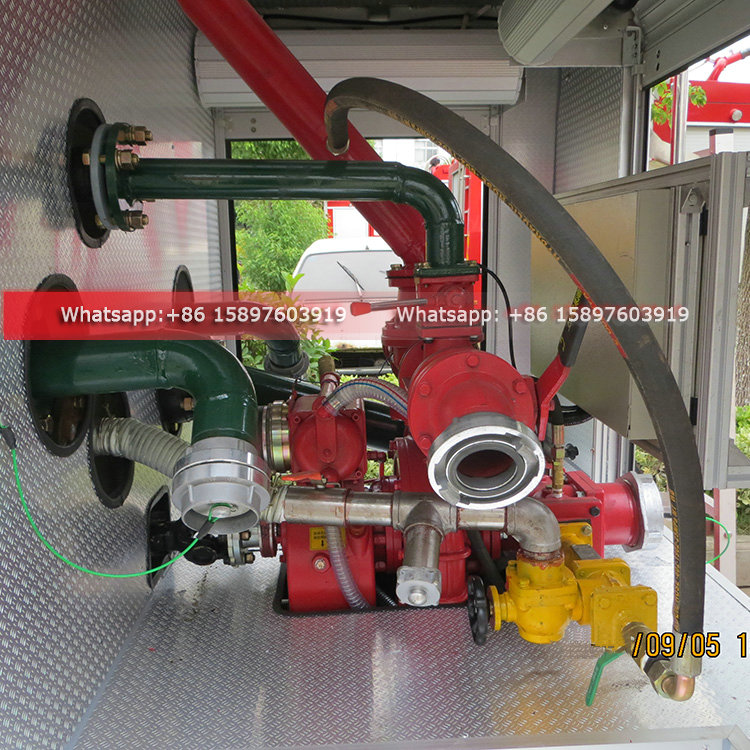

Pump room
Central or rear type, there are pump system and pipeline, reasonable structure. Easily operate all meters and operate-switch.
Equipment box
Equipment box: at the back of carriage, there is two-layers clapboard, can store equipment. There is safe ladder to up and down on
the back of equipment box.
Structure: whole frame is welded to ensure intension and rigidity.
Material: frame is high quality steel, inner plague is aluminum embossed sheet, surface is anodic processed.
Rolling shutter
door
Light and high quality aluminum alloy rolling shutter door, neatly open and close, good seal, low noise, beauty outside, and with
one set lock.
pedal
Adopt air-supporting structure to overturn, easily and safely lock.
Material is high quality Q235A, pedal is non-skid aluminum embossed sheet
Packing & Delivery

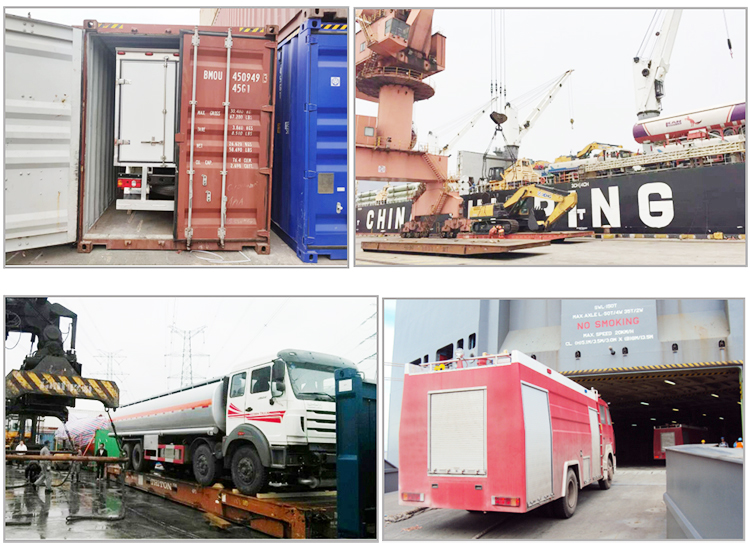

Waxed before delivery, shipping by Container, RORO, Bulk Shipment, flat rack.
Cheaper Price NKR ISUZU Mini Fire Truck 3Tons Water Tanker Fire Fighting Truck for Sales

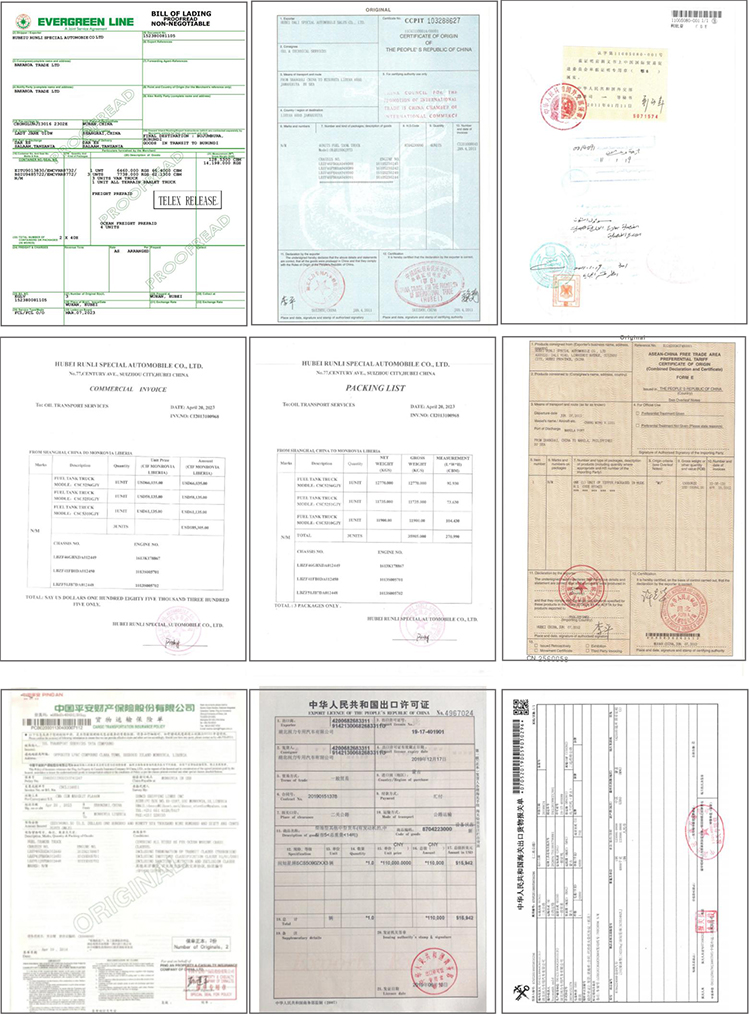

Export Document for Our Trucks
Bill oF Loading
Certificate of Origin Embassy certification documents
insurance policy
Commercial invoice
Packing list
Export License Vehicle
Export Declaration Form
Cheaper Price NKR ISUZU Mini Fire Truck 3Tons Water Tanker Fire Fighting Truck for Sales
FAQ
Q:warranty?
A:One year.

Q:Do you have ISO certificate?
A:we have,please contact us to get our certificates.

Q:How about the delivery time?
A: Most of our trucks have stock ,we can deliver to you within 7 days, if specially ordered , normally we need around 25-30 days
for production.

Q: How many units of truck does your factory produce per year?
A:Almost 3000 units.Nearly 500units per month.

Q: How do you control the quality of product?
A:Our Factory has standard production workshop,gets ISO CCC BV certificates,our workers are well trained. Every unit of product
undergoes a rigorous inspection process.

Q: How about your product after-sales service system?
A:Our main export countries have accepted after-sales
service,some countries use the third party service.

Q: Do you accept custom order? What’s is your MOQ order?
A:our MOQ is 1 unit.

Q: What’s the payment terms?
A:By T/T or L/C at sight.

Q: How about shipment?
A:20FT container, 40FT container,40FT high container,
open-top container,flat bed container,Ro-Ro ship or bulk
ship according to the size the products.
Company Profile
Cheaper Price NKR ISUZU Mini Fire Truck 3Tons Water Tanker Fire Fighting Truck for Sales

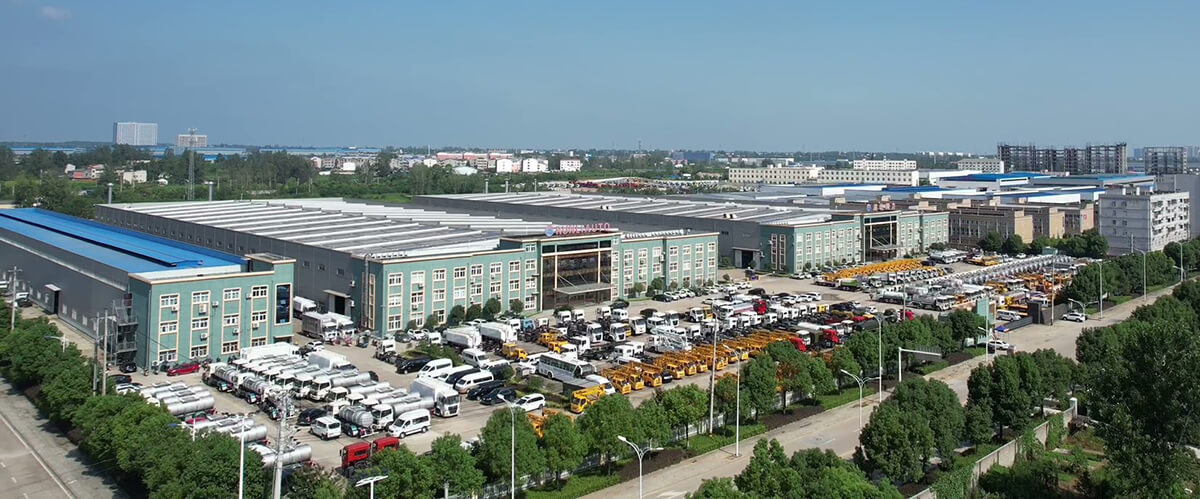

Hubei Runli Special Automobile Co., Ltd. is located in Suizhou City, which is China special automobile industry city. Our company covers an area of more than 166,000 square meters. We focus on the production of special automobile with export rights authorized
by the Ministry of Information Industry and Ministry of Commerce. Our company is licensed as the first tanker pressure manufacturer by AQSIQ and is the only private enterprise which gets military quality system certification. Our company is also the
"100 key Enterprises in Hubei Province" and "Hubei Province Two Safety Standards Enterprise".
Hubei Runli Special Automobile Co., Ltd. is a special automobile corporation which integrates research, manufacture, and service
in one. Our company has 300 types of special vehicles in more than ten series including tank trucks, fire trucks, mobile machinery
shops, sprinklers, semi-trailers, pressure vessels, and more.

Our Client:
Our company's products have been exported to different countries and regions, including Central America: the Republic of Costa Rica, Panama Republic, Trinidad and DOPA Republic. South America: the Republic of Columbia, the Republic of Venezuela, the Republic of Ecuador, Peru, the Republic of Bolivia, Chile, the Republic of Paraguay.

Africa: Ethiopia, Angola, Botswana, Burundi, Equatorial Guinea, Togo, Gambia, Republic of the Congo, Djibouti, Guinea, Ghana, Gabon, Zimbabwe, Cameroon, Equatorial Guinea, Kenya and Liberia, Rwanda, Madagascar, Mali, Mozambique, Namibia, Nigeria, Sierra
Leone, Somalia, Tanzania, Uganda and Zambia.

Asia: the United Arab Emirates, Philippines, Cambodia, Qatar, Kyrgyzstan, Mongolia, old tart, Turkmenistan, Kazakhstan,Tajikistan, Georgia, Uzbekistan, Afghanistan, Vietnam, Myanmar, Bangladesh. Papua: Oceania New Guinea, Fiji, Kiribati, Nauru,
etc..

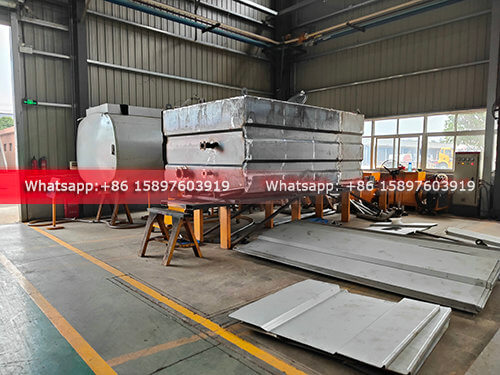

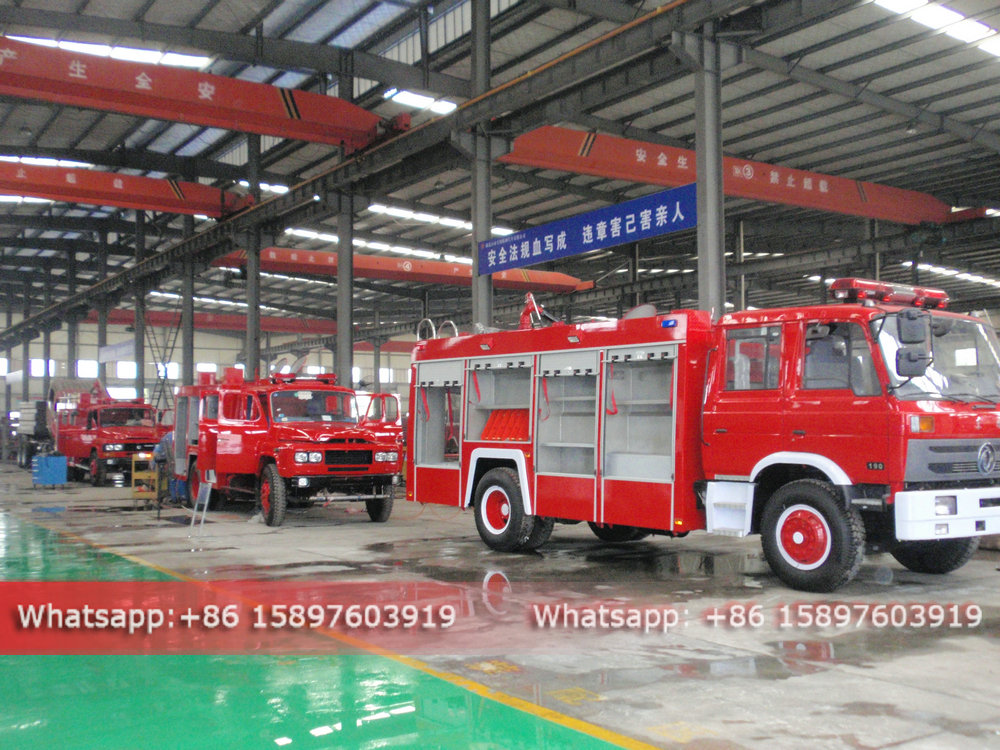

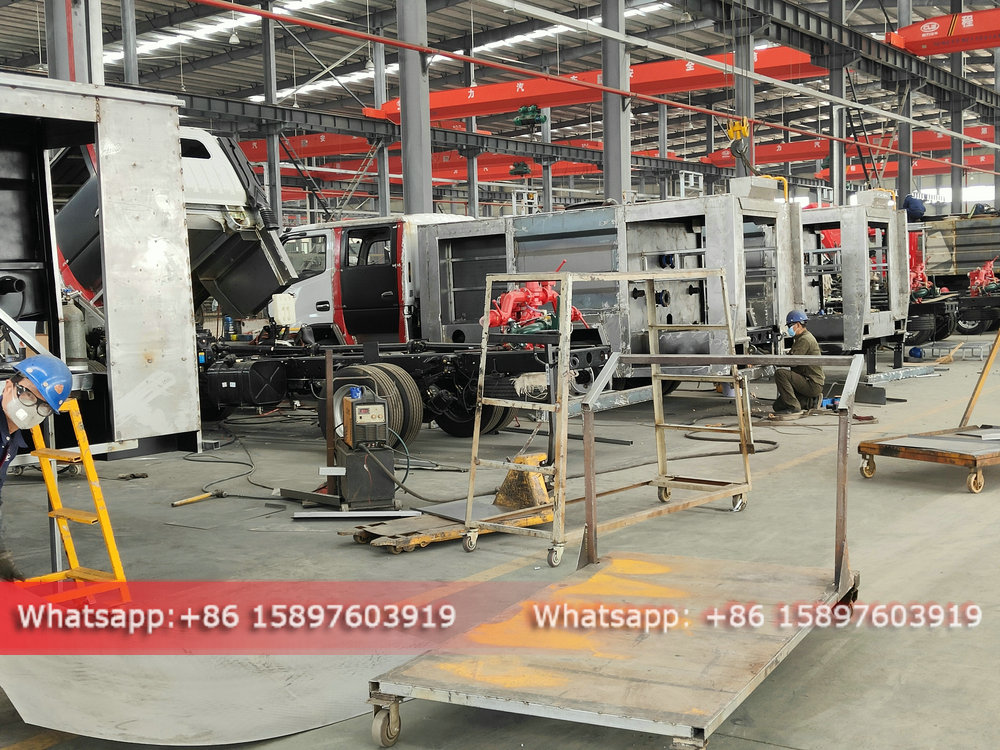

Our Factory Workshop
Cheaper Price NKR ISUZU Mini Fire Truck 3Tons Water Tanker Fire Fighting Truck for Sales
Cheaper Price NKR ISUZU Mini Fire Truck 3Tons Water Tanker Fire Fighting Truck for Sales
Cheaper Price NKR ISUZU Mini Fire Truck 3Tons Water Tanker Fire Fighting Truck for Sales
Cheaper Price NKR ISUZU Mini Fire Truck 3Tons Water Tanker Fire Fighting Truck for Sales
